SMART Board M787 87-inch Interactive Whiteboard – SBM787 — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
SMART · SBM787 · Interactive Flat Panel

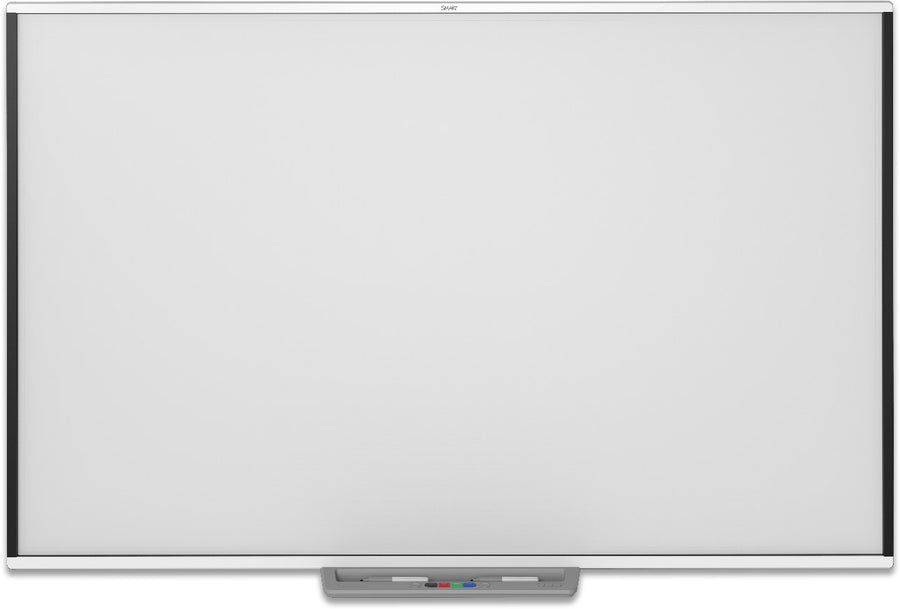

SMART Board M787 87-inch Interactive Whiteboard – SBM787

SMART Board M787 87-inch Interactive Whiteboard – SBM787

The SMART Board M787 (model SBM787) is an 87-inch interactive whiteboard with a 16:10 projection area of 1875 x 1171 mm, for large classrooms, lecture halls and boardrooms. It uses infrared touch for up to 20 simultaneous touches and two users, and includes SMART Notebook software. Procure.ae supplies the SBM787 in the UAE.

The M787 has an 87-inch board with a 16:10 projection area of 1875 x 1171 mm and a durable hard-coated steel surface optimized for projection. Its Advanced IR touch layer supports up to 20 simultaneous touches for two users, and Object Awareness distinguishes between pen, finger, eraser and palm. The digitizing resolution is approximately 32,767 x 32,767, and the surface is compatible with dry-erase markers.

The board connects to a Windows or Mac computer over a full-speed USB 2.0 connection at 12 Mbps and draws its power from that cable, so it needs no separate power supply. SMART Notebook, SMART Ink and SMART Product Drivers are included. The 87-inch board measures 1953 x 1262 x 136 mm, weighs 15 kg and carries a three-year limited equipment warranty. It operates between 5 and 35 °C.

Screen Size
87 inch
Touch Technology
Infrared
Type
Interactive Whiteboard
Weight
15 kg

Key features

01
87-inch 16:10 board
Projection area of 1875 x 1171 mm, with a hard-coated steel surface.
02
20-point infrared touch
Up to 20 simultaneous touches for up to two users.
03
Object Awareness
Distinguishes between pen, finger, eraser and palm.
04
Dry-erase compatible surface
Works with dry-erase markers on a steel surface.
05
Optimized for projection
Designed to be used with a projector.
06
SMART Notebook included
SMART Notebook, SMART Ink and SMART Product Drivers come with the board.
07
Three-year limited warranty
SMART equipment warranty for three years, with terms at smarttech.com/warranty.
08
Digitizing resolution
Approximately 32,767 x 32,767, with USB 2.0 full-speed connection.

Specifications

General
Key Features87-inch 16:10 board, 20-point infrared touch for two users, Object Awareness, Dry-erase compatible steel surface, Optimized for projection, SMART Notebook included, Three-year limited warranty
ModelSBM787
TypeInteractive Whiteboard
What's in the BoxSMART Notebook, SMART Ink and SMART Product Drivers
Display
Aspect Ratio16:10
Projection Size1875 x 1171 mm
Screen Size87 inch
Touch Points20-point multi-touch (two users)
Touch TechnologyInfrared
Connectivity
ConnectivityUSB 2.0 full-speed (12 Mbps)
Power
Power Consumption< 2.5 W (powered over USB)
Physical
ColorWhite
Dimensions1953 x 1262 x 136 mm
FinishHard-coated steel surface
Operating HumidityUp to 80% RH, non-condensing
Operating Temperature5 to 35 °C
Shipping Dimensions2069 x 1473 x 92 mm
Shipping Weight24 kg
Weight15 kg
Compliance
CertificationsCE, UKCA, LVD, EMCD, REACH, POP, RoHS, WEEE, EAC
Warranty3 years
QR code to SMART Board M787 87-inch Interactive Whiteboard – SBM787 on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
