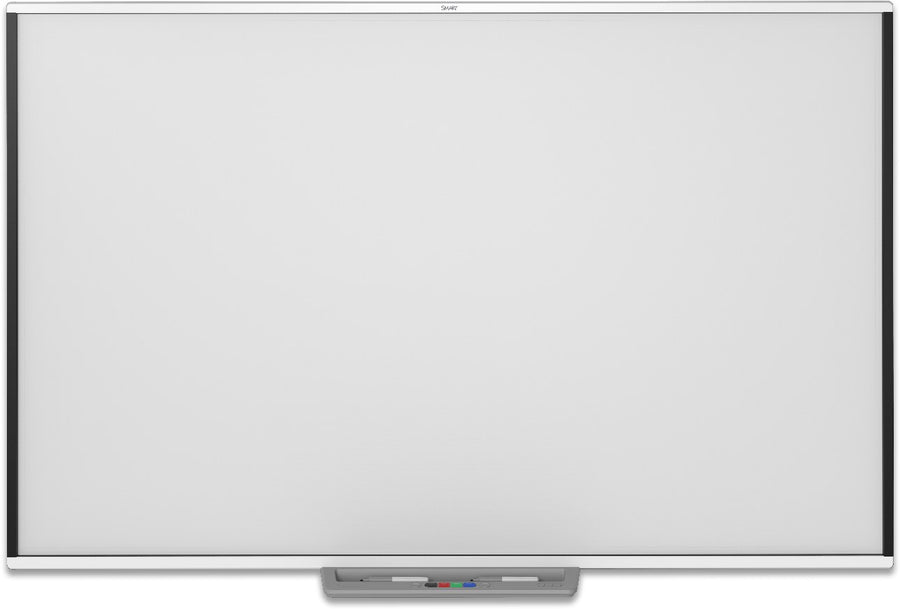

SMART Board SBM794V-169 94-inch interactive whiteboardSMART

SMART Board M700 Series 94-inch Interactive Whiteboard – SBM794V-169

The SMART Board SBM794V-169 is a 94-inch, 16:9 interactive whiteboard from SMART's M700 series. It supports 20-point multi-touch with object-aware infrared touch, and SMART Notebook, SMART Ink and SMART Product Drivers are included. Procure.ae supplies the SBM794V-169 in the UAE, with quotes, delivery and installation.

The SBM794V-169 uses advanced infrared touch with object awareness, so the board can tell a pen, finger, eraser and palm apart. It supports up to 20 simultaneous touches and up to two users, with an approximate touch digitizing resolution of 32,767 x 32,767. Users can write and erase digital ink, perform mouse functions and use gestures. The hard-coated steel surface is optimised for projection and compatible with dry-erase markers.

The SBM794V-169 connects to a Windows or Mac computer through a full-speed USB 2.0 cable and takes its power from that connection. SMART Notebook, SMART Ink and SMART Product Drivers are included. With a 16:9 projection area of 208.3 x 117.2 cm, it suits classrooms, meeting rooms and training rooms that project onto a large writing surface. The manufacturer's specifications list the same dimensions, projection area and features for the SBM794-169.

Screen Size
94 inch
Touch Technology
Infrared
Type
Interactive Whiteboard
Weight
18 kg
  • Object-aware infrared touch
  • 20-point multi-touch
  • Digital ink tools
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Object-aware infrared touch
Distinguishes between a pen, finger, eraser and palm.
02
20-point multi-touch
Supports up to 20 simultaneous touches and up to two users.
03
Digital ink tools
Write and erase digital ink, perform mouse functions and use gestures.
04
Projection surface
Hard-coated steel surface optimised for projection and dry-erase markers.
05
16:9 projection area
208.3 x 117.2 cm projection area in a 16:9 aspect ratio.
06
Included software
SMART Notebook, SMART Ink and SMART Product Drivers are included.
07
USB connection
Full-speed USB 2.0 (12 Mbps) link to a Windows or Mac computer, which also supplies power.
08
Three-year warranty
SMART lists a three-year limited equipment warranty.

Specifications

24 specifications
General
CompatibilityWindows and Mac computers
Key FeaturesObject-aware infrared touch, 20 simultaneous touches, up to two users, SMART Notebook included, hard-coated steel surface, dry-erase marker compatible, 3-year warranty, USB 2.0 computer connection
ModelSBM794V-169
TypeInteractive Whiteboard
Display
Aspect Ratio16:9
Projection Size2083 x 1172 mm
Screen Size94 inch
Touch Points20-point multi-touch
Touch ResolutionApproximately 32,767 x 32,767
Touch TechnologyInfrared
Performance
Storage Conditions-20 to 60 °C
Connectivity
ConnectivityUSB 2.0 full-speed (12 Mbps) computer connection
Power
Power Consumption< 2.5 W
Power SourceUSB from connected computer
Physical
ColorWhite
Dimensions2169 x 1262 x 136 mm
Operating HumidityUp to 80% RH, non-condensing
Operating Temperature5 to 35 °C
Shipping Dimensions2284 x 1473 x 92 mm
Shipping Weight27 kg
Surface ProtectionHard-coated steel, compatible with dry-erase markers
Weight18 kg
Compliance
CertificationsCE, UKCA, LVD, EMCD, REACH, POP, RoHS, WEEE, EAC
Warranty3 years

Questions

Can’t find your answer? Ask on WhatsApp

What size is the SMART Board SBM794V-169?
The SBM794V-169 is an 94-inch model with a 16:9 projection area measuring 208.3 x 117.2 cm. The steel surface is optimised for projection and compatible with dry-erase markers, which suits both projected lessons and handwritten notes.
Does the SBM794V-169 need a computer?
Yes. The board connects to a Windows or Mac computer over a full-speed USB 2.0 cable, and it takes its power from that connection. SMART Notebook, SMART Ink and SMART Product Drivers are included for use with the computer.
How many touches does the SBM794V-169 support?
It supports up to 20 simultaneous touches and up to two users. Its advanced infrared touch with object awareness distinguishes between a pen, a finger, an eraser and a palm, so the board can tell each input apart.
Is SMART Notebook included with the SBM794V-169?
Yes. SMART Notebook, SMART Ink and SMART Product Drivers are listed as included with the board. The board also supports writing and erasing digital ink, mouse functions and gestures, so the included software works alongside normal touch control.
What are the dimensions and weight of the SBM794V-169?
The SBM794V-169 measures 2169 x 1262 x 136 mm (width x height x depth) and weighs 18 kg, with a shipping weight of 27 kg. Allow for the 1262 mm height and 136 mm depth when planning the installation space.
