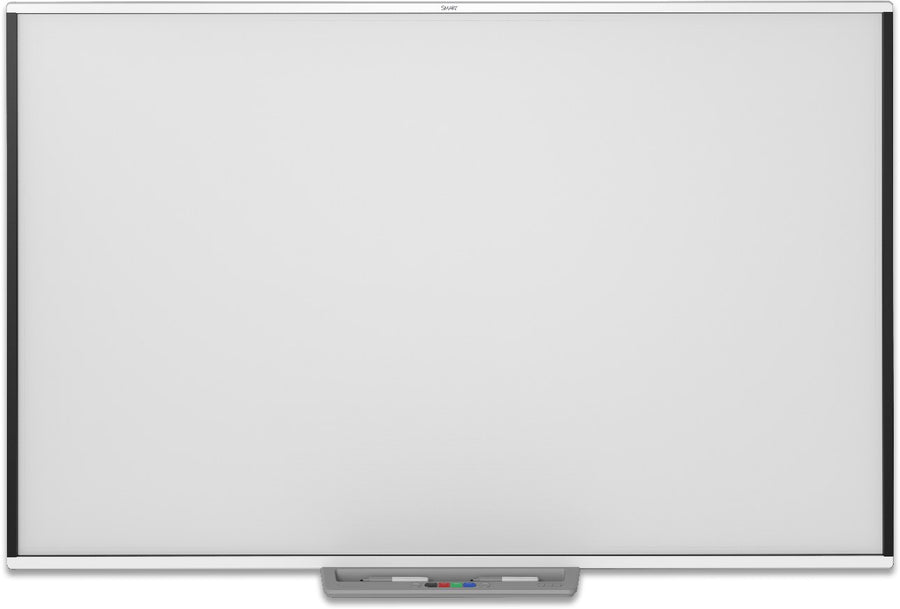

The SMART Board SBM794V-169 is a 94-inch, 16:9 interactive whiteboard from SMART's M700 series. It supports 20-point multi-touch with object-aware infrared touch, and SMART Notebook, SMART Ink and SMART Product Drivers are included. Procure.ae supplies the SBM794V-169 in the UAE, with quotes, delivery and installation.
The SBM794V-169 uses advanced infrared touch with object awareness, so the board can tell a pen, finger, eraser and palm apart. It supports up to 20 simultaneous touches and up to two users, with an approximate touch digitizing resolution of 32,767 x 32,767. Users can write and erase digital ink, perform mouse functions and use gestures. The hard-coated steel surface is optimised for projection and compatible with dry-erase markers.
The SBM794V-169 connects to a Windows or Mac computer through a full-speed USB 2.0 cable and takes its power from that connection. SMART Notebook, SMART Ink and SMART Product Drivers are included. With a 16:9 projection area of 208.3 x 117.2 cm, it suits classrooms, meeting rooms and training rooms that project onto a large writing surface. The manufacturer's specifications list the same dimensions, projection area and features for the SBM794-169.
| Compatibility | Windows and Mac computers |
| Key Features | Object-aware infrared touch, 20 simultaneous touches, up to two users, SMART Notebook included, hard-coated steel surface, dry-erase marker compatible, 3-year warranty, USB 2.0 computer connection |
| Model | SBM794V-169 |
| Type | Interactive Whiteboard |
| Aspect Ratio | 16:9 |
| Projection Size | 2083 x 1172 mm |
| Screen Size | 94 inch |
| Touch Points | 20-point multi-touch |
| Touch Resolution | Approximately 32,767 x 32,767 |
| Touch Technology | Infrared |
| Storage Conditions | -20 to 60 °C |
| Connectivity | USB 2.0 full-speed (12 Mbps) computer connection |
| Power Consumption | < 2.5 W |
| Power Source | USB from connected computer |
| Color | White |
| Dimensions | 2169 x 1262 x 136 mm |
| Operating Humidity | Up to 80% RH, non-condensing |
| Operating Temperature | 5 to 35 °C |
| Shipping Dimensions | 2284 x 1473 x 92 mm |
| Shipping Weight | 27 kg |
| Surface Protection | Hard-coated steel, compatible with dry-erase markers |
| Weight | 18 kg |
| Certifications | CE, UKCA, LVD, EMCD, REACH, POP, RoHS, WEEE, EAC |
| Warranty | 3 years |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
