SMARTInteractive Flat PanelsSKU SBM787V

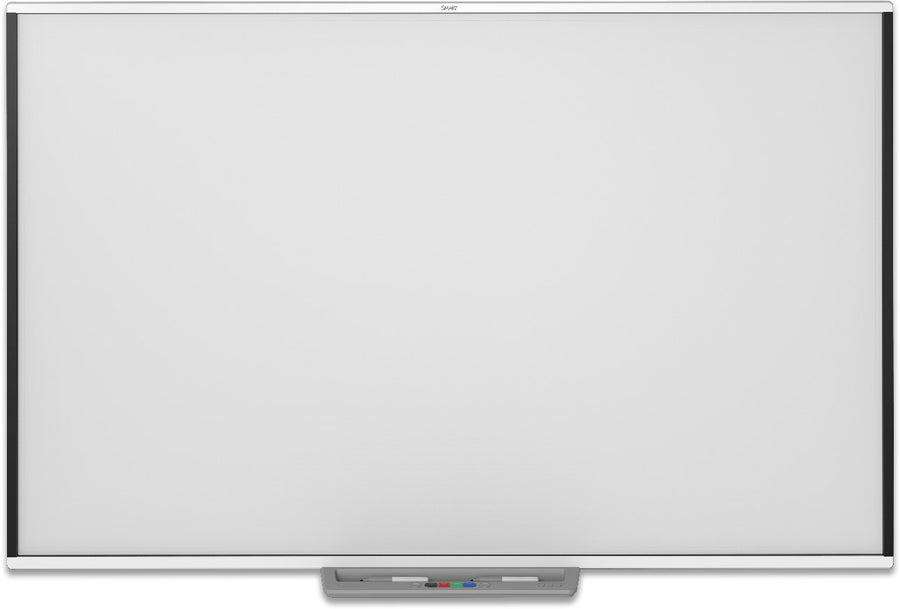

SMART Board M700 Series 87-inch Interactive Whiteboard – SBM787V
The SMART Board SBM787V is an 87-inch interactive whiteboard from the SMART Board M700 series, with a 16:10 projection area. It offers advanced infrared touch with up to 20 simultaneous touches and includes SMART Notebook software. Procure.ae supplies the SBM787V in the UAE, with quotes, delivery and installation.
The SBM787V uses advanced infrared touch with object awareness, so the board can tell a pen, finger, eraser and palm apart. It supports up to 20 simultaneous touches and up to two users, with an approximate touch digitizing resolution of 32,767 x 32,767. Users can write and erase digital ink, perform mouse functions and use gestures. The hard-coated steel surface is optimised for projection and compatible with dry-erase markers.
The SBM787V connects to a Windows or Mac computer through a full-speed USB 2.0 cable and takes its power from that connection. SMART Notebook, SMART Ink and SMART Product Drivers are included. With a 16:10 projection area of 187.5 x 117.1 cm, it suits classrooms, meeting rooms and training rooms that project onto a large writing surface. For a 16:9 projection area at 94 inches, see the SBM794-169.
Screen Size
87 inch
Touch Technology
Infrared
Type
Interactive Whiteboard
Weight
15 kg
- Object-aware infrared touch
- 20-point multi-touch
- Digital ink tools
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Object-aware infrared touch
Distinguishes between a pen, finger, eraser and palm.
02
20-point multi-touch
Supports up to 20 simultaneous touches and up to two users.
03
Digital ink tools
Write and erase digital ink, perform mouse functions and use gestures.
04
Projection surface
Hard-coated steel surface optimised for projection and dry-erase markers.
05
16:10 projection area
187.5 x 117.1 cm projection area in a 16:10 aspect ratio.
06
Included software
SMART Notebook, SMART Ink and SMART Product Drivers are included.
07
USB connection
Full-speed USB 2.0 (12 Mbps) link to a Windows or Mac computer, which also supplies power.
08
Three-year warranty
SMART lists a three-year limited equipment warranty.
Specifications
24 specificationsGeneral
CompatibilityWindows and Mac computers
Key FeaturesObject-aware infrared touch, 20 simultaneous touches, up to two users, SMART Notebook included, hard-coated steel surface, dry-erase marker compatible, 3-year warranty, USB 2.0 computer connection
ModelSBM787V
TypeInteractive Whiteboard
Display
Aspect Ratio16:10
Projection Size1875 x 1171 mm
Screen Size87 inch
Touch Points20-point multi-touch
Touch ResolutionApproximately 32,767 x 32,767
Touch TechnologyInfrared
Performance
Storage Conditions-20 to 60 °C
Connectivity
ConnectivityUSB 2.0 full-speed (12 Mbps) computer connection
Power
Power Consumption< 2.5 W
Power SourceUSB from connected computer
Physical
ColorWhite
Dimensions1953 x 1262 x 136 mm
Operating HumidityUp to 80% RH, non-condensing
Operating Temperature5 to 35 °C
Shipping Dimensions2069 x 1473 x 92 mm
Shipping Weight24 kg
Surface ProtectionHard-coated steel, compatible with dry-erase markers
Weight15 kg
Compliance
CertificationsCE, UKCA, LVD, EMCD, REACH, POP, RoHS, WEEE, EAC
Warranty3 years
Downloads
Manufacturer documents for the SMART Board M700 Series 87-inch Interactive Whiteboard – SBM787V — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What size is the SMART Board SBM787V?
The SBM787V is an 87-inch model with a 16:10 projection area measuring 187.5 x 117.1 cm. The steel surface is optimised for projection and compatible with dry-erase markers, which suits both projected lessons and handwritten notes.
Does the SBM787V need a computer?
Yes. The board connects to a Windows or Mac computer over a full-speed USB 2.0 cable, and it takes its power from that connection. SMART Notebook, SMART Ink and SMART Product Drivers are included for use with the computer.
How many touches does the SBM787V support?
It supports up to 20 simultaneous touches and up to two users. Its advanced infrared touch with object awareness distinguishes between a pen, a finger, an eraser and a palm, so the board can tell each input apart.
Is SMART Notebook included with the SBM787V?
Yes. SMART Notebook, SMART Ink and SMART Product Drivers are listed as included with the board. The board also supports writing and erasing digital ink, mouse functions and gestures, so the included software works alongside normal touch control.
What are the dimensions and weight of the SBM787V?
The SBM787V measures 1953 x 1262 x 136 mm (width x height x depth) and weighs 15 kg, with a shipping weight of 24 kg. Allow for the 1262 mm height and 136 mm depth when planning the installation space.
