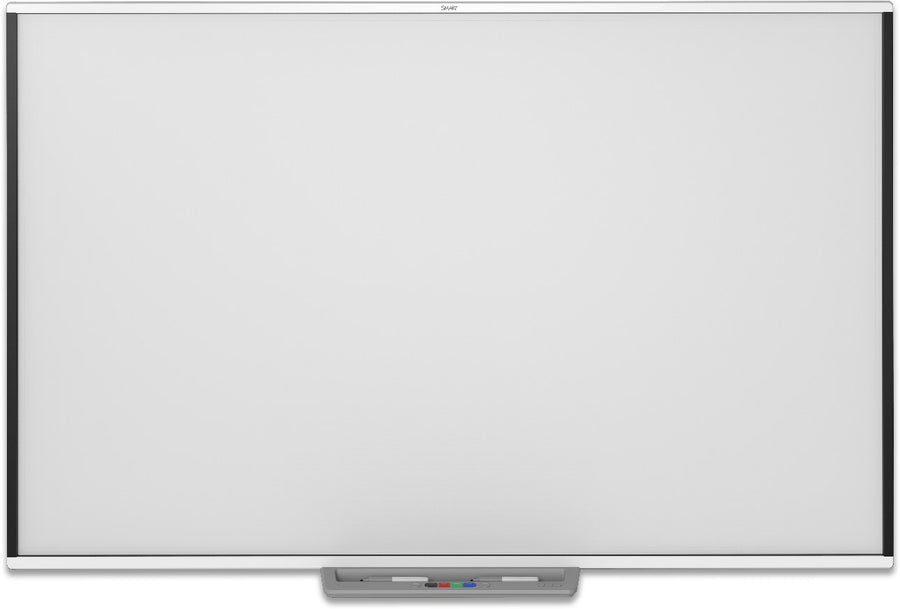

SMART Board M700 Series 87-inch Interactive Whiteboard – SBM787V

The SMART Board SBM787V is an 87-inch interactive whiteboard from the SMART Board M700 series, with a 16:10 projection area. It offers advanced infrared touch with up to 20 simultaneous touches and includes SMART Notebook software. Procure.ae supplies the SBM787V in the UAE, with quotes, delivery and installation.

The SBM787V uses advanced infrared touch with object awareness, so the board can tell a pen, finger, eraser and palm apart. It supports up to 20 simultaneous touches and up to two users, with an approximate touch digitizing resolution of 32,767 x 32,767. Users can write and erase digital ink, perform mouse functions and use gestures. The hard-coated steel surface is optimised for projection and compatible with dry-erase markers.

The SBM787V connects to a Windows or Mac computer through a full-speed USB 2.0 cable and takes its power from that connection. SMART Notebook, SMART Ink and SMART Product Drivers are included. With a 16:10 projection area of 187.5 x 117.1 cm, it suits classrooms, meeting rooms and training rooms that project onto a large writing surface. For a 16:9 projection area at 94 inches, see the SBM794-169.

Screen Size

87 inch

Touch Technology

Infrared

Type

Interactive Whiteboard

Weight

15 kg

Key features

Object-aware infrared touch

Distinguishes between a pen, finger, eraser and palm.

20-point multi-touch

Supports up to 20 simultaneous touches and up to two users.

Digital ink tools

Write and erase digital ink, perform mouse functions and use gestures.

Projection surface

Hard-coated steel surface optimised for projection and dry-erase markers.

16:10 projection area

187.5 x 117.1 cm projection area in a 16:10 aspect ratio.

Included software

SMART Notebook, SMART Ink and SMART Product Drivers are included.

USB connection

Full-speed USB 2.0 (12 Mbps) link to a Windows or Mac computer, which also supplies power.

Three-year warranty

SMART lists a three-year limited equipment warranty.

Specifications

General
Compatibility	Windows and Mac computers
Key Features	Object-aware infrared touch, 20 simultaneous touches, up to two users, SMART Notebook included, hard-coated steel surface, dry-erase marker compatible, 3-year warranty, USB 2.0 computer connection
Model	SBM787V
Type	Interactive Whiteboard

Display
Aspect Ratio	16:10
Projection Size	1875 x 1171 mm
Screen Size	87 inch
Touch Points	20-point multi-touch
Touch Resolution	Approximately 32,767 x 32,767
Touch Technology	Infrared

Performance
Storage Conditions	-20 to 60 °C

Connectivity
Connectivity	USB 2.0 full-speed (12 Mbps) computer connection

Power
Power Consumption	< 2.5 W
Power Source	USB from connected computer

Physical
Color	White
Dimensions	1953 x 1262 x 136 mm
Operating Humidity	Up to 80% RH, non-condensing
Operating Temperature	5 to 35 °C
Shipping Dimensions	2069 x 1473 x 92 mm
Shipping Weight	24 kg
Surface Protection	Hard-coated steel, compatible with dry-erase markers
Weight	15 kg

Compliance
Certifications	CE, UKCA, LVD, EMCD, REACH, POP, RoHS, WEEE, EAC
Warranty	3 years
