SMARTInteractive Flat PanelsSKU GX086-V3

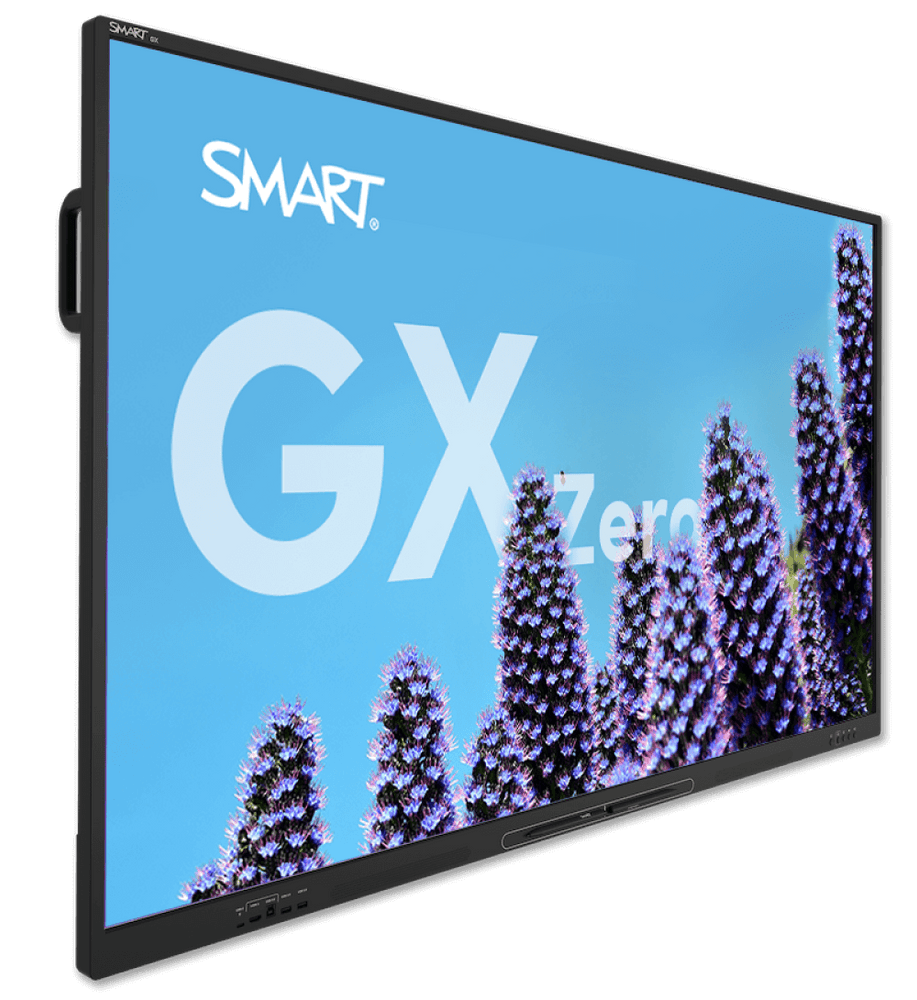

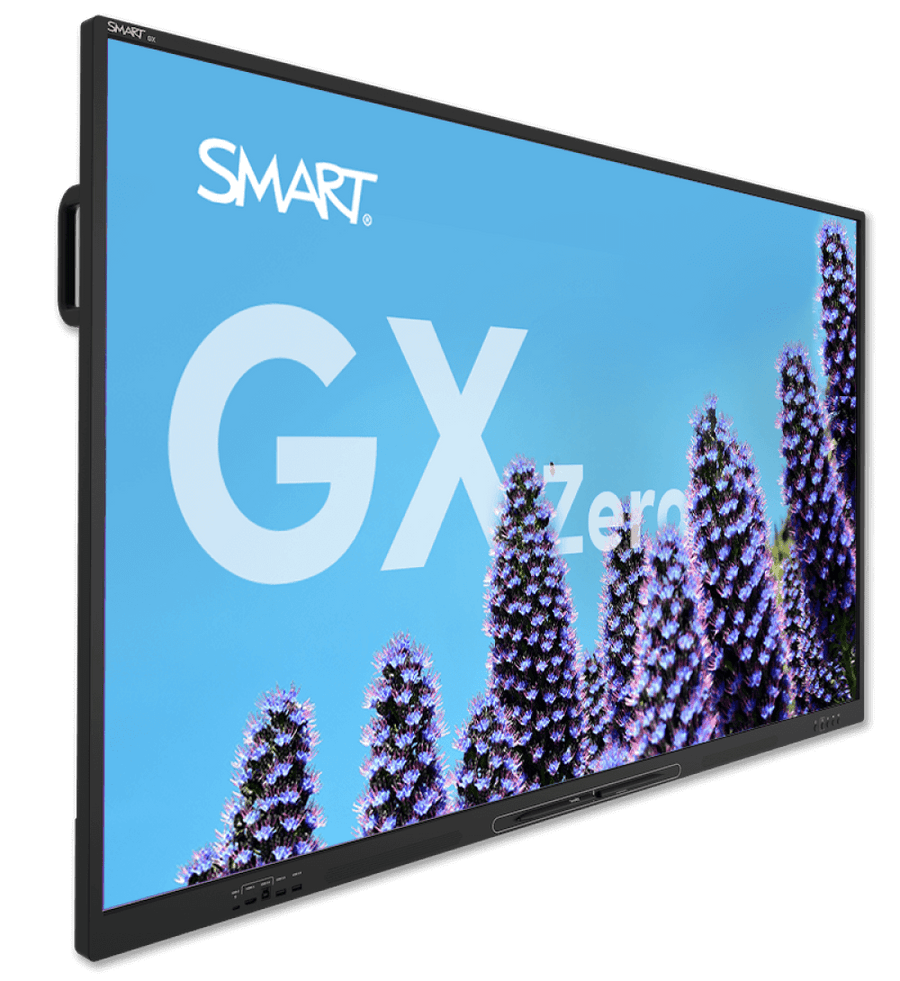

SMART Board GX086-V3 interactive display
The SMART Board GX086-V3 interactive display is a interactive flat panel available in the UAE from Procure.ae.
Experience the next generation of classroom and office collaboration with the SMART Board GX086-V3 interactive display . Designed for seamless interaction, this advanced touchscreen display transforms any space into a dynamic, engaging environment. With its ultra-responsive 4K Ultra HD resolution, the SMART Board GX086-V3 delivers crystal-clear visuals and vibrant colors for presentations, lessons, and brainstorming sessions. The intuitive multi-touch technology ensures effortless navigation and natural writing, while built-in wireless connectivity supports device integration for easy screen.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 86-Inch 4K UHD Display
- Multi-Touch Capability
- Integrated Android OS
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
86-Inch 4K UHD Display
Ultra-high-definition resolution for stunning image clarity and lifelike color reproduction.
02
Multi-Touch Capability
Supports up to 20 touch points for simultaneous collaboration and interactive activities.
03
Integrated Android OS
User-friendly Android interface enables easy access to apps and tools directly from the display.
04
Wireless Screen Sharing
Effortlessly connect and mirror devices for seamless presentations and content sharing.
05
Smart Ink Technology
Write, draw, and annotate with precision, even over web pages and applications.
06
Robust Connectivity
Multiple HDMI, USB, and network ports for versatile device integration.
07
Energy-Efficient Design
Engineered for low power consumption and long-lasting performance.
08
Anti-Glare Glass
Reduces reflections for comfortable viewing in any lighting condition.
Specifications
47 specificationsGeneral
Key FeaturesPalm rejection, Pen and touch differentiation, Sensors: Ambient light, Infrared
What's in the BoxPower cable × 1, USB 2.0 A to B cable × 1, USB Type-C cable × 1, Pens × 2, Remote control × 1, AAA batteries × 2, Installation instructions × 1, Important information document × 1
Display
Aspect Ratio16:9
BacklightLED
Brightness400 nits
Color Depth10-bit (1.07 billion colours)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Accuracy±1 mm
Touch Points40-point multi-touch
Touch Resolution32768 x 32768
Touch Response Time≤ 8 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemNo embedded OS
ProcessorQuad-core
RAM8 GB
Storage64 GB
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
DisplayPortDisplayPort 1.2 × 1 (rear)
Speaker Output2 × 20 W
Speaker TypeBuilt-in
Connectivity
BluetoothBluetooth 5.0
EthernetRJ45 (Gigabit) × 2
HDMI InputsHDMI In (HDMI 2.0) × 3
HDMI OutputsHDMI Out × 1
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOptional
Serial PortRS-232 × 1
Touch USB PortsTouch USB 2.0 × 2
USB PortsUSB-A 3.2 Gen 1 × 4, USB-A 2.0 × 1
USB-C PortsUSB-C (USB 3.2 Gen 1, DP Alt Mode, audio, touch, 4K @ 60 Hz, 15 W charging)
VGA InputVGA × 1 (Rear)
Wi-FiWi-Fi 6 (802.11ax), 2.4/5 GHz
Power
Power Consumption< 119 W
Standby Power< 0.5 W
Physical
Dimensions1963 x 1171 x 88 mm
Operating Humidity20% to 80% RH
Operating Temperature0°C to 40°C
Shipping Dimensions2165 x 1445 x 160 mm
Shipping Weight90 kg
Surface ProtectionAnti-glare smooth glass
VESA Mount800 x 600 mm
Weight65 kg
Downloads
Manufacturer documents for the SMART Board GX086-V3 interactive display — datasheets, manuals, drawings and certificates.
- Datasheet – SMART Board GX Zero series – SMART-GX-Zero-series-en-gb
- Datasheet – SMART Board GX Zero series – SMART-GX-Zero-series-en
- Datasheet – SMART Board GX Zero series – specssbidgxzero
- Brochure – SMART Board GX Zero series – SMART-interactive-display-GX-Zero-brochure-en
- Brochure – SMART Board GX Zero series – SMART-interactive-display-GX-Zero-brochure-engb
- User manual – SMART Board GX Zero series
- Installation guide – SMART Board GX Zero series
Questions
Can’t find your answer? Ask on WhatsApp
What is the SMART interactive flat panel used for?
Experience the next generation of classroom and office collaboration with the SMART Board GX086-V3 interactive display . Designed for seamless interaction, this advanced touchscreen display transforms any space into a dynamic, engaging environment. With its ultra-responsive 4K Ultra HD resolution,.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 13, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
