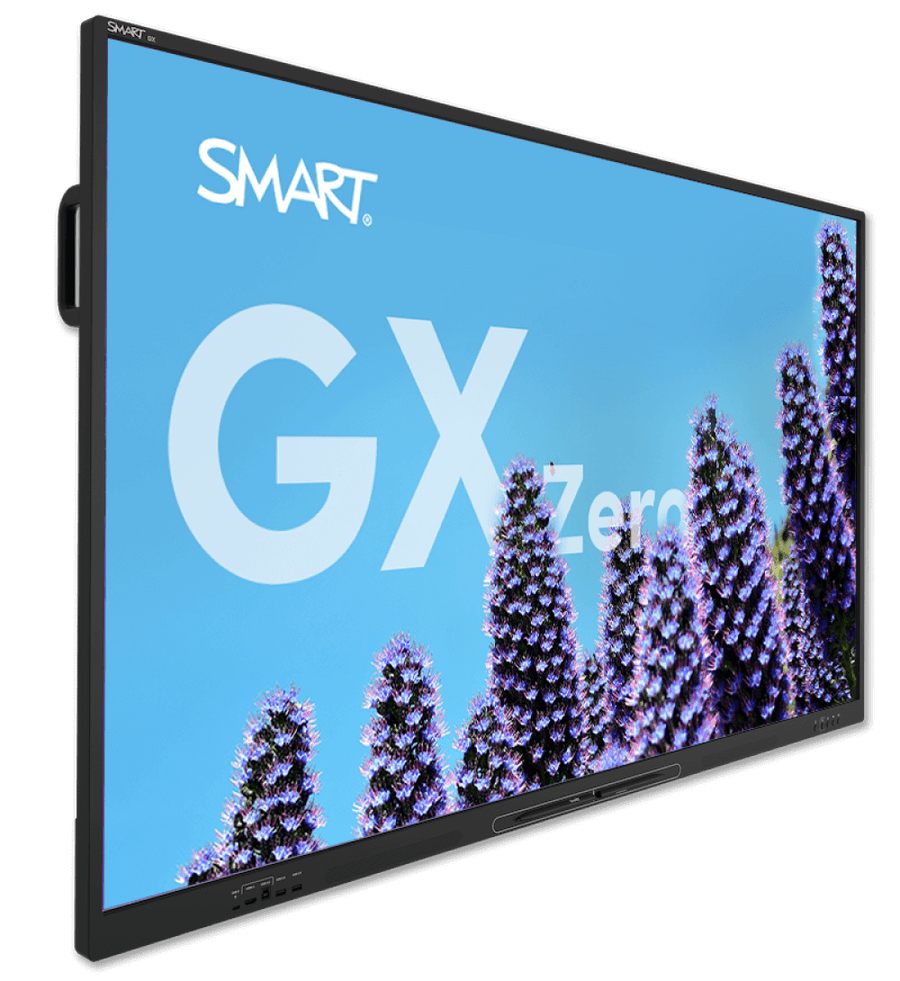

SMART Board GX086-V3 interactive display
The SMART Board GX086-V3 interactive display is a interactive flat panel available in the UAE from Procure.ae.
Experience the next generation of classroom and office collaboration with the SMART Board GX086-V3 interactive display . Designed for seamless interaction, this advanced touchscreen display transforms any space into a dynamic, engaging environment. With its ultra-responsive 4K Ultra HD resolution, the SMART Board GX086-V3 delivers crystal-clear visuals and vibrant colors for presentations, lessons, and brainstorming sessions. The intuitive multi-touch technology ensures effortless navigation and natural writing, while built-in wireless connectivity supports device integration for easy screen.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key features
Specifications
| Key Features | Palm rejection, Pen and touch differentiation, Sensors: Ambient light, Infrared |
| What's in the Box | Power cable × 1, USB 2.0 A to B cable × 1, USB Type-C cable × 1, Pens × 2, Remote control × 1, AAA batteries × 2, Installation instructions × 1, Important information document × 1 |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | 400 nits |
| Color Depth | 10-bit (1.07 billion colours) |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 86 inch |
| Touch Accuracy | ±1 mm |
| Touch Points | 40-point multi-touch |
| Touch Resolution | 32768 x 32768 |
| Touch Response Time | ≤ 8 ms |
| Touch Technology | Infrared |
| Viewing Angle | 178° (H) / 178° (V) |
| Operating System | No embedded OS |
| Processor | Quad-core |
| RAM | 8 GB |
| Storage | 64 GB |
| Audio In | Audio in × 1 |
| Audio Out | Audio out × 1 |
| DisplayPort | DisplayPort 1.2 × 1 (rear) |
| Speaker Output | 2 × 20 W |
| Speaker Type | Built-in |
| Bluetooth | Bluetooth 5.0 |
| Ethernet | RJ45 (Gigabit) × 2 |
| HDMI Inputs | HDMI In (HDMI 2.0) × 3 |
| HDMI Outputs | HDMI Out × 1 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | Optional |
| Serial Port | RS-232 × 1 |
| Touch USB Ports | Touch USB 2.0 × 2 |
| USB Ports | USB-A 3.2 Gen 1 × 4, USB-A 2.0 × 1 |
| USB-C Ports | USB-C (USB 3.2 Gen 1, DP Alt Mode, audio, touch, 4K @ 60 Hz, 15 W charging) |
| VGA Input | VGA × 1 (Rear) |
| Wi-Fi | Wi-Fi 6 (802.11ax), 2.4/5 GHz |
| Power Consumption | < 119 W |
| Standby Power | < 0.5 W |
| Dimensions | 1963 x 1171 x 88 mm |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0°C to 40°C |
| Shipping Dimensions | 2165 x 1445 x 160 mm |
| Shipping Weight | 90 kg |
| Surface Protection | Anti-glare smooth glass |
| VESA Mount | 800 x 600 mm |
| Weight | 65 kg |
