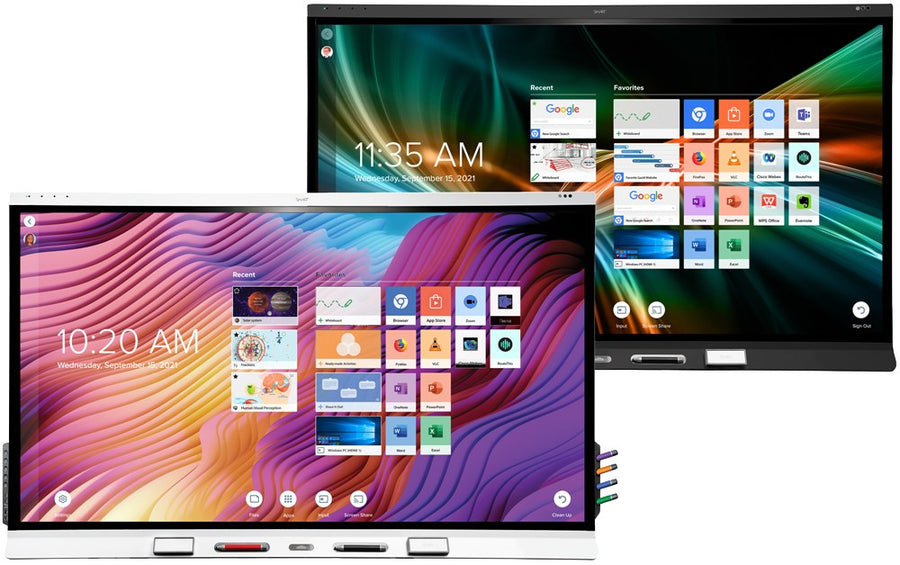

SMART Board 6586S-V3 Pro 86-inch Interactive Flat Panel – SBID-6586S-V3-P

Name: SMART Board 6586S-V3 Pro 86-inch Interactive Flat Panel – SBID-6586S-V3-P
Brand: SMART
SKU: SBID-6586S-V3-P
Availability: InStock

The SMART Board 6586S-V3 Pro is a 86-inch interactive flat panel for classrooms and business meeting rooms. It has 4K UHD (3840 x 2160) resolution, up to 40 touch points and Android 11 with the iQ built-in experience. Procure.ae supplies the SBID-6586S-V3-P across the UAE, with delivery and installation.

The 86-inch panel uses an LED backlight with a 16:9 aspect ratio, 3840 x 2160 (4K UHD) resolution and a 60 Hz refresh rate. Brightness is rated at 350 nits or more, the viewing angle is 178°, and the fully heat-tempered anti-glare glass resists smudges and fingerprints. HyPr Touch with InGlass supports up to 40 touch points (OS dependent) with ±1 mm accuracy, Pen ID, Silktouch and Pressure Sensitive Ink. Two integrated 20 W speakers and a linear four-microphone array handle audio, and the package includes two pens, two erasers and magnetic tool holders.

The panel runs Android 11 with 6 GB of RAM and 32 GB of storage, and includes SMART Notebook, SMART Ink and SMART Product Drivers, plus Google Drive and OneDrive access. It accepts SMART PCM OPS computing modules, offers dual-band Wi-Fi and Bluetooth 5.0, and has two RJ45 ports (1000BASE-T). Mount it with a 600 x 400 mm VESA pattern. At 86 inches it measures 2005 x 1221 x 124 mm and weighs 86 kg, the largest of the 6000S (V3) sizes.

Screen Size

86 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

≥ 350 nits

Type

Interactive Flat Panel

4K UHD display
40-point touch
Pen and tool input

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

4K UHD display

3840 x 2160 resolution at 60 Hz on a 16:9 LED-backlit panel with a 178° viewing angle.

40-point touch

Up to 40 touch points (OS dependent) with ±1 mm accuracy.

Pen and tool input

Pen ID, Silktouch and Pressure Sensitive Ink, with two pens and two erasers included.

Android 11 platform

iQ built-in Android experience with 6 GB RAM and 32 GB storage.

Integrated audio

Two integrated 20 W speakers and a linear four-microphone array.

NFC sign-in

Integrated RFID NFC reader/writer, with two SMART ID cards listed in the package contents.

Wired and wireless networking

Dual-band Wi-Fi 802.11 a/b/g/n/ac with 2 × 2 MIMO, Bluetooth 5.0 and two RJ45 ports.

VESA mounting

600 x 400 mm VESA pattern with M8 fixings, and a wall mount listed in the package contents.

Specifications

41 specifications

General

ControlsPower, home, volume, screen shade, freeze frame

Key FeaturesTAA compliant, 40-point multi-touch, Pen ID, NFC sign-in, iQ built-in Android, SMART Notebook included, 2 × 20 W speakers, automatic OTA updates

ModelSBID-6586S-V3-P

TypeInteractive Flat Panel

What's in the Box2 pens, 2 erasers, remote control, 3 external antennae, 2 SMART ID cards, USB cable, wall mount

Display

Aspect Ratio16:9

BacklightLED

Brightness≥ 350 nits

Refresh Rate60 Hz

Resolution3840 x 2160 (4K UHD)

Response Time≤ 8 ms

Screen Size86 inch

Touch Accuracy±1 mm

Touch Points40-point multi-touch (OS dependent)

TouchscreenYes

Viewing Angle178°

Performance

Operating SystemAndroid 11

RAM6 GB

Storage32 GB

Storage Conditions-20 to 60 °C

Audio

Audio Out3.5 mm stereo, S/PDIF optical

MicrophoneIntegrated linear 4-microphone array

Speaker Output2 × 20 W

Connectivity

BluetoothBluetooth 5.0 (dual mode)

Ethernet1000BASE-T, RJ45 × 2

Input Voltage100–240 V AC, 50/60 Hz

OPS Slot1 (back), for 60 W devices

Serial PortRS-232 × 1

USB PortsUSB 3.0 Type-A × 3, USB 2.0 Type-A × 1, USB 3.0 Type-B × 3, USB 2.0 Type-B × 1

USB-C Ports2 (1 front, 1 back), 4K @ 60 Hz, DisplayPort 1.2

Wi-Fi802.11 a/b/g/n/ac, 2 × 2 MIMO, 2.4 and 5 GHz

Power

Power Consumption161 W (typical)

Standby Power0.4 W

Physical

ColorWhite or black

Dimensions2005 x 1221 x 124 mm

Operating Humidity5% to 80% RH, non-condensing

Operating Temperature5 to 35 °C

VESA Mount600 x 400 mm

Weight86 kg

Compliance

CertificationsTAA compliant, ENERGY STAR, CE, UKCA, RoHS, REACH, WEEE

WarrantySMART Assure (terms vary by region)

Downloads

Manufacturer documents for the SMART Board 6586S-V3 Pro 86-inch Interactive Flat Panel – SBID-6586S-V3-P — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the screen size and resolution of the SBID-6586S-V3-P?

The SBID-6586S-V3-P is a 86-inch interactive flat panel with 3840 x 2160 (4K UHD) resolution, a 16:9 aspect ratio, a 60 Hz refresh rate and brightness rated at 350 nits or more.

Is the SBID-6586S-V3-P suitable for a classroom or boardroom?

Yes. It suits classrooms and meeting rooms, with up to 40 touch points, a 178° viewing angle, two 20 W speakers and a four-microphone array for room audio and voice input. Procure.ae can advise on the mounting position for the room.

How heavy is the SBID-6586S-V3-P and what mounting does it need?

The 86-inch model weighs 86 kg and uses a 600 x 400 mm VESA pattern with M8 fixings. Its screen measures 2005 x 1221 x 124 mm (W x H x D), so check the wall or stand width before installation. Procure.ae handles installation across the UAE.

Does the SBID-6586S-V3-P support OPS computing modules?

Yes. It has one OPS PC accessory slot on the back for 60 W devices, and the specifications list SMART PCM modules as supported. The panel also runs Android 11 with the iQ built-in experience.

Which software comes with the SBID-6586S-V3-P?

SMART Notebook, SMART Ink and SMART Product Drivers are listed as included. SMART Remote Management is a subscription for the length of the included warranty, and the panel receives automatic over-the-air updates.
