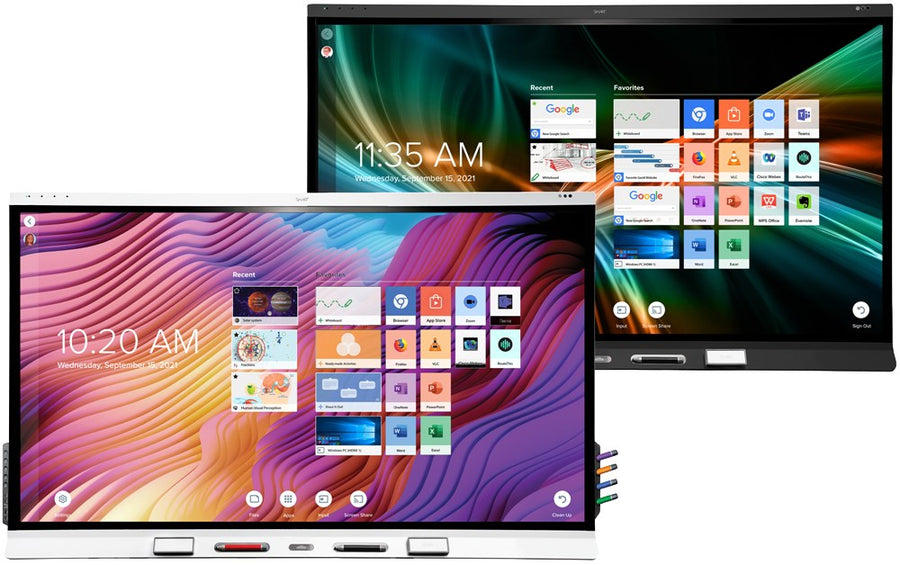

SMART Board 6586S-V3 Pro 86-inch Interactive Flat Panel – SBID-6586S-V3-P
The SMART Board 6586S-V3 Pro is a 86-inch interactive flat panel for classrooms and business meeting rooms. It has 4K UHD (3840 x 2160) resolution, up to 40 touch points and Android 11 with the iQ built-in experience. Procure.ae supplies the SBID-6586S-V3-P across the UAE, with delivery and installation.
The 86-inch panel uses an LED backlight with a 16:9 aspect ratio, 3840 x 2160 (4K UHD) resolution and a 60 Hz refresh rate. Brightness is rated at 350 nits or more, the viewing angle is 178°, and the fully heat-tempered anti-glare glass resists smudges and fingerprints. HyPr Touch with InGlass supports up to 40 touch points (OS dependent) with ±1 mm accuracy, Pen ID, Silktouch and Pressure Sensitive Ink. Two integrated 20 W speakers and a linear four-microphone array handle audio, and the package includes two pens, two erasers and magnetic tool holders.
The panel runs Android 11 with 6 GB of RAM and 32 GB of storage, and includes SMART Notebook, SMART Ink and SMART Product Drivers, plus Google Drive and OneDrive access. It accepts SMART PCM OPS computing modules, offers dual-band Wi-Fi and Bluetooth 5.0, and has two RJ45 ports (1000BASE-T). Mount it with a 600 x 400 mm VESA pattern. At 86 inches it measures 2005 x 1221 x 124 mm and weighs 86 kg, the largest of the 6000S (V3) sizes.
Key features
Specifications
| Controls | Power, home, volume, screen shade, freeze frame |
| Key Features | TAA compliant, 40-point multi-touch, Pen ID, NFC sign-in, iQ built-in Android, SMART Notebook included, 2 × 20 W speakers, automatic OTA updates |
| Model | SBID-6586S-V3-P |
| Type | Interactive Flat Panel |
| What's in the Box | 2 pens, 2 erasers, remote control, 3 external antennae, 2 SMART ID cards, USB cable, wall mount |
| Aspect Ratio | 16:9 |
| Backlight | LED |
| Brightness | ≥ 350 nits |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | ≤ 8 ms |
| Screen Size | 86 inch |
| Touch Accuracy | ±1 mm |
| Touch Points | 40-point multi-touch (OS dependent) |
| Touchscreen | Yes |
| Viewing Angle | 178° |
| Operating System | Android 11 |
| RAM | 6 GB |
| Storage | 32 GB |
| Storage Conditions | -20 to 60 °C |
| Audio Out | 3.5 mm stereo, S/PDIF optical |
| Microphone | Integrated linear 4-microphone array |
| Speaker Output | 2 × 20 W |
| Bluetooth | Bluetooth 5.0 (dual mode) |
| Ethernet | 1000BASE-T, RJ45 × 2 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | 1 (back), for 60 W devices |
| Serial Port | RS-232 × 1 |
| USB Ports | USB 3.0 Type-A × 3, USB 2.0 Type-A × 1, USB 3.0 Type-B × 3, USB 2.0 Type-B × 1 |
| USB-C Ports | 2 (1 front, 1 back), 4K @ 60 Hz, DisplayPort 1.2 |
| Wi-Fi | 802.11 a/b/g/n/ac, 2 × 2 MIMO, 2.4 and 5 GHz |
| Power Consumption | 161 W (typical) |
| Standby Power | 0.4 W |
| Color | White or black |
| Dimensions | 2005 x 1221 x 124 mm |
| Operating Humidity | 5% to 80% RH, non-condensing |
| Operating Temperature | 5 to 35 °C |
| VESA Mount | 600 x 400 mm |
| Weight | 86 kg |
| Certifications | TAA compliant, ENERGY STAR, CE, UKCA, RoHS, REACH, WEEE |
| Warranty | SMART Assure (terms vary by region) |
