Sharp

Meeting Room SolutionsSKU USB Type C Interface Board

Sharp USB Type-C Display Interface Board – USB Type C Interface Board

Name: Sharp USB Type-C Display Interface Board – USB Type C Interface Board
Brand: Sharp
SKU: USB Type C Interface Board
Availability: InStock

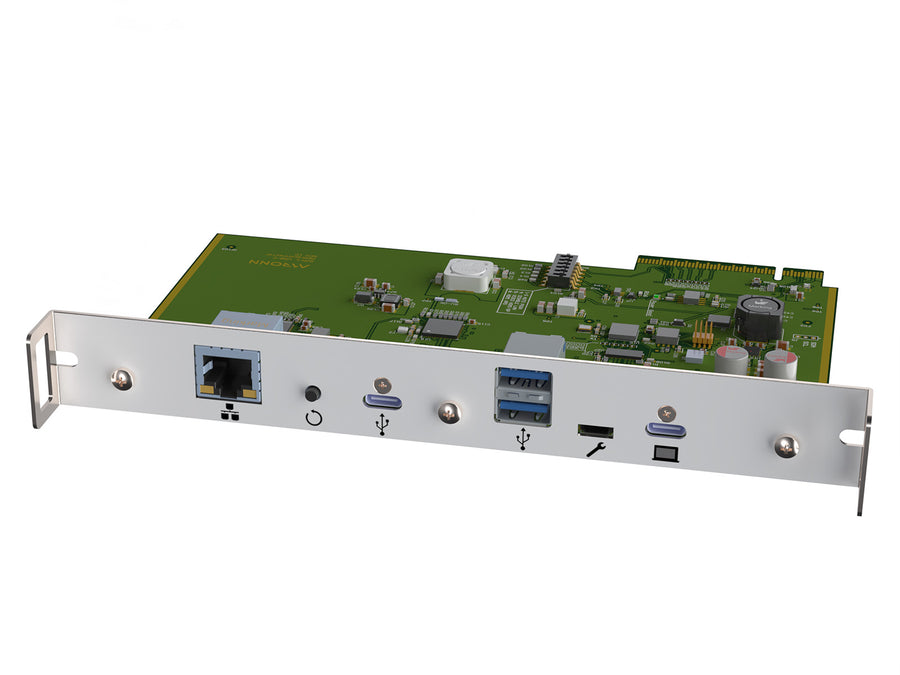

The Sharp USB Type-C Interface Board is an SDM-L format accessory for Sharp interactive displays. A single USB-C cable can carry a notebook's video and data and charge it at up to 45 W. It supports 4K UHD at 60 Hz over USB 2.0 and fits the listed Sharp models. Procure.ae supplies it across the UAE.

The board brings meeting-room connections into one USB Type-C cable. Upstream AV equipment connects through two USB-A ports (up to USB 3.1 Gen 1) and one USB-C port (up to USB 3.1). Video reaches 3840 x 2160 at 60 Hz over USB 2.0 or at 30 Hz over USB 3.1 using DisplayPort Alt Mode. The power delivery rating is 45 W, with profiles from 5 V to 20 V.

The board is in SDM-L format and is listed as compatible with Sharp ME431*, ME501, ME551, ME651, M431*, M491, M551, M651, M751, M861, M981, LA652, LA752 and LA862 displays. The asterisk marks models where notebook charging is not supported. Use it where a single cable needs to carry AV, data and power from a notebook to the display.

Resolution

3840 x 2160 (4K UHD) at 60 Hz over ...

Type

USB-C Interface Board

Single-cable connection
SDM-L format
4K UHD video

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

Single-cable connection

One USB-C cable carries video, data and power for a notebook.

SDM-L format

Built in SDM-L format for compatible Sharp displays.

4K UHD video

3840 x 2160 at 60 Hz over USB 2.0, or at 30 Hz over USB 3.1.

45 W power delivery

Power delivery up to 45 W with 5 V to 20 V profiles.

USB and Ethernet ports

Two USB-A ports, two USB-C ports, Ethernet and a micro USB service port.

Compatible Sharp models

Listed for Sharp ME, M and LA series displays.

Specifications

8 specifications

General

CompatibilitySharp ME431*, ME501, ME551, ME651, M431*, M491, M551, M651, M751, M861, M981, LA652, LA752, LA862 (*notebook charging not supported)

Key FeaturesSDM-L format, single USB-C cable connection, 45 W power delivery, 4K UHD video, Ethernet, two USB-A ports, two USB-C ports

ModelUSB Type C Interface Board

TypeUSB-C Interface Board

Display

Resolution3840 x 2160 (4K UHD) at 60 Hz over USB 2.0; 3840 x 2160 (4K UHD) at 30 Hz over USB 3.1

Audio

Power Output45 W power delivery

Connectivity

PortsUSB-A × 2 (USB 3.1 Gen 1), USB-C × 1 (USB 3.1), Ethernet, USB-C × 1 (video, data, power), micro USB × 1 (service)

Physical

Form FactorSDM-L

Downloads

Manufacturer documents for the Sharp USB Type-C Display Interface Board – USB Type C Interface Board — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Which Sharp displays is the USB Type C Interface Board compatible with?

The listed compatible models are ME431*, ME501, ME551, ME651, M431*, M491, M551, M651, M751, M861, M981, LA652, LA752 and LA862. The asterisk marks models where notebook charging is not supported, so confirm your exact model with Procure.ae before ordering.

Can it charge a notebook through the display?

Yes, on compatible models without an asterisk. The board's USB-C port carries video, data and power at up to 45 W. Notebook charging is not supported on ME431* and M431*.

What resolution does it support?

It supports 3840 x 2160 (4K UHD) at 60 Hz over USB 2.0 and 3840 x 2160 at 30 Hz over USB 3.1. Both modes use DisplayPort Alt Mode, with four DP 1.4 lanes on USB 2.0 and two lanes on USB 3.1.

Can I buy the USB Type C Interface Board in the UAE?

Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
