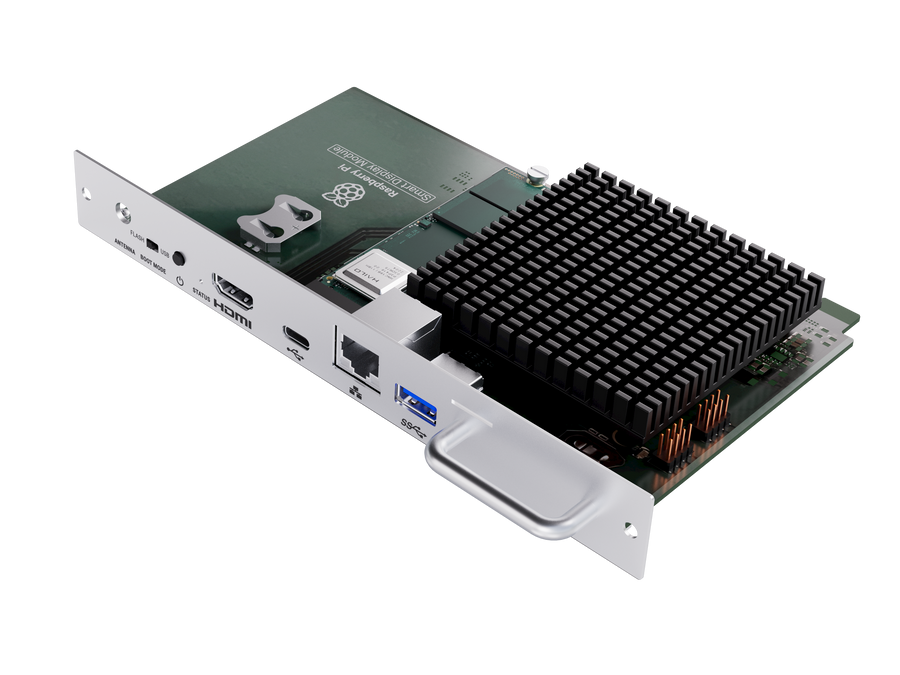

Sharp SDM MPi5 Kit Signage Media Player – SDM MPi5 Kit powered by Raspberry Pi

The Sharp SDM MPi5 Kit is a Smart Display Module that combines a Raspberry Pi Compute Module 5 with a quad-core Arm Cortex-A76 processor at 2.4 GHz and 32 GB eMMC storage. It is built for flight information displays, wayfinding and mission-critical signage. Procure.ae supplies the SDM MPi5 Kit in the UAE for Sharp displays.

The SDM MPi5 Kit uses a quad-core 64-bit Arm Cortex-A76 processor at 2.4 GHz. Its graphics support hardware H.265 (HEVC) decoding up to 4Kp60 and H.264 decoding up to 1080p60, and H.264 encoding up to 1080p30. OpenGL ES 3.1 and Vulkan 1.3 are supported. The kit includes 32 GB of on-board eMMC storage. It follows the Intel Smart Display Module standard and uses the Raspberry Pi Compute Module 5, which the manufacturer chose for its cost-effective computing performance.

The kit targets flight information display systems (FIDS), wayfinding, information displays and other mission-critical digital signage where reliability, control and rapid system adaptation are needed. It runs Raspberry Pi OS optimised for signage applications, and custom operating systems are available on request. Because the kit follows the SDM standard, it is designed to fit compatible Sharp large format displays. Confirm the display model before ordering.
