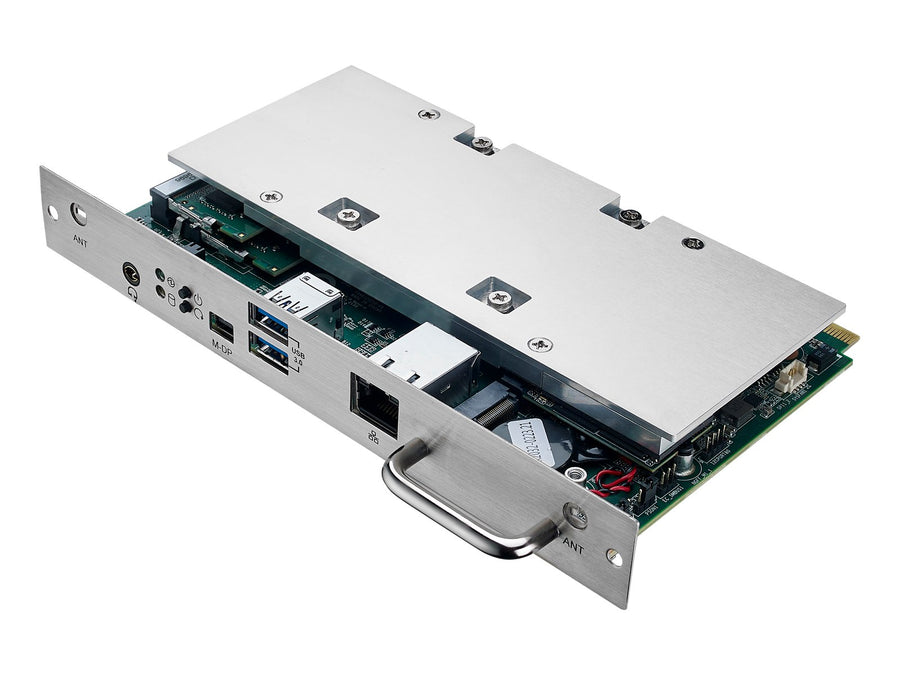

Sharp SDM Essential Digital Signage Media Player
The Sharp SDM Essential is an Intel Smart Display Module for UHD digital signage, with a quad-core Intel Atom x6413E processor, 8 GB RAM and a 128 GB M.2 SATA SSD. It runs Windows 11 IoT Enterprise LTSC 2024 and suits flight information displays in airport terminals, retail and corporate signage. Procure.ae supplies the SDM Essential in the UAE.
The SDM Essential uses the Intel Elkhart Lake Atom x6413E processor with four cores at 1.5 GHz, paired with Intel UHD Graphics for 10th Gen Intel processors. It drives UHD content, and its hardware decoding covers H.265/HEVC, VP8, VP9, MPEG-2, JPEG and VC-1/WMV9 video. The module provides 8 GB dual-channel RAM and a 128 GB M.2 SATA SSD. Graphics support includes OpenGL 4.5, DirectX 12 and OpenCL 1.2, and the manufacturer positions the Intel platform for low power use in 24/7 applications.
The SDM Essential is designed for flight information display systems in airport terminals, and for retail and corporate signage. It runs Windows 11 IoT Enterprise LTSC 2024 as its operating system. The module is built to the Intel Smart Display Module format, so it fits compatible large format displays. The manufacturer's specifications do not list supported display models, so confirm compatibility before ordering.
Type
Signage Media Player (Intel SDM)
- Intel Atom processor
- UHD graphics
- Video decoding
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Atom processor
Quad-core Intel Atom x6413E at 1.5 GHz on the Elkhart Lake platform.
02
UHD graphics
Intel UHD Graphics for 10th Gen processors, with OpenGL 4.5 and DirectX 12 support.
03
Video decoding
Hardware decode for H.265/HEVC, VP8, VP9, MPEG-2, JPEG and VC-1/WMV9 video.
04
Memory
8 GB dual-channel RAM for signage playback and system tasks.
05
Storage
128 GB M.2 SATA SSD on the module.
06
Operating system
Windows 11 IoT Enterprise LTSC 2024 installed.
Specifications
9 specificationsGeneral
Key FeaturesQuad-core Atom x6413E, UHD video, H.265/HEVC hardware decode, 8 GB RAM, 128 GB SSD, Windows 11 IoT Enterprise, low-power design for 24/7 use
ModelSDM Essential
TypeSignage Media Player (Intel SDM)
Performance
GraphicsIntel UHD Graphics (10th Gen); H.265/HEVC, VP8, VP9, MPEG-2, JPEG, VC-1/WMV9 decode; OpenGL 4.5; DirectX 12; OpenCL 1.2
Operating SystemWindows 11 IoT Enterprise LTSC 2024
ProcessorIntel Atom x6413E (Elkhart Lake), 4 cores at 1.5 GHz
RAM8 GB dual-channel
Storage128 GB M.2 SATA SSD
Physical
Form FactorIntel Smart Display Module (SDM)
Downloads
Manufacturer documents for the Sharp SDM Essential Digital Signage Media Player — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the SDM Essential suitable for flight information displays?
Yes. The manufacturer positions the SDM Essential for flight information display systems (FIDS) in airport terminals, as well as retail and corporate signage. It drives UHD video for these uses.
What operating system does it run?
It runs Windows 11 IoT Enterprise LTSC 2024. The module has an Intel Atom x6413E processor with four cores at 1.5 GHz, 8 GB dual-channel RAM and a 128 GB M.2 SATA SSD. These are the configuration details the manufacturer lists for this module.
How much memory and storage does it have?
It has 8 GB dual-channel RAM and a 128 GB M.2 SATA SSD, as listed by the manufacturer. The module uses a low-power Intel Elkhart Lake platform for continuous signage use, and Procure.ae can confirm the module configuration that suits your project before ordering.
Does it support UHD video?
Yes. The Intel UHD Graphics engine drives Ultra-High Definition (UHD) content, and hardware decoding covers H.265/HEVC, VP8, VP9, MPEG-2, JPEG and VC-1/WMV9. The manufacturer positions the module for UHD flight information and retail signage.
