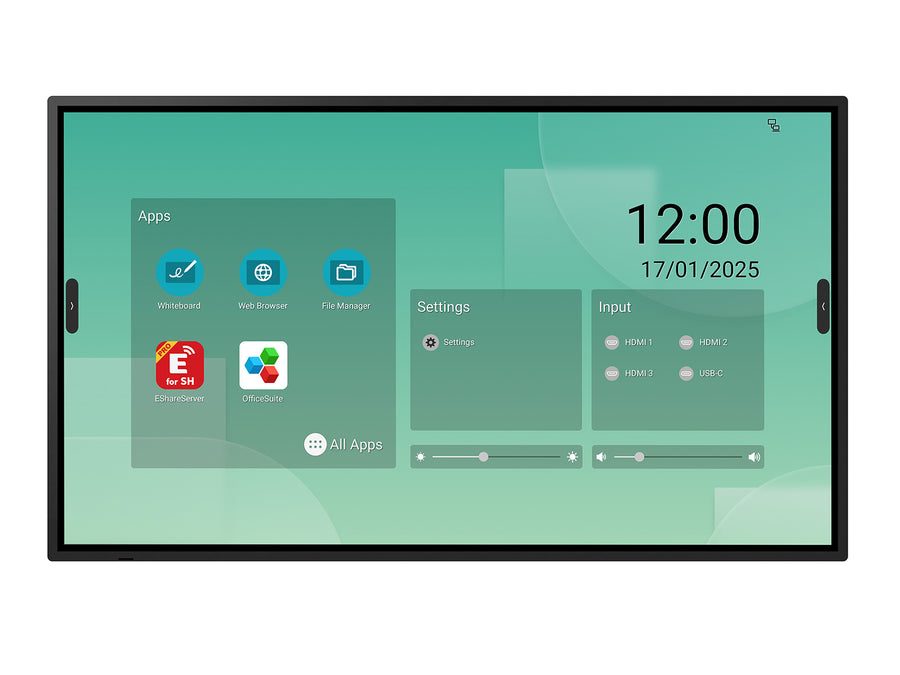

SharpSharp PN-LM Series 55-inch 4K UHD Interactive Flat Panel – PN-LM551
The Sharp PN-LM551 is a 55-inch 4K UHD interactive flat panel with a VA panel, 5,000:1 typical contrast and 20-point infrared touch. It suits meeting rooms and interactive signage that need an OPS slot and built-in Android 14 with wireless screen sharing. Procure.ae supplies the Sharp PN-LM551 across the UAE.
The PN-LM551 has a 3840 x 2160 VA panel with 500 nits brightness, 5,000:1 typical contrast and an 8 ms typical response time at a 60 Hz refresh rate. Its infrared touch layer supports real multi-touch up to 20 touches, with ±1 mm accuracy, Windows Ink and a dual-tip stylus. The Android 14 system runs on an octa-core Arm processor with 4 GB RAM and 32 GB internal storage, with the E-Share app, a whiteboard and the MobiOffice viewer. An OPS slot accepts an external PC module.
The PN-LM551 suits meeting rooms, lecture spaces and interactive signage that calls for a 55-inch screen. It runs in landscape, portrait or a 45-degree tilted-backwards orientation, and optional Eco Sensor accessories add ambient light and human presence detection. Connectivity covers three HDMI inputs with HDCP 2.3, a USB-C input at 65 W, three USB 3.0 ports, RS-232C, LAN and the OPS slot, and it is compatible with Barco ClickShare and Q-Sys. Compared with the 43-inch PN-LM431, it adds the OPS slot and 5,000:1 typical contrast.
- Infrared multi-touch
- 55-inch 4K VA panel
- OPS slot expansion
Key features
Specifications
42 specificationsDownloads
Manufacturer documents for the Sharp PN-LM Series 55-inch 4K UHD Interactive Flat Panel – PN-LM551 — datasheets, manuals, drawings and certificates.
- Datasheet – PN-LM551
- Brochure – PN-LM Series
- Brochure – NEC (covers 64 models)
- Brochure – NEC (covers 96 models)
- Brochure – PN-LM Series
- User manual – Sharp (covers 18 models)
- User manual – PN-LM Series
- User manual – Sharp (covers 18 models)
- Installation guide – PN-LM Series
- Drawing – PN-LM551
- Control protocol (RS232 / LAN) – PN-LM Series
- Control protocol (RS232 / LAN) – PN-LM Series
- Control protocol (RS232 / LAN) – PN-LM Series
- Certificate / compliance – PN-LM551
- Certificate / compliance – PN-LM551
