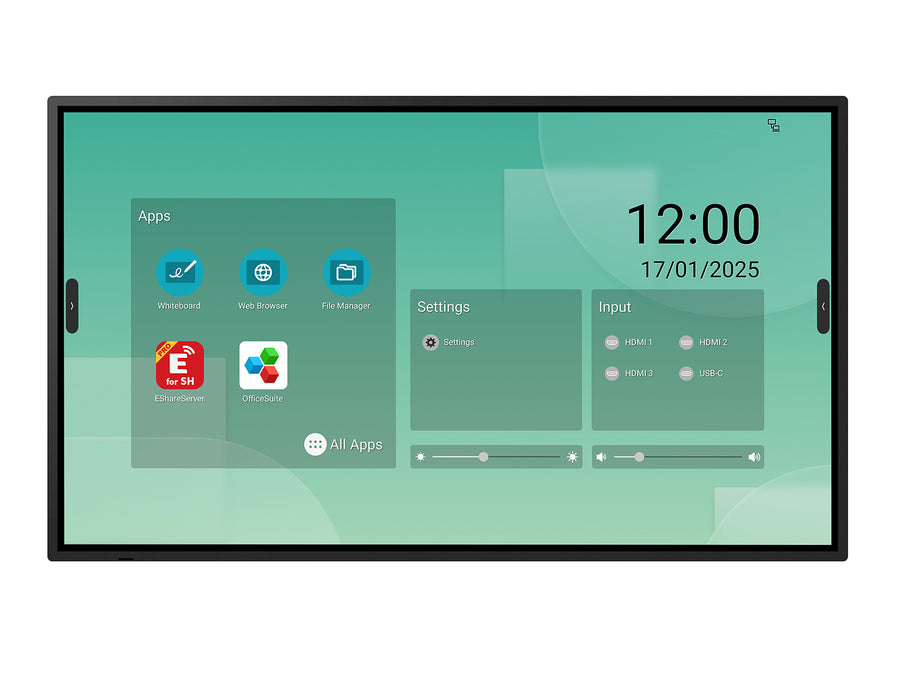

Sharp PN-LM Series 55-inch 4K UHD Interactive Flat Panel – PN-LM551

Sharp PN-LM Series 55-inch 4K UHD Interactive Flat Panel – PN-LM551

The Sharp PN-LM551 is a 55-inch 4K UHD interactive flat panel with a VA panel, 5,000:1 typical contrast and 20-point infrared touch. It suits meeting rooms and interactive signage that need an OPS slot and built-in Android 14 with wireless screen sharing. Procure.ae supplies the Sharp PN-LM551 across the UAE.

The PN-LM551 has a 3840 x 2160 VA panel with 500 nits brightness, 5,000:1 typical contrast and an 8 ms typical response time at a 60 Hz refresh rate. Its infrared touch layer supports real multi-touch up to 20 touches, with ±1 mm accuracy, Windows Ink and a dual-tip stylus. The Android 14 system runs on an octa-core Arm processor with 4 GB RAM and 32 GB internal storage, with the E-Share app, a whiteboard and the MobiOffice viewer. An OPS slot accepts an external PC module.

The PN-LM551 suits meeting rooms, lecture spaces and interactive signage that calls for a 55-inch screen. It runs in landscape, portrait or a 45-degree tilted-backwards orientation, and optional Eco Sensor accessories add ambient light and human presence detection. Connectivity covers three HDMI inputs with HDCP 2.3, a USB-C input at 65 W, three USB 3.0 ports, RS-232C, LAN and the OPS slot, and it is compatible with Barco ClickShare and Q-Sys. Compared with the 43-inch PN-LM431, it adds the OPS slot and 5,000:1 typical contrast.

Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared
Type
Interactive Flat Panel
Weight
33 kg

Key features

01
Infrared multi-touch
20-point real multi-touch with finger, glove and stylus input, at ±1 mm accuracy.
02
55-inch 4K VA panel
3840 x 2160 resolution, 500 nits brightness and 5,000:1 typical contrast.
03
OPS slot expansion
Open pluggable specification slot; OPS Enterprise Pro or Ultra is recommended.
04
Windows Ink support
Windows Ink is supported with a dual-tip stylus (2.6 mm and 6.8 mm).
05
Android 14 system
Android 14 CTS-compliant system with 4 GB RAM and 32 GB internal storage.
06
Wireless screen sharing
The built-in E-Share app shares content from personal devices without apps or dongles.
07
USB-C 65 W input
One USB-C cable carries data, video, audio and up to 65 W of power to a notebook.
08
Flexible orientation
Supports landscape, portrait and 45-degree tilted-backwards installation.

Specifications

General
ControlsHDMI CEC, scheduled timer, RS-232C, LAN
Key FeaturesInfrared touch, 20-point multi-touch, OPS slot, Windows Ink, Android 14, E-Share wireless sharing, USB-C 65 W input, Q-Sys plug-in
ModelPN-LM551
TypeInteractive Flat Panel
What's in the BoxUSB cable, 2 passive styluses, 2 AAA batteries, remote control, wireless adapter, power cable, setup manual
Display
Aspect Ratio16:9
Bezel Size15 mm (all sides)
Brightness500 nits
Color Depth1.07 billion colours (8-bit + FRC)
Contrast Ratio5,000:1
OrientationLandscape, portrait, 45° tilted backwards
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Touch Accuracy±1 mm
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
RAM4 GB
Storage32 GB
Audio
Speaker Output2 x 10 W
Connectivity
BluetoothBluetooth 5.3
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes (OPS Enterprise Pro or Ultra recommended)
PortsHDMI In × 3, HDMI Out × 1, USB-C × 1 (65 W), USB 3.0 × 3, USB-B touch × 1, LAN × 1, RS-232C × 1, 3.5 mm audio out × 1
Touch USB PortsUSB 2.0 HID (plug and play)
Wi-FiIEEE 802.11 a/b/g/n/ac/ax
Power
Power Consumption145 W (typical)
Physical
Dimensions1265 x 736 x 73 mm
Duty Cycle18/7
MaterialAluminum alloy (front); metal (back)
Operating Humidity20% to 80% RH
Operating Temperature5 to 35 °C
Shipping Dimensions1410 x 885 x 185 mm
Shipping Weight43 kg
VESA Mount400 x 400 mm
Weight33 kg
Compliance
CertificationsCE, EMC Class B, RoHS, UKCA, EnergyStar 8.0
Warranty3 years (incl. backlight)
