SharpDigital SignageSKU PN-P756

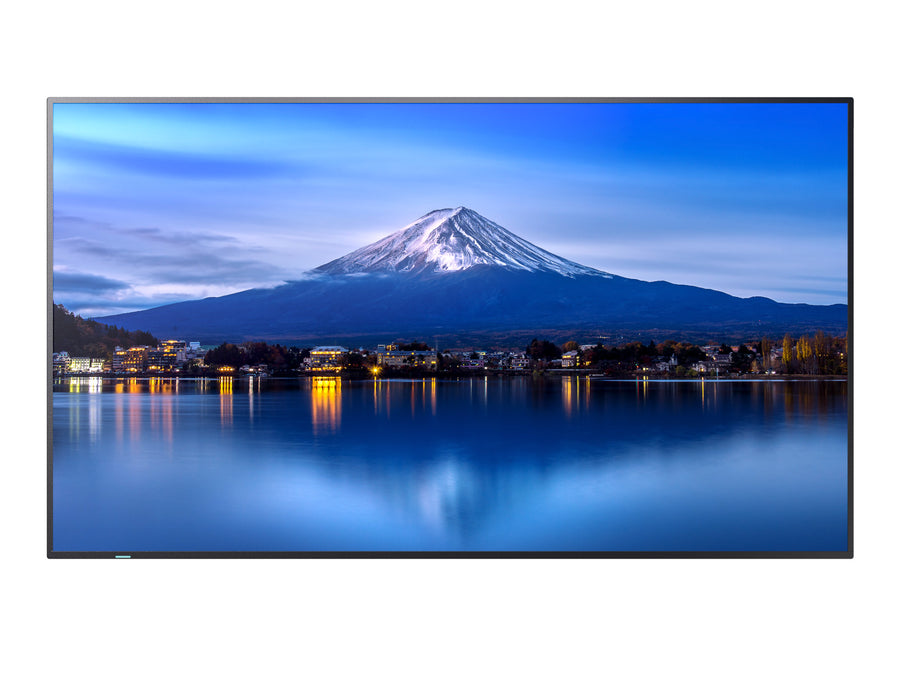

Sharp MultiSync P-Series 75-inch 4K UHD Digital Signage Display – PN-P756
The Sharp PN-P756 is a 75-inch 4K UHD digital signage display with an IPS panel, built for control rooms, passenger information and corporate signage that run 24/7. It offers 700 cd/m² brightness and a contrast ratio of at least 8,000:1. Procure.ae supplies the PN-P756 in the UAE, with delivery and installation across the country.
The PN-P756 has a native 3840 x 2160 IPS panel with direct LED backlighting. It delivers 700 cd/m² brightness with a Pro haze level of 25%, and its viewing angles are 178° horizontal and vertical at a 10:1 contrast ratio. Colour uses 10-bit depth with 72% NTSC colour gamut coverage. The panel responds in 8 ms grey-to-grey at a 60 Hz refresh rate. Three integrated temperature sensors support triggered actions, and the display can be calibrated with Display Wall Calibrator software.
The PN-P756 suits control rooms, passenger information, prestige retail and corporate signage. Its compute module slot takes a Raspberry Pi Compute Module 4, and it accepts Intel Smart Display Modules up to 66 W. The manufacturer certifies it for Crestron Connected, and it includes a Q-Sys plug-in. HDMI and DisplayPort loop-through let content be cloned across multiple displays, and its 600 x 400 mm VESA pattern uses M8 fixings.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits
Type
Digital Signage Display
- 75-inch 4K UHD panel
- 700 nit brightness
- Temperature sensing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
75-inch 4K UHD panel
3840 x 2160 native resolution with 10-bit colour and 72% NTSC colour gamut coverage.
02
700 nit brightness
700 cd/m² with a Pro haze level of 25% and a minimum 8,000:1 contrast ratio.
03
Temperature sensing
Three integrated temperature sensors that can trigger programmed actions.
04
Compute module slot
Takes a Raspberry Pi Compute Module 4, and accepts Intel Smart Display Modules up to 66 W.
05
Daisy-chain video
HDMI and DisplayPort loop-through clones or expands content across displays.
06
Secure networking
IEEE 802.1X LAN support, with options to disable hardware buttons and IR control.
07
Remote management
NaViSet Administrator 2, plus Crestron, AMX NetLinx, PJLink and SNMP control.
08
24/7 warranty cover
Rated for 24/7 operation, with a 3-year warranty that includes the backlight.
Specifications
32 specificationsGeneral
CompatibilityCrestron Connected, Q-Sys, AMX NetLinx, PJLink, SNMP
Key FeaturesDirect LED IPS panel, 700 nits, HDMI and DisplayPort daisy-chaining, compute module slot, temperature sensors, 24/7 operation, Crestron and Q-Sys integration
ModelPN-P756
TypeDigital Signage Display
What's in the BoxDisplay, remote control, HDMI cable, power cable, 2 AAA batteries, setup manual
Display
Aspect Ratio16:9
Bezel Size14.3 mm left, right and top; 14.8 mm bottom
Brightness700 nits
Color Depth1.073 billion colours (10-bit)
Color Gamut72% NTSC
Contrast Ratio8,000:1 (minimum)
Panel TechnologyIPS with direct LED backlight
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (grey-to-grey)
Screen Size75 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Storage Conditions-20 to 60 °C; 10% to 90% humidity
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, HDMI Out × 1, DisplayPort In × 1, DisplayPort Out × 1, USB-C × 2, USB-A × 1, LAN × 1 (100 Mbit/s), RS-232C × 1, 3.5 mm audio out × 1
Power
Power Consumption170 W (typical)
Physical
ColorBlack front bezel, black back cabinet
Dimensions1682.3 x 961.1 x 83.2 mm (W x H x D)
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm (FDMI, M8)
Weight38 kg
Compliance
CertificationsCE; FCC Class B; UL/C-UL or CSA; Energy Star 8; RoHS; REACH; UKCA
IP RatingIP5x (front); IP2x (back)
Security FeaturesDisable hardware buttons, disable IR, emergency notification, IEEE 802.1X LAN
Warranty3 years (includes backlight)
Downloads
Manufacturer documents for the Sharp MultiSync P-Series 75-inch 4K UHD Digital Signage Display – PN-P756 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Can the PN-P756 run 24/7?
Yes. The manufacturer rates the PN-P756 for 24/7 operating hours, with an operating range of 0 to 40 °C and 20% to 80% humidity. The warranty is 3 years and includes the backlight.
Can the PN-P756 be wall-mounted?
Yes. It has a 600 x 400 mm VESA mounting pattern with four M8 holes, using FDMI mounting. The manufacturer lists wall mounts, a trolley and feet as optional accessories.
Does the PN-P756 work with Crestron systems?
Yes. The manufacturer states the PN-P756 is certified for Crestron Connected, and it has a Q-Sys plug-in. It also supports AMX NetLinx, PJLink, HTTP browser and SNMP external control. Confirm the exact control requirements with Procure.ae before a project is specified.
Can I add a media player to the PN-P756?
Yes. The compute module slot takes a Raspberry Pi Compute Module 4, and the display also accepts Intel Smart Display Modules up to 66 W. Confirm the module type with Procure.ae before ordering.
What screen size and resolution does the PN-P756 have?
It has a 75-inch (189.3 cm) screen with a native resolution of 3840 x 2160 (4K UHD) and a 16:9 aspect ratio. It also supports 1920 x 1080 and lower resolutions.
