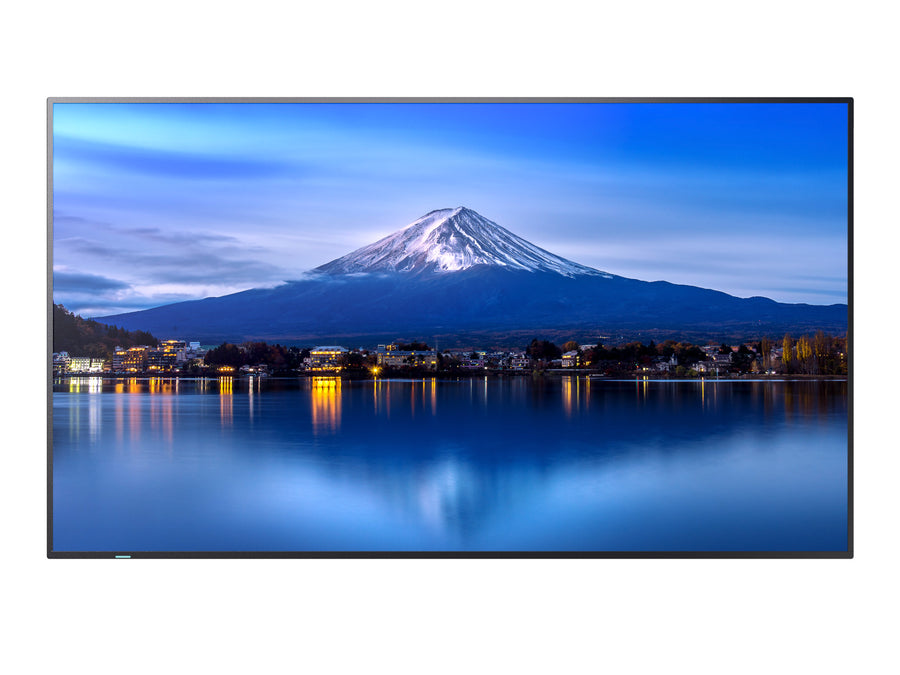

Sharp MultiSync P-Series 75-inch 4K UHD Digital Signage Display – PN-P756
The Sharp PN-P756 is a 75-inch 4K UHD digital signage display with an IPS panel, built for control rooms, passenger information and corporate signage that run 24/7. It offers 700 cd/m² brightness and a contrast ratio of at least 8,000:1. Procure.ae supplies the PN-P756 in the UAE, with delivery and installation across the country.
The PN-P756 has a native 3840 x 2160 IPS panel with direct LED backlighting. It delivers 700 cd/m² brightness with a Pro haze level of 25%, and its viewing angles are 178° horizontal and vertical at a 10:1 contrast ratio. Colour uses 10-bit depth with 72% NTSC colour gamut coverage. The panel responds in 8 ms grey-to-grey at a 60 Hz refresh rate. Three integrated temperature sensors support triggered actions, and the display can be calibrated with Display Wall Calibrator software.
The PN-P756 suits control rooms, passenger information, prestige retail and corporate signage. Its compute module slot takes a Raspberry Pi Compute Module 4, and it accepts Intel Smart Display Modules up to 66 W. The manufacturer certifies it for Crestron Connected, and it includes a Q-Sys plug-in. HDMI and DisplayPort loop-through let content be cloned across multiple displays, and its 600 x 400 mm VESA pattern uses M8 fixings.
Key features
Specifications
| Compatibility | Crestron Connected, Q-Sys, AMX NetLinx, PJLink, SNMP |
| Key Features | Direct LED IPS panel, 700 nits, HDMI and DisplayPort daisy-chaining, compute module slot, temperature sensors, 24/7 operation, Crestron and Q-Sys integration |
| Model | PN-P756 |
| Type | Digital Signage Display |
| What's in the Box | Display, remote control, HDMI cable, power cable, 2 AAA batteries, setup manual |
| Aspect Ratio | 16:9 |
| Bezel Size | 14.3 mm left, right and top; 14.8 mm bottom |
| Brightness | 700 nits |
| Color Depth | 1.073 billion colours (10-bit) |
| Color Gamut | 72% NTSC |
| Contrast Ratio | 8,000:1 (minimum) |
| Panel Technology | IPS with direct LED backlight |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (grey-to-grey) |
| Screen Size | 75 inch |
| Viewing Angle | 178° horizontal / 178° vertical |
| Storage Conditions | -20 to 60 °C; 10% to 90% humidity |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI In × 2, HDMI Out × 1, DisplayPort In × 1, DisplayPort Out × 1, USB-C × 2, USB-A × 1, LAN × 1 (100 Mbit/s), RS-232C × 1, 3.5 mm audio out × 1 |
| Power Consumption | 170 W (typical) |
| Color | Black front bezel, black back cabinet |
| Dimensions | 1682.3 x 961.1 x 83.2 mm (W x H x D) |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 600 x 400 mm (FDMI, M8) |
| Weight | 38 kg |
| Certifications | CE; FCC Class B; UL/C-UL or CSA; Energy Star 8; RoHS; REACH; UKCA |
| IP Rating | IP5x (front); IP2x (back) |
| Security Features | Disable hardware buttons, disable IR, emergency notification, IEEE 802.1X LAN |
| Warranty | 3 years (includes backlight) |
