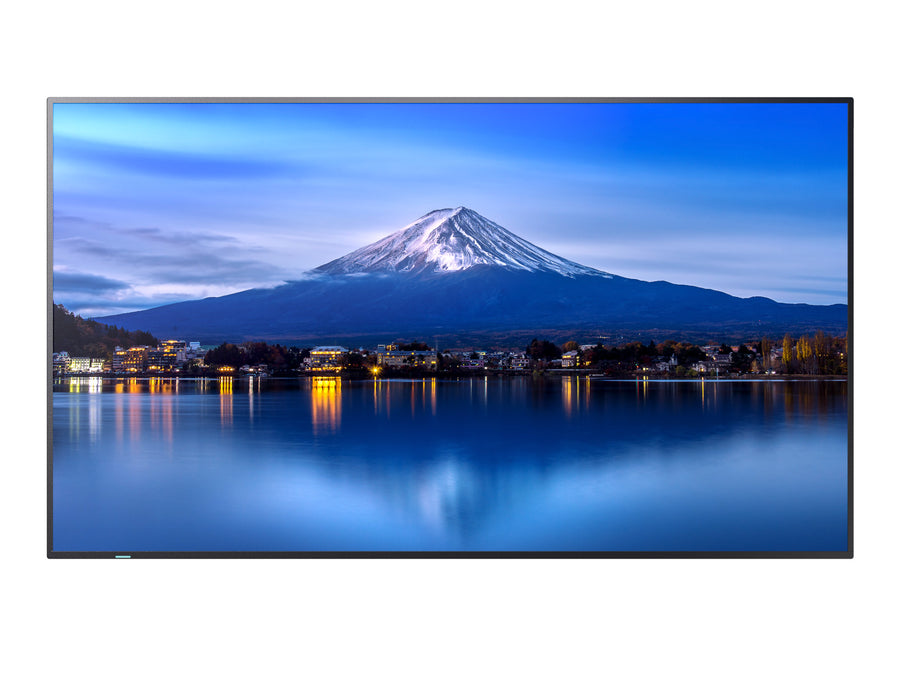

Sharp PN-P436 43-inch 4K UHD digital signage displaySharp
Digital SignageSKU PN-P436

Sharp MultiSync P-Series 43-inch 4K UHD Digital Signage Display – PN-P436

The Sharp PN-P436 is a 43-inch 4K UHD digital signage display for control rooms, passenger information and corporate signage that run 24/7. It offers 700 cd/m² brightness, a contrast ratio of at least 8,000:1 and a direct LED IPS panel. Procure.ae supplies the PN-P436 in the UAE, with delivery and installation across the country.

The PN-P436 has a native 3840 x 2160 panel with 700 cd/m² brightness and a Pro haze level of 25%. Its viewing angles are 178° horizontal and vertical at a 10:1 contrast ratio. The display reaches 86% DCI colour gamut with 10-bit colour depth. The panel responds in 8 ms grey-to-grey at a 60 Hz refresh rate. Three integrated temperature sensors and an ambient light sensor support triggered actions, and the display can be calibrated with Display Wall Calibrator software.

The PN-P436 suits control rooms, passenger information, prestige retail and corporate signage. Its compute module slot takes Raspberry Pi MPi4 and MPi5 kits, and it accepts Intel Smart Display Modules up to 66 W. It is certified for Crestron CCV2 and XiO Cloud, has a Q-Sys plug-in, and supports AMX NetLinx, PJLink and SNMP control. HDMI and DisplayPort loop-through let content be cloned or extended across multiple displays. A 300 x 300 mm VESA pattern supports wall mounting.

Screen Size
42.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits
Type
Digital Signage Display
  • 4K UHD panel
  • 700 nit brightness
  • Built-in sensors
Price
On request · best price
1
WhatsApp Call
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD panel
3840 x 2160 native resolution with 10-bit colour and 86% DCI colour gamut coverage.
02
700 nit brightness
700 cd/m² with a Pro haze level of 25% and a minimum 8,000:1 contrast ratio.
03
Built-in sensors
Ambient light sensor and three temperature sensors that can trigger programmed actions.
04
Compute module slot
Takes Raspberry Pi MPi4 and MPi5 kits, and accepts Intel Smart Display Modules up to 66 W.
05
Daisy-chain video
HDMI and DisplayPort loop-through clones or expands content across displays.
06
Secure networking
IEEE 802.1X LAN support, with options to disable hardware buttons and IR control.
07
Remote management
NaViSet Administrator 2, plus Crestron, AMX NetLinx, PJLink and SNMP control.
08
24/7 warranty cover
Rated for 24/7 operation, with a 3-year warranty that includes the backlight.

Specifications

32 specifications
General
CompatibilityCrestron CCV2, XiO Cloud, Q-Sys, AMX NetLinx, PJLink, SNMP
Key FeaturesDirect LED IPS panel, 700 nits, HDMI and DisplayPort daisy-chaining, compute module slot, ambient and temperature sensors, 24/7 operation, Crestron and Q-Sys integration
ModelPN-P436
TypeDigital Signage Display
What's in the BoxDisplay, remote control, HDMI cable, power cable, 2 AAA batteries, setup manual
Display
Aspect Ratio16:9
Bezel Size13.9 mm bottom; 9.9 mm left, right and top
Brightness700 nits
Color Depth1.073 billion colours (10-bit)
Color Gamut86% DCI
Contrast Ratio8,000:1 (minimum)
Panel TechnologyIPS with direct LED backlight
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (grey-to-grey)
Screen Size42.5 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Storage Conditions-20 to 60 °C; 10% to 80% humidity
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, HDMI Out × 1, DisplayPort In × 1, DisplayPort Out × 1, USB-C × 2, USB-A × 1, LAN × 1 (100 Mbit/s), RS-232C × 1, 3.5 mm audio out × 1
Power
Power Consumption80 W (typical)
Physical
ColorBlack front bezel, black back cabinet
Dimensions965 x 557.2 x 66.5 mm (W x H x D)
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm (FDMI, M6)
Weight13.5 kg
Compliance
CertificationsCE; FCC Class B; UL/C-UL or CSA; Energy Star 8; RoHS; REACH; UKCA
IP RatingIP5x (front); IP2x (back)
Security FeaturesDisable hardware buttons, disable IR, emergency notification, IEEE 802.1X LAN
Warranty3 years (includes backlight)

Downloads

Manufacturer documents for the Sharp MultiSync P-Series 43-inch 4K UHD Digital Signage Display – PN-P436 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Can the PN-P436 run 24/7?
Yes. The manufacturer rates the PN-P436 for 24/7 operating hours, with an operating range of 0 to 40 °C and 20% to 80% humidity. The warranty is 3 years and includes the backlight.
Can the PN-P436 be wall-mounted?
Yes. It has a 300 x 300 mm VESA mounting pattern with four M6 holes, using FDMI mounting. The manufacturer lists wall mounts for 32 to 65-inch displays and a trolley as optional accessories.
Does the PN-P436 work with Crestron or Q-Sys systems?
Yes. The manufacturer states the PN-P436 is certified for Crestron CCV2 and XiO Cloud, and it has a Q-Sys plug-in. It also supports AMX NetLinx, PJLink, HTTP browser and SNMP external control.
Can I add a media player to the PN-P436?
Yes. The compute module slot takes Raspberry Pi MPi4 and MPi5 kits, and the display also accepts Intel Smart Display Modules up to 66 W. Confirm the module type with Procure.ae before ordering.
What screen size and resolution does the PN-P436 have?
It has a 42.5-inch (108 cm) screen, which Sharp markets as a 43-inch display. The native resolution is 3840 x 2160 (4K UHD) at a 16:9 aspect ratio, and it also supports 1920 x 1080 and lower resolutions.
