SharpMeeting Room SolutionsSKU USB-C 5M

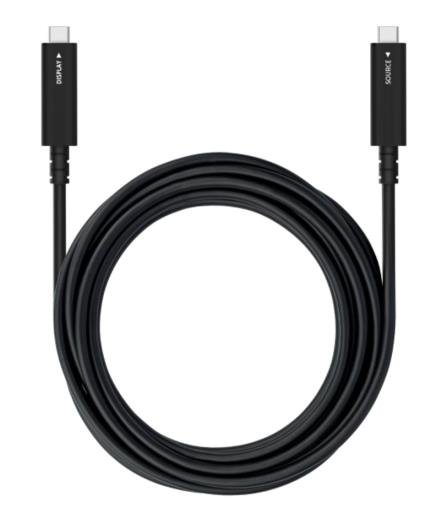

Sharp 5-metre USB-C Hybrid Optical Cable – USB-C 5M
The Sharp USB-C 5M is a 5-metre hybrid optical USB Type-C cable that carries 4K video at 60 Hz, touch signal, USB 2.0 data and up to 60 W power on one connector. It is built for bring-your-own-device meetings with Sharp interactive displays. Procure.ae, an authorised reseller, supplies the Sharp USB-C 5M across the UAE.
The USB-C 5M combines several functions in a single connector: 4K video, application data, touch signal and power delivery up to 60 W. The manufacturer specifies DisplayPort 1.4 alternate mode with four lanes and USB 2.0 for peripherals. Support for 4K at 60 Hz gives full-resolution picture performance, while USB 2.0 devices such as speakerphones and webcams are supported through the cable. The cable is 5 metres long with a 4.6 mm diameter and a 20 mm bend radius.
Resolution
3840 x 2160 (4K UHD) at 60 Hz
Type
USB-C Display Cable
- Single-cable connection
- 4K at 60 Hz
- USB 2.0 peripherals
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Single-cable connection
Carries 4K video, touch signal, application data and power on one USB Type-C connector
02
4K at 60 Hz
DisplayPort 1.4 alternate mode with four lanes
03
USB 2.0 peripherals
Speakerphones, webcams and other USB 2.0 devices are supported
04
Power delivery
Up to 60 W through the cable
05
Hybrid optical design
Built for the bring-your-own-device meeting use case
06
One-year warranty
1 year as stated by the manufacturer
Specifications
10 specificationsGeneral
Key FeaturesHybrid optical design, 4K at 60 Hz, DisplayPort 1.4 Alt Mode, USB 2.0 peripherals, touch signal, up to 60 W power delivery, 4.6 mm cable diameter, 20 mm bend radius
ModelUSB-C 5M
TypeUSB-C Display Cable
Display
Resolution3840 x 2160 (4K UHD) at 60 Hz
Connectivity
Cable StandardUSB Type-C, hybrid optical
Connector TypeUSB Type-C
ProtocolsDisplayPort 1.4 Alternate Mode (4 lane), USB 2.0
Power
Power Capacity (W)60 W
Physical
Length5 m
Compliance
Warranty1 year
Downloads
Manufacturer documents for the Sharp 5-metre USB-C Hybrid Optical Cable – USB-C 5M — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Sharp USB-C 5M carry video, touch and power?
Yes. The USB-C 5M carries 4K video, touch signal, application data and power delivery up to 60 W through one USB Type-C connector. The manufacturer specifies DisplayPort 1.4 alternate mode with four lanes for the video path.
Will USB 3.x devices run at full speed over this cable?
No. The manufacturer states that the USB-C 5M does not support USB 3.x speed-only devices. It provides USB 2.0 for peripherals such as speakerphones and webcams, and supports 4K at 60 Hz for video.
Is the USB-C 5M suitable for a 5-metre run?
Yes. The cable is 5 metres long, with a 4.6 mm diameter and a 20 mm bend radius. Measure the route in your room before ordering, and Procure.ae can advise on cable length for your installation.
Can I buy the USB-C 5M in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
