SharpMeeting Room SolutionsSKU Wall Mount PDW S 32-65 L

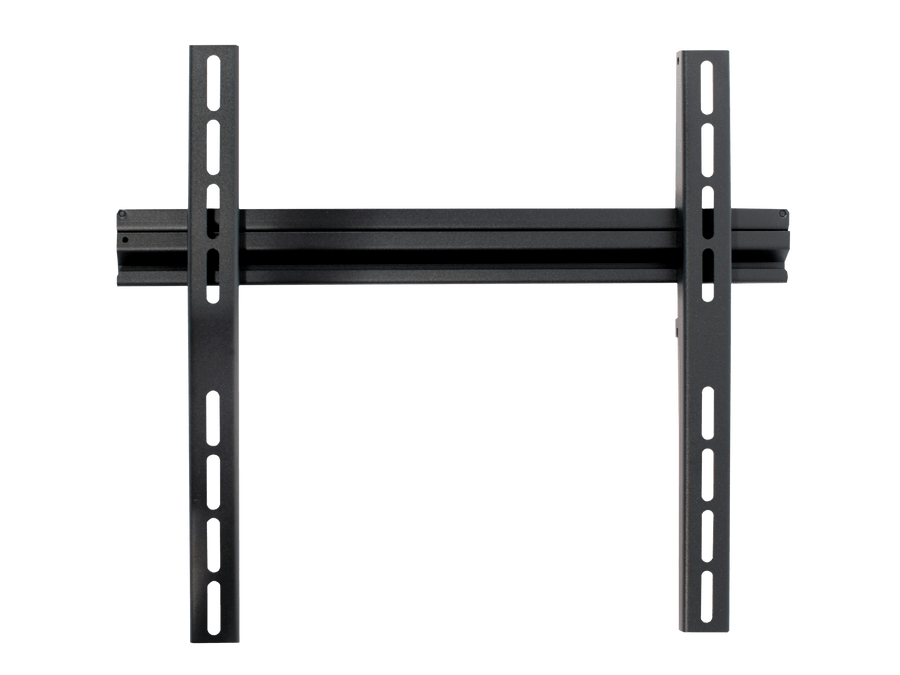

Sharp 32-to-65-inch Landscape VESA Wall Mount – Wall Mount PDW S 32-65 L
The Sharp Wall Mount PDW S 32-65 L is a fixed-tilt VESA wall mount for landscape displays from 32 to 65 inches. It holds up to 50 kg and supports 300 x 300, 400 x 200 and 400 x 400 mm patterns. Procure.ae, an authorised reseller, supplies it across the UAE.
The mount is a standardised VESA wall mount with a fixed tilt for landscape orientation, designed to hold the display securely against the wall. It weighs 1.5 kg and is rated for up to 50 kg. Three VESA patterns are supported: 300 x 300 mm, 400 x 200 mm and 400 x 400 mm. The kit includes a lock plate, a wall plate, two vertical plates with hooks, four M6 x 12 mm screws and four 6 x 19 x 1 mm washers. The manufacturer warranty is 3 years.
Type
Wall Mount
Weight
1.5 kg
- Fixed tilt
- Load rating
- VESA patterns
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Fixed tilt
locked landscape orientation for a secure hold.
02
Load rating
supports displays up to 50 kg.
03
VESA patterns
300 x 300, 400 x 200 and 400 x 400 mm.
04
Lock plate
included in the kit with the wall plate and hooks.
05
Display range
recommended for 32 to 65-inch displays.
06
Three-year warranty
the manufacturer warranty is 3 years.
Specifications
13 specificationsGeneral
Key FeaturesFixed landscape tilt, 50 kg max load, 32 to 65-inch range, VESA 300 x 300, 400 x 200 and 400 x 400 mm, lock plate included, 3-year warranty
ModelWall Mount PDW S 32-65 L
TypeWall Mount
What's in the BoxLock plate, wall plate, 2 vertical plates with hooks, 4 M6 x 12 mm screws, 4 washers 6 x 19 x 1 mm
Display
OrientationLandscape
Supported Screen Sizes32 to 65 inch
Physical
AdjustabilityFixed tilt
Load Capacity50 kg
MountingWall mount, single display
Shipping Dimensions510 x 63 x 43 mm
VESA Mount300 x 300, 400 x 200 and 400 x 400 mm
Weight1.5 kg
Compliance
Warranty3 years
Downloads
Manufacturer documents for the Sharp 32-to-65-inch Landscape VESA Wall Mount – Wall Mount PDW S 32-65 L — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which display sizes does the Wall Mount PDW S 32-65 L support?
It is recommended for displays from 32 to 65 inches, with a maximum load of 50 kg. Check that the display uses a 300 x 300, 400 x 200 or 400 x 400 mm VESA pattern before ordering, since those are the patterns the manufacturer lists.
Can the mount be used in portrait orientation?
No. The Wall Mount PDW S 32-65 L is listed for landscape orientation only. For portrait installation, check with Procure.ae which portrait-oriented mount suits your display. Procure.ae can confirm the right option before you order.
Can the tilt be adjusted?
No. The mount has a fixed tilt for landscape orientation, so tilt is not adjustable after fitting. The manufacturer describes it as a standardised VESA wall mount that holds the display securely once fitted.
