SennheiserMeeting Room SolutionsSKU TeamConnect Ceiling Medium CTFP-W

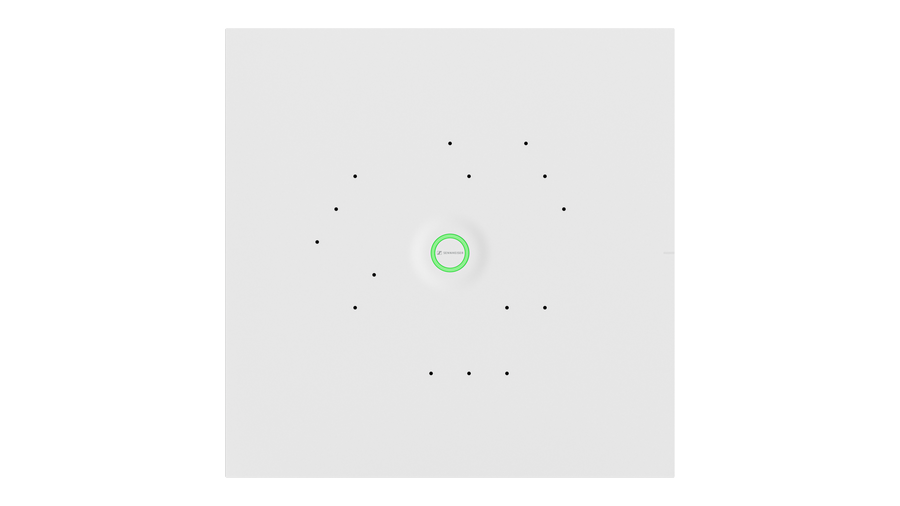

Sennheiser TeamConnect Ceiling Medium Replacement Ceiling Tile – CTFP-W
The Sennheiser TeamConnect Ceiling Medium CTFP-W (model code 700515) is a white replacement ceiling tile for the TeamConnect Ceiling Medium and TeamConnect Ceiling M Plus. It has RJ45 Dante connectors, Dante or analog output and PoE/PoE+ power. Procure.ae supplies it in the UAE.
According to the manufacturer, the CTFP-W is the replacement ceiling tile for the TeamConnect Ceiling Medium and TeamConnect Ceiling M Plus. The listing describes automatic dynamic beamforming, TruVoicelift and 15 SMD electret condenser capsules made in Germany. It offers Dante or analog output and PoE/PoE+ power with single or daisy-chained connections, plus single-cable mode. The listing also mentions an encrypted Sennheiser Sound Control Protocol API (SSCv2) with TLS 1.2. The product weight is 1.034 kg, and the manufacturer lists a 2-year warranty. Procure.ae is an authorised reseller of Sennheiser and supplies the tile across the UAE.
Type
Replacement Ceiling Tile
Weight
1.034 kg
- Dynamic beamforming
- Dante or analog output
- PoE/PoE+ power
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Dynamic beamforming
Patented automatic dynamic beamforming with TruVoicelift.
02
Dante or analog output
Choose Dante or analog output for audio.
03
PoE/PoE+ power
Powered over PoE or PoE+, with single or daisy-chained connections.
04
Encrypted control API
SSCv2 API with TLS 1.2 encryption.
05
Microsoft Teams certified
Certified for Microsoft Teams, with IEEE 802.1x support.
06
Paintable metal housing
The metal housing is easily paintable and the colour is white.
Specifications
13 specificationsGeneral
CompatibilityTeamConnect Ceiling Medium and TeamConnect Ceiling M Plus
Key FeaturesDynamic beamforming, TruVoicelift, Dante or analog output, PoE/PoE+ powered, Single-cable mode, Encrypted SSCv2 API (TLS 1.2), IEEE 802.1x, Certified for Microsoft Teams
ModelTeamConnect Ceiling Medium CTFP-W
TypeReplacement Ceiling Tile
Audio
Audio OutDante or analog output
Microphone TypeElectret condenser, 15 SMD capsules
Connectivity
Connector TypeRJ45 (Dante)
PoEPoE/PoE+ (single or daisy-chained)
ProtocolsIEEE 802.1x, Sennheiser Sound Control Protocol API (SSCv2) with TLS 1.2
Physical
ColorWhite
Weight1.034 kg
Compliance
CertificationsCertified for Microsoft Teams
Warranty2 years
Downloads
Manufacturer documents for the Sennheiser TeamConnect Ceiling Medium Replacement Ceiling Tile – CTFP-W — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which TeamConnect systems is the CTFP-W for?
It is the replacement ceiling tile for the TeamConnect Ceiling Medium and TeamConnect Ceiling M Plus, according to the manufacturer. The manufacturer's specifications do not state other compatible models. Confirm the model with Procure.ae when you request a quote.
Does the CTFP-W support Dante?
Yes. The manufacturer lists RJ45 Dante connectors and Dante or analog output. The connector is listed as RJ45 Dante, so the network must support Dante for that connection. Confirm the setup with your AV integrator before installation.
Does the CTFP-W work with Microsoft Teams?
Yes. The manufacturer says it is certified for Microsoft Teams and lists IEEE 802.1x support. It is powered by PoE or PoE+, so check that your network switch supports PoE or PoE+.
Can I buy the CTFP-W in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
