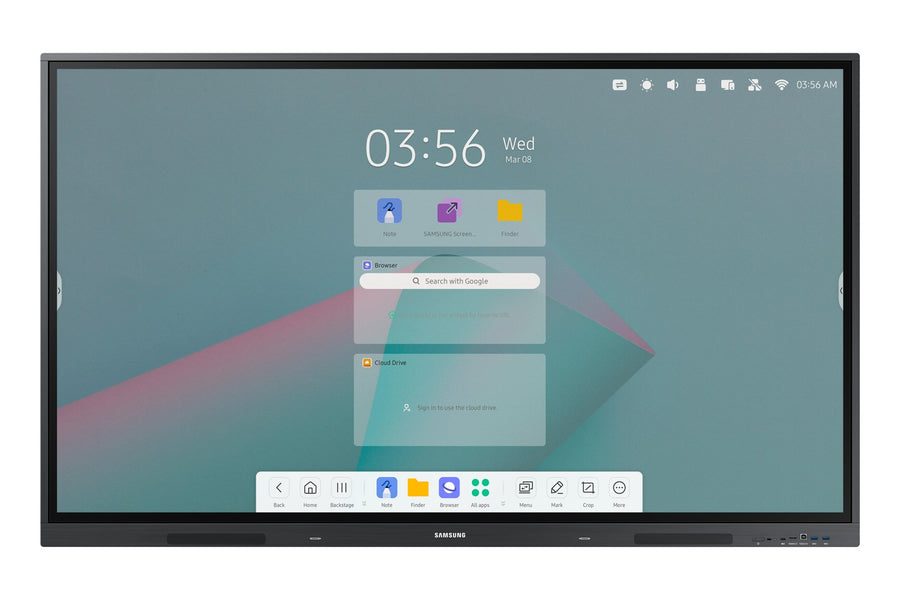

Samsung WAC Series 75-inch Interactive Flat Panel – WA75C
The Samsung WAC Series WA75C is a 75-inch interactive flat panel with 4K UHD resolution, infrared touch and Android 11. It suits classrooms, meeting rooms and training spaces. Procure.ae supplies the Samsung WA75C across the UAE, with delivery and installation.
The WA75C is a 75-inch panel using ADS technology with 3840 x 2160 (4K UHD) resolution, 400 nits typical brightness and a 1,200:1 contrast ratio. Its 178-degree viewing angles, 8 ms response time and 72% colour gamut are listed for the panel, with a 60 Hz vertical scan rate. Infrared touch is built in, and the product is rated for 16/7 operation.
The WA75C runs Android 11 with 32 GB of flash storage and includes Wi-Fi and Bluetooth. It has three HDMI inputs, five USB ports (one USB 2.0 and four USB 3.0), an IR input, stereo audio input and output, and RS232C control. Plan wall mounting around the 800 x 400 mm VESA pattern and 45.5 kg set weight. The 65-inch WA65C is the smaller model in the same WAC series.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits (typical)
Touch Technology
Infrared
- 4K UHD Panel
- Infrared Touch
- Android 11
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Panel
3840 x 2160 resolution on a 75-inch ADS panel.
02
Infrared Touch
infrared touch technology built into the panel.
03
Android 11
Android 11 operating system with 32 GB flash memory.
04
Brightness and Contrast
400 nits typical brightness and 1,200:1 contrast.
05
Connectivity
three HDMI inputs, five USB ports, IR input and RS232C control.
06
Network Ports
RJ45 input and output, plus Wi-Fi and Bluetooth.
07
Operation Hours
rated for 16/7 operation.
08
VESA Mounting
800 x 400 mm pattern for wall mounting.
Specifications
31 specificationsGeneral
Key Features4K UHD, 400 nits typical, 1,200:1 contrast, infrared touch, Android 11, 16/7 operation, Wi-Fi, Bluetooth
ModelWA75C
TypeInteractive Flat Panel
Display
Bezel Size16.4 mm (top and sides), 44.9 mm (bottom)
Brightness400 nits (typical)
Color Gamut72%
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Duty Cycle16/7 operation
Operating SystemAndroid 11
Storage32 GB
Connectivity
BluetoothYes
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, USB × 5 (USB 2.0 × 1, USB 3.0 × 4), IR In, Audio In and Out (stereo mini jack), RS232C In and Out, RJ45 In and Out
Wi-FiYes
Power
Power Consumption385 W (on mode)
Standby Power0.5 W (sleep mode)
Physical
Dimensions1709 x 1020 x 88 mm
FinishNon-glossy frame
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1863 x 1140 x 225 mm
Shipping Weight57.6 kg
VESA Mount800 x 400 mm
Weight45.5 kg
Downloads
Manufacturer documents for the Samsung WAC Series 75-inch Interactive Flat Panel – WA75C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Samsung WA75C?
The Samsung WAC Series WA75C is a 75-inch interactive flat panel with a 3840 x 2160 ADS panel, infrared touch and Android 11. It is the 75-inch model in the WAC series, and the 65-inch WA65C is the smaller size.
Does the WA75C support touch?
Yes. The WA75C uses infrared touch technology. The manufacturer's specifications do not state a touch point count, so ask Procure.ae to confirm the touch specification for your room setup before ordering.
Can the WA75C connect to a laptop or PC?
Yes. The WA75C has three HDMI inputs for a laptop or PC, plus five USB ports and RJ45 network ports. Wi-Fi and Bluetooth are also listed for the display, and the panel has stereo audio input and output.
Can the WA75C be wall mounted?
Yes. The WA75C uses an 800 x 400 mm VESA pattern. The set weighs 45.5 kg and the package weighs 57.6 kg, so confirm the wall structure, mount rating and delivery handling with your installer.
What is the WA75C used for?
The WA75C suits classrooms, meeting rooms and training rooms that need a 75-inch touch display running Android 11. It has a 4K UHD panel and is rated for 16/7 operation.
