Samsung WAC Series 75-inch Interactive Flat Panel – WA75C — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
Samsung · WA75C · Interactive Flat Panel

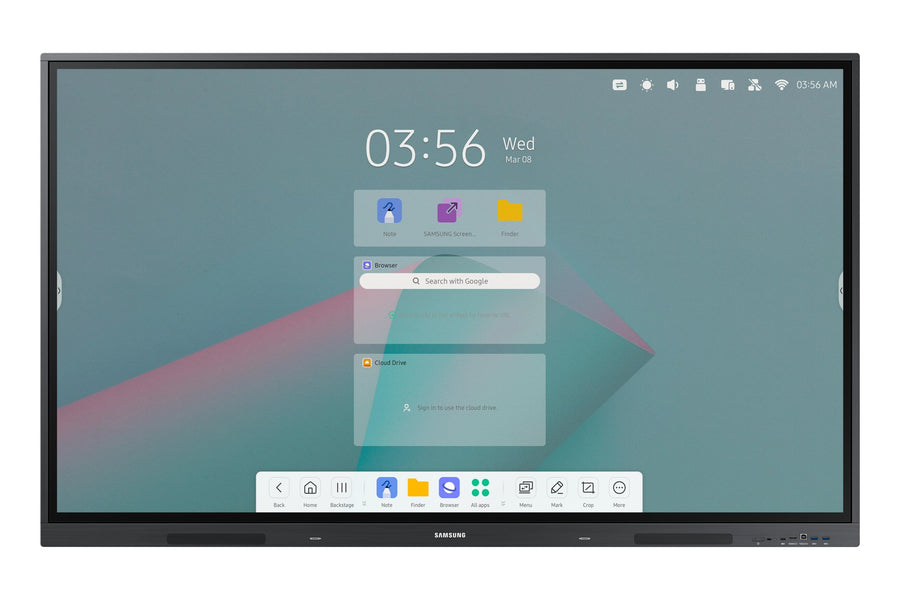

Samsung WAC Series 75-inch Interactive Flat Panel – WA75C

Samsung WAC Series 75-inch Interactive Flat Panel – WA75C

The Samsung WAC Series WA75C is a 75-inch interactive flat panel with 4K UHD resolution, infrared touch and Android 11. It suits classrooms, meeting rooms and training spaces. Procure.ae supplies the Samsung WA75C across the UAE, with delivery and installation.

The WA75C is a 75-inch panel using ADS technology with 3840 x 2160 (4K UHD) resolution, 400 nits typical brightness and a 1,200:1 contrast ratio. Its 178-degree viewing angles, 8 ms response time and 72% colour gamut are listed for the panel, with a 60 Hz vertical scan rate. Infrared touch is built in, and the product is rated for 16/7 operation.

The WA75C runs Android 11 with 32 GB of flash storage and includes Wi-Fi and Bluetooth. It has three HDMI inputs, five USB ports (one USB 2.0 and four USB 3.0), an IR input, stereo audio input and output, and RS232C control. Plan wall mounting around the 800 x 400 mm VESA pattern and 45.5 kg set weight. The 65-inch WA65C is the smaller model in the same WAC series.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits (typical)
Touch Technology
Infrared
Type
Interactive Flat Panel
Weight
45.5 kg

Key features

01
4K UHD Panel
3840 x 2160 resolution on a 75-inch ADS panel.
02
Infrared Touch
infrared touch technology built into the panel.
03
Android 11
Android 11 operating system with 32 GB flash memory.
04
Brightness and Contrast
400 nits typical brightness and 1,200:1 contrast.
05
Connectivity
three HDMI inputs, five USB ports, IR input and RS232C control.
06
Network Ports
RJ45 input and output, plus Wi-Fi and Bluetooth.
07
Operation Hours
rated for 16/7 operation.
08
VESA Mounting
800 x 400 mm pattern for wall mounting.

Specifications

General
Key Features4K UHD, 400 nits typical, 1,200:1 contrast, infrared touch, Android 11, 16/7 operation, Wi-Fi, Bluetooth
ModelWA75C
TypeInteractive Flat Panel
Display
Bezel Size16.4 mm (top and sides), 44.9 mm (bottom)
Brightness400 nits (typical)
Color Gamut72%
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Duty Cycle16/7 operation
Operating SystemAndroid 11
Storage32 GB
Connectivity
BluetoothYes
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, USB × 5 (USB 2.0 × 1, USB 3.0 × 4), IR In, Audio In and Out (stereo mini jack), RS232C In and Out, RJ45 In and Out
Wi-FiYes
Power
Power Consumption385 W (on mode)
Standby Power0.5 W (sleep mode)
Physical
Dimensions1709 x 1020 x 88 mm
FinishNon-glossy frame
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1863 x 1140 x 225 mm
Shipping Weight57.6 kg
VESA Mount800 x 400 mm
Weight45.5 kg
QR code to Samsung WAC Series 75-inch Interactive Flat Panel – WA75C on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
