SamsungFloor Standing KiosksSKU KM24A-P

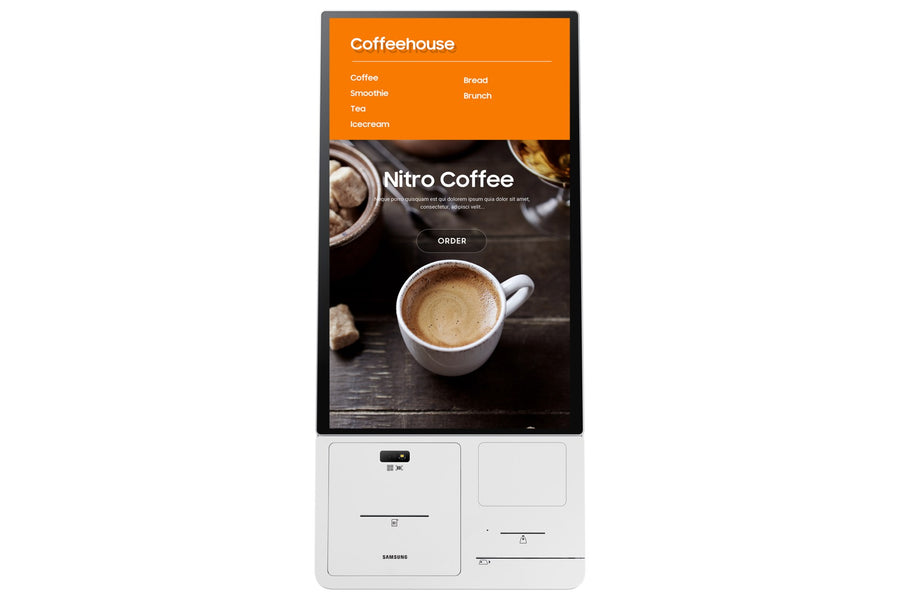

Samsung Smart Signage Kiosk 24-inch Connection Box – KM24A-P
The Samsung KM24A-P is a connection box for Samsung's 24-inch smart signage kiosk. It provides printing at up to 250 mm/sec with an automatic cutter, barcode reading and three USB ports. Procure.ae supplies the KM24A-P in the UAE for businesses, with quotes, delivery and installation.
The KM24A-P prints at up to 250 mm/sec and cuts paper automatically, with full-cut and partial-cut modes. It takes 80 mm paper rolls with a paper width of 20 to 83 mm and a thickness of 0.05 to 0.12 mm. It reads barcodes and QR codes shown on mobile screens or printed on paper, including UPC-A, EAN-13, Code 128, Code 39 and QR. Three USB ports provide connections for the kiosk. The unit runs on 100 to 240 V AC at 50/60 Hz, drawing 25 W in on mode and 0.5 W in sleep mode.
Type
Kiosk Connection Box
Weight
7.4 kg
- Fast printing
- Automatic cutting
- Barcode and QR reading
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Fast printing
Prints at up to 250 mm/sec on 80 mm paper rolls.
02
Automatic cutting
Supports full cut and partial cut modes.
03
Barcode and QR reading
Reads mobile-screen and printed 1D and 2D codes, including QR and GS1 DataBar.
04
Flexible paper range
Accepts 20 to 83 mm paper width and 0.05 to 0.12 mm thickness.
05
Three USB ports
Provides three USB connections for kiosk devices.
06
Compact housing
Measures 334.4 x 389.6 x 236.5 mm and weighs 7.4 kg, in gray and white.
Specifications
16 specificationsGeneral
Key Features250 mm/sec printing, automatic full and partial cutting, 1D and 2D barcode reading, 80 mm paper roll support, three USB ports
ModelKM24A-P
TypeKiosk Connection Box
Performance
Print Speed250 mm/sec
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsUSB × 3
Power
Power Consumption25 W (on mode), 0.5 W (sleep mode)
Physical
ColorGray White
Dimensions334.4 x 389.6 x 236.5 mm
Media Width20–83 mm
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Paper Size80 mm paper roll
Shipping Dimensions428 x 471 x 316 mm
Shipping Weight9.1 kg
Weight7.4 kg
Questions
Can’t find your answer? Ask on WhatsApp
What does the Samsung KM24A-P do?
It is a connection box for Samsung's 24-inch smart signage kiosk. The unit handles printing at up to 250 mm/sec with automatic cutting, and it provides three USB ports for kiosk connections. The manufacturer describes its modular design as supporting any payment type.
Does the KM24A-P take 80 mm receipt paper?
Yes. The manufacturer lists support for 80 mm paper rolls, with a paper width of 20 to 83 mm and a thickness of 0.05 to 0.12 mm. Automatic cutting supports both full cut and partial cut modes.
Which barcodes can the KM24A-P read?
It reads barcodes shown on mobile screens and printed barcodes in 1D and 2D formats. The manufacturer lists UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, GS1 DataBar, Codabar and QR.
