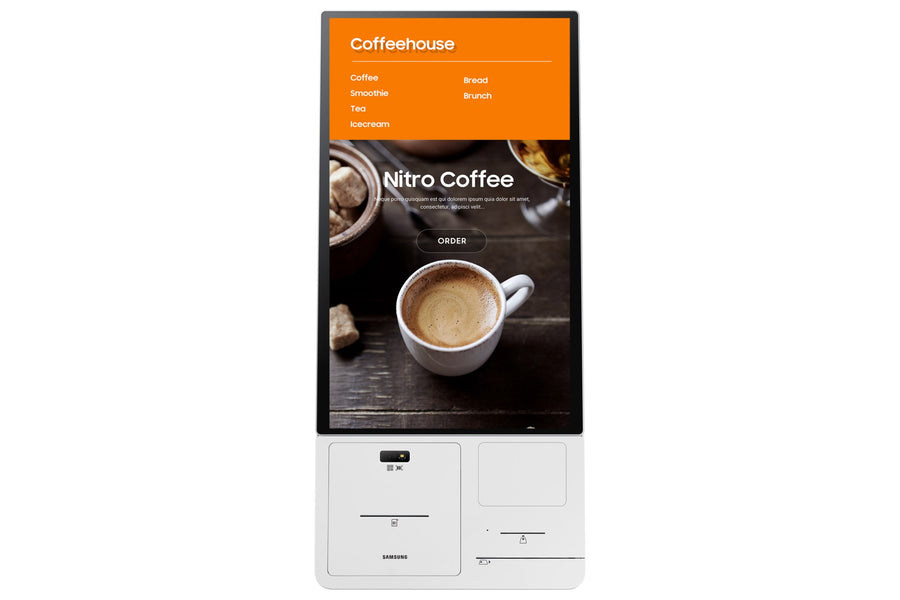

Samsung Smart Signage Kiosk 24-inch Connection Box – KM24A-P

The Samsung KM24A-P is a connection box for Samsung's 24-inch smart signage kiosk. It provides printing at up to 250 mm/sec with an automatic cutter, barcode reading and three USB ports. Procure.ae supplies the KM24A-P in the UAE for businesses, with quotes, delivery and installation.

The KM24A-P prints at up to 250 mm/sec and cuts paper automatically, with full-cut and partial-cut modes. It takes 80 mm paper rolls with a paper width of 20 to 83 mm and a thickness of 0.05 to 0.12 mm. It reads barcodes and QR codes shown on mobile screens or printed on paper, including UPC-A, EAN-13, Code 128, Code 39 and QR. Three USB ports provide connections for the kiosk. The unit runs on 100 to 240 V AC at 50/60 Hz, drawing 25 W in on mode and 0.5 W in sleep mode.

Type

Kiosk Connection Box

Weight

7.4 kg

Key features

Fast printing

Prints at up to 250 mm/sec on 80 mm paper rolls.

Automatic cutting

Supports full cut and partial cut modes.

Barcode and QR reading

Reads mobile-screen and printed 1D and 2D codes, including QR and GS1 DataBar.

Flexible paper range

Accepts 20 to 83 mm paper width and 0.05 to 0.12 mm thickness.

Three USB ports

Provides three USB connections for kiosk devices.

Compact housing

Measures 334.4 x 389.6 x 236.5 mm and weighs 7.4 kg, in gray and white.

Specifications

General
Key Features	250 mm/sec printing, automatic full and partial cutting, 1D and 2D barcode reading, 80 mm paper roll support, three USB ports
Model	KM24A-P
Type	Kiosk Connection Box

Performance
Print Speed	250 mm/sec

Connectivity
Input Voltage	100–240 V AC, 50/60 Hz
Ports	USB × 3

Power
Power Consumption	25 W (on mode), 0.5 W (sleep mode)

Physical
Color	Gray White
Dimensions	334.4 x 389.6 x 236.5 mm
Media Width	20–83 mm
Operating Humidity	10% to 80%
Operating Temperature	0 to 40 °C
Paper Size	80 mm paper roll
Shipping Dimensions	428 x 471 x 316 mm
Shipping Weight	9.1 kg
Weight	7.4 kg
