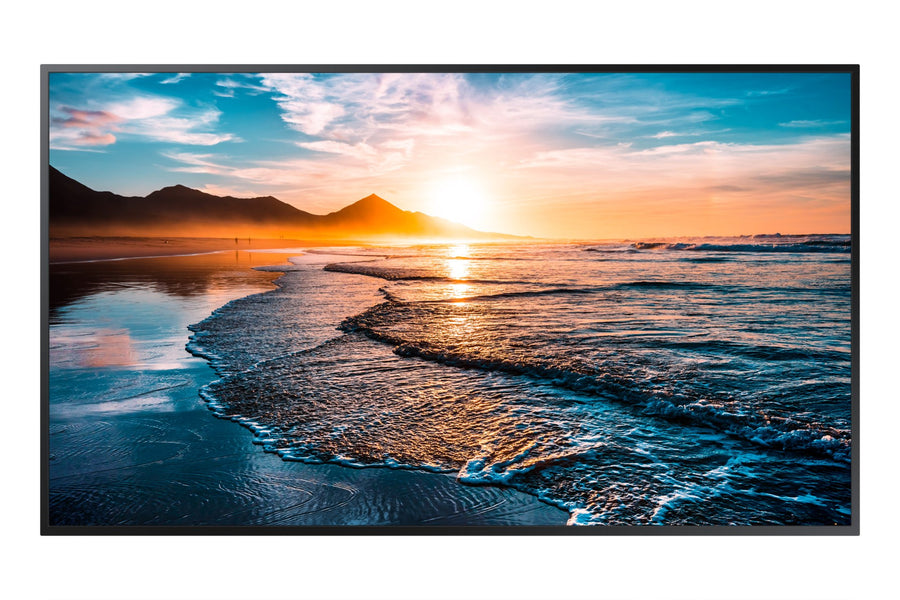

Samsung QHR Series 55-inch 4K UHD Digital Signage Display – QH55R
The Samsung QH55R (LH55QHREBGCXUE) is a 55-inch 4K UHD digital signage display for offices, lobbies and retail spaces. It has a 3840 x 2160 panel with 700 nits typical brightness, a 4,000:1 contrast ratio and 92% DCI-P3 colour gamut. Procure.ae, an authorised reseller, supplies the QH55R across the UAE.
The QH55R uses a New Edge panel with a 60 Hz refresh rate and 8 ms response time. Its 4,000:1 contrast ratio, with dynamic Mega Contrast, and 92% DCI-P3 colour gamut suit detailed content. Typical brightness is 700 nits, and the viewing angle is 178 degrees horizontal and vertical. UHD upscaling brings lower-resolution sources up to 4K picture quality, and Dynamic Crystal Color is included. Wi-Fi and Bluetooth are built in.
The QH55R suits business signage, menu boards and information screens, and it supports MagicInfo daisy-chain videowall configurations. It has IR In, RS232 In and Out, and RJ45 In for control, plus audio and video connections. Its 200 x 200 mm VESA pattern supports wall and stand mounts. Compared with the QH55H, the QH55R has a 60 Hz refresh rate and 92% DCI-P3 colour gamut, while the QH55H lists 120 Hz and 99% sRGB.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits
Type
Digital Signage Display
- MagicInfo videowall
- Dynamic Crystal Color
- Mega contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
MagicInfo videowall
daisy-chain videowall support for linked panels.
02
Dynamic Crystal Color
picture feature listed for the QHR Series.
03
Mega contrast
4,000:1 contrast ratio with dynamic Mega Contrast.
04
4K picture quality
3840 x 2160 resolution with UHD upscaling.
05
Slim design
non-glossy frame and 46.3 mm depth.
06
Control ports
IR In, RS232 In and Out, and RJ45 In.
07
Wireless connectivity
Wi-Fi and Bluetooth built in.
08
Wall and stand mounting
200 x 200 mm VESA pattern.
Specifications
25 specificationsGeneral
ControlsIR In, RS232 In/Out, RJ45 In
Key FeaturesMagicInfo daisy-chain videowall support, Dynamic Crystal Color, 4,000:1 Mega contrast, UHD upscaling, IR control, Wi-Fi and Bluetooth, 92% DCI-P3 colour gamut
ModelQH55R
TypeDigital Signage Display
Display
Bezel Size9.2 mm (top, left, right), 11.2 mm (bottom)
Brightness700 nits
Color Gamut92% DCI-P3
Contrast Ratio4,000:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio OutStereo mini jack
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In, DVI In × 1, USB × 2, IR In, RS232 In, RS232 Out, RJ45 In, Audio In, Audio Out (stereo mini jack), Video Out
Wi-FiBuilt-in
Power
Power Consumption160 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1235.1 x 707.9 x 46.3 mm
FinishNon-glossy frame
Operating Humidity10% to 80% RH, non-condensing
VESA Mount200 x 200 mm
Weight19.2 kg
Compliance
CertificationsFCC, CE, KCC, VCCI, CCC, BSMI, CB, SASO
Downloads
Manufacturer documents for the Samsung QHR Series 55-inch 4K UHD Digital Signage Display – QH55R — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Samsung QH55R used for?
The Samsung QH55R is a 55-inch 4K UHD digital signage display for business signage, information screens and menu boards. It has a 3840 x 2160 panel with 700 nits typical brightness and a 60 Hz refresh rate, and it supports MagicInfo daisy-chain videowall setups.
Can the Samsung QH55R be wall mounted?
Yes. The QH55R has a 200 x 200 mm VESA pattern, so it fits a VESA-compatible wall or stand mount. It weighs 19.2 kg without packaging, so check that the mount's load rating covers it. Procure.ae can arrange installation across the UAE.
Can the QH55R be used in a video wall?
Yes. The manufacturer lists MagicInfo daisy-chain videowall support for the QH55R, so several panels can be linked together. The bezels are 9.2 mm (top, left, right), 11.2 mm (bottom), which sets the gap between panels in a tiled layout. Procure.ae can arrange installation across the UAE.
What ports does the QH55R have?
It has two HDMI inputs, a DisplayPort input, a DVI input, two USB ports, IR In, RS232 In and Out, an RJ45 In port, an audio input, an audio output and a video output. Wi-Fi and Bluetooth are built in.
