SamsungDigital SignageSKU QH43B

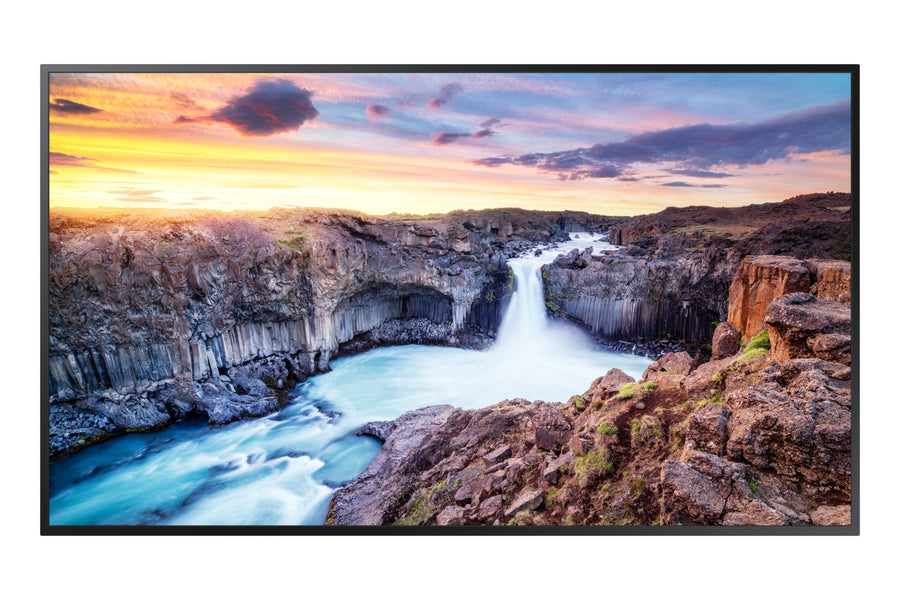

Samsung QHB Series 43-inch 4K High Brightness Digital Signage Display – QH43B
The Samsung QH43B is a 43-inch 4K UHD high-brightness digital signage display for retail windows, lobbies and point-of-sale areas. It has a VA panel rated at 700 nits typical brightness, a 4,000:1 contrast ratio and 24/7 operation. Procure.ae, an authorised reseller, supplies the Samsung QH43B across the UAE.
The QH43B, also listed as LH43QHBEBGCXUE, is a 43-inch 4K UHD display with a 3840 x 2160 VA panel. It delivers 700 nits typical brightness, a 4,000:1 contrast ratio and 92% DCI-P3 colour, with 178-degree viewing angles and an 8 ms response time. Mega dynamic contrast is included, and the display is rated for 24/7 operation. On-mode power consumption is 138 W, with 0.5 W in sleep mode.
The QH43B suits retail windows, menu boards, corporate reception walls and hospitality venues. Its ports include three HDMI In ports, one DisplayPort In, two USB ports, RS232 In and Out, RJ45 In and IR In, and it has built-in Wi-Fi and Bluetooth. Tizen 6.5 runs on 16 GB of flash memory. The 200 x 200 mm VESA pattern fits standard wall brackets. At 10.7 kg it is lighter than the 50-inch QH50B (14.5 kg) and the 55-inch QH55B (19.2 kg).
Screen Size
43 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits (typical)
Type
Digital Signage Display
- 700 nits brightness
- 4K UHD resolution
- 4,000:1 contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
700 nits brightness
700 nits typical brightness on a VA panel.
02
4K UHD resolution
3840 x 2160 pixels on a 43-inch screen.
03
4,000:1 contrast
Contrast ratio of 4,000:1 with Mega dynamic contrast.
04
92% DCI-P3 colour
92% DCI-P3 colour gamut coverage.
05
24/7 operation
Rated for round-the-clock operation.
06
Quantum Processor 4K
Quantum Processor 4K with SmartView+ features.
07
Control ports
RS232 In and Out, RJ45 In and IR In.
08
Wi-Fi and Bluetooth
Built-in wireless connectivity.
Specifications
34 specificationsGeneral
Key Features4K UHD, 700 nits, 4,000:1 contrast, 24/7 operation, Quantum Processor 4K, SmartView+, Wi-Fi, Bluetooth
ModelQH43B
TypeDigital Signage Display
Display
Bezel Size9.2 mm (top, left, right); 11.2 mm (bottom)
Brightness700 nits (typical)
Color Gamut92% (DCI-P3)
Contrast Ratio4,000:1
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size43 inch
Viewing Angle178° (H) / 178° (V)
Performance
Duty Cycle24/7
Operating SystemTizen 6.5
Storage16 GB flash memory
Audio
Audio OutStereo mini jack
DisplayPort1 input (DisplayPort 1.2)
Connectivity
BluetoothBuilt-in
EthernetRJ45 In
HDMI Inputs3 (HDMI 2.0)
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DP In × 1, USB × 2, RS232 In, RS232 Out, RJ45 In, IR In, stereo mini jack audio out
ProtocolsHDCP 2.2
Serial PortRS232 In, RS232 Out
Wi-FiBuilt-in
Power
Power Consumption138 W (on mode); 0.5 W (sleep mode)
Physical
Dimensions967.5 x 557.7 x 48.3 mm
FinishNon-glossy
Operating Humidity10% to 80% (non-condensing)
Shipping Dimensions1095 x 676 x 151 mm
Shipping Weight14 kg
VESA Mount200 x 200 mm
Weight10.7 kg
Compliance
CertificationsEMC Class B; Safety 60950-1, 62368-1; Energy efficiency class B
Downloads
Manufacturer documents for the Samsung QHB Series 43-inch 4K High Brightness Digital Signage Display – QH43B — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the QH43B used for?
The QH43B is a 43-inch 4K display for business signage. Typical uses include retail windows, menu boards, reception walls and wayfinding screens. Its 700 nits typical brightness and 24/7 operation suit busy indoor locations.
Does the QH43B support video wall setups?
The manufacturer specifications for the QH43B do not state video wall or daisychain support. Confirm the setup requirements with Procure.ae before planning a multi-screen wall. The 49-inch QH49R is listed with MagicInfo daisychain support.
What VESA mount does the QH43B use?
It uses a 200 x 200 mm VESA mount pattern. The set weighs 10.7 kg and measures 967.5 x 557.7 x 48.3 mm, so a standard wall bracket rated for that weight is suitable.
Can the QH43B be controlled over RS232 or a network?
Yes. It has RS232 In and RS232 Out ports, an RJ45 In port for wired networking and IR In for remote control signals. It also has built-in Wi-Fi and Bluetooth.
Which inputs does the QH43B have?
It has three HDMI 2.0 In ports and one DisplayPort 1.2 In. HDCP 2.2 is supported. The model has no Audio In port, but a stereo mini jack audio out is included.
