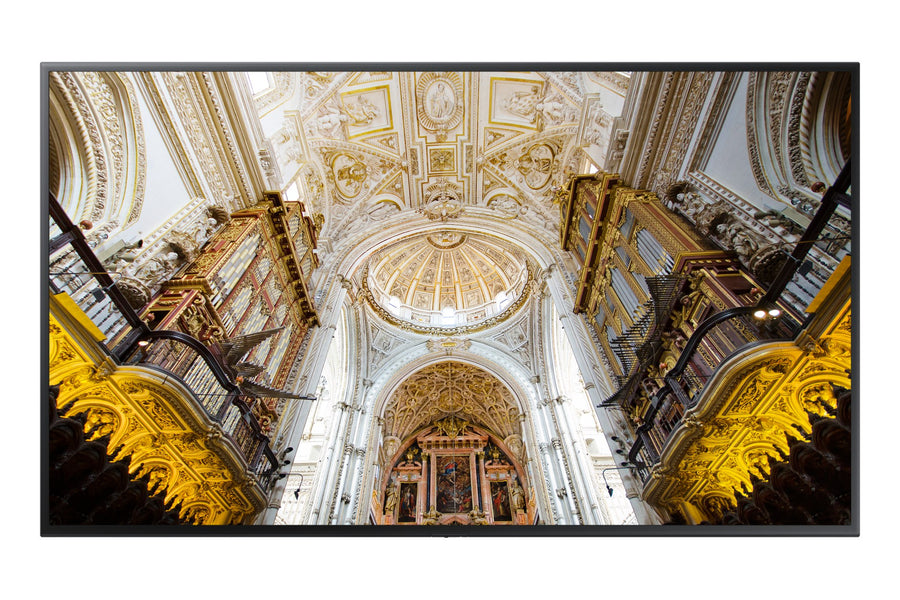

Samsung QB49N 49-inch 4K UHD digital signage displaySamsung

Samsung QBN Series 49-inch 4K UHD Digital Signage Display – QB49N

The Samsung QB49N is a 49-inch 4K UHD digital signage display for retail floors, corporate lobbies and public spaces. It offers 3840 x 2160 resolution, 350 nits typical brightness and a 4,700:1 contrast ratio, with Wi-Fi and RS232C control. Procure.ae supplies the QB49N across the UAE, with quotes, delivery and installation.

The QB49N, also listed as LH49QBNEBGC/UE, uses a 49-inch panel with 3840 x 2160 (4K UHD) resolution. Typical brightness is 350 nits, the contrast ratio is 4,700:1 and the viewing angle is 178 degrees horizontally and vertically. The response time is 8 ms typical at a 60 Hz refresh rate, and the display covers 72% of the color gamut. On-mode power consumption is 132 W and sleep-mode consumption is 0.5 W, with a set weight of 13.3 kg.

The QB49N suits lobbies, reception areas, corridors and retail floors where a larger wall-mounted screen shows menus, wayfinding or promotions. It mounts on a 200 x 200 mm VESA pattern and connects through two HDMI inputs, a DVI input, two USB ports, RS232C in and out, IR in, and RJ45 and Wi-Fi networking. Compared with the 43-inch QB43N, it has a larger screen but a lower contrast ratio, 4,700:1 against 5,000:1. Procure.ae supplies it as an authorised Samsung reseller.

Screen Size
49 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
  • 4K UHD Resolution
  • Wide Viewing Angles
  • Fast Motion Response
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD Resolution
3840 x 2160 pixels on a 49-inch panel with 350 nits typical brightness.
02
Wide Viewing Angles
178 degrees horizontal and vertical, with a 4,700:1 contrast ratio.
03
Fast Motion Response
An 8 ms typical response time at a 60 Hz refresh rate.
04
Wi-Fi and Wired Networking
Built-in Wi-Fi plus an RJ45 In port for network connection.
05
Serial and IR Control
RS232C In and Out ports plus IR In for control system integration.
06
Flexible Inputs
Two HDMI inputs, one DVI input, two USB ports and stereo audio in and out.
07
Wall Mounting
A 200 x 200 mm VESA pattern, 59.4 mm set depth and 13.3 kg set weight.
08
Power Profile
132 W power consumption in on mode and 0.5 W in sleep mode.

Specifications

21 specifications
General
ApplicationDigital signage
Key Features4K UHD resolution, 350 nits typical brightness, 4,700:1 contrast ratio, 60 Hz refresh rate, 8 ms response time, Wi-Fi, RS232C control
ModelQB49N
TypeDigital Signage Display
Display
Bezel Size10.5 mm (top and sides), 11.8 mm (bottom)
Brightness350 nits
Color Gamut72%
Contrast Ratio4,700:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size49 inch
Viewing Angle178° (H) / 178° (V)
Connectivity
ConnectivityWi-Fi
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DVI In, USB × 2, IR In, Audio In, Audio Out (stereo mini jack), RS232 In, RS232 Out, RJ45 In
Power
Power Consumption132 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1102.8 x 637.8 x 59.4 mm
Operating Humidity10% to 80% RH
VESA Mount200 x 200 mm
Weight13.3 kg

Questions

Can’t find your answer? Ask on WhatsApp

What are the resolution, brightness and contrast of the Samsung QB49N?
The QB49N has a 3840 x 2160 (4K UHD) resolution on a 49-inch panel. Its typical brightness is 350 nits and its contrast ratio is 4,700:1. The manufacturer lists an 8 ms typical response time and a 60 Hz refresh rate.
Does the QB49N support network and serial control?
Yes. The QB49N has built-in Wi-Fi and an RJ45 In port for wired networking. It also has RS232C In and Out ports and an IR In port, so it can be integrated into a control system.
Can the QB49N be wall mounted?
Yes. The QB49N uses a 200 x 200 mm VESA mounting pattern. Its set depth is 59.4 mm and its set weight is 13.3 kg, so confirm that the wall bracket and fixings are rated for that load before installation.
Can the QB49N be used in a video wall?
No. The manufacturer's specifications list no MagicInfo daisy-chain videowall support for the QB49N, so it is intended for standalone installations. Procure.ae can advise on a video wall display if your project needs one.
How much power does the QB49N use?
The QB49N uses 132 W in on mode and 0.5 W in sleep mode. It runs on 100 to 240 V AC at 50/60 Hz. The manufacturer's specifications do not state an energy efficiency rating for this model.
Can I buy the QB49N in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
