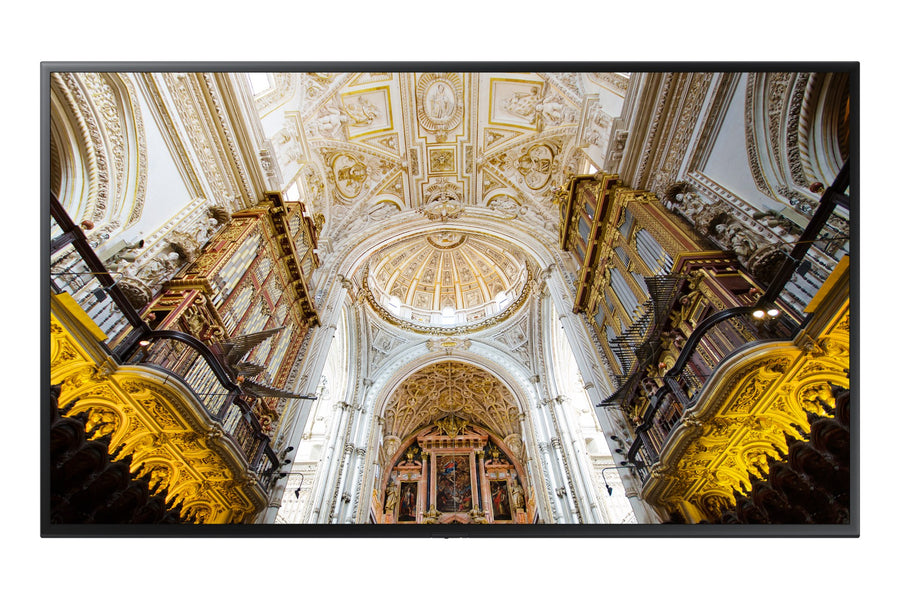

Samsung QB43N 43-inch 4K UHD digital signage displaySamsung

Samsung QBN Series 43-inch 4K UHD Digital Signage Display – QB43N

The Samsung QB43N is a 43-inch 4K UHD digital signage display for retail floors, corporate lobbies and public spaces. It offers 3840 x 2160 resolution, 350 nits typical brightness and a 5,000:1 contrast ratio, with Wi-Fi and RS232C control. Procure.ae supplies the QB43N across the UAE, with quotes, delivery and installation.

The QB43N, also listed as LH43QBNEBGC/UE, uses a 43-inch panel with 3840 x 2160 (4K UHD) resolution. Typical brightness is 350 nits, the contrast ratio is 5,000:1 and the viewing angle is 178 degrees horizontally and vertically. The response time is 8 ms typical at a 60 Hz refresh rate, and the display covers 72% of the color gamut. It carries an energy efficiency rating of B, with 121 W power consumption in on mode and 0.5 W in sleep mode.

The QB43N suits lobbies, reception areas, corridors and retail floors where a wall-mounted screen shows menus, wayfinding or promotions. It mounts on a 200 x 200 mm VESA pattern and connects through two HDMI inputs, a DVI input, two USB ports, RS232C in and out, IR in, and RJ45 and Wi-Fi networking. Compared with the 49-inch QB49N, it has a higher contrast ratio, 5,000:1 against 4,700:1. Procure.ae is an authorised reseller of Samsung.

Screen Size
43 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
  • 4K UHD Resolution
  • High Contrast Viewing
  • Fast Motion Response
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD Resolution
3840 x 2160 pixels on a 43-inch panel with 350 nits typical brightness.
02
High Contrast Viewing
A 5,000:1 contrast ratio with 178-degree horizontal and vertical viewing angles.
03
Fast Motion Response
An 8 ms typical response time at a 60 Hz refresh rate.
04
Wi-Fi and Wired Networking
Built-in Wi-Fi plus an RJ45 In port for network connection.
05
Serial and IR Control
RS232C In and Out ports plus IR In for control system integration.
06
Flexible Inputs
Two HDMI inputs, one DVI input, two USB ports and stereo audio in and out.
07
Wall Mounting
A 200 x 200 mm VESA pattern, 58.5 mm set depth and 9.9 kg set weight.
08
Energy Efficiency
Rated B, with 121 W power consumption in on mode and 0.5 W in sleep mode.

Specifications

21 specifications
General
ApplicationDigital signage
Key Features4K UHD resolution, 350 nits typical brightness, 5,000:1 contrast ratio, 60 Hz refresh rate, 8 ms response time, Wi-Fi, RS232C control, energy efficiency B
ModelQB43N
TypeDigital Signage Display
Display
Bezel Size10.5 mm (top and sides), 11.8 mm (bottom)
Brightness350 nits
Color Gamut72%
Contrast Ratio5,000:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size43 inch
Viewing Angle178° (H) / 178° (V)
Connectivity
ConnectivityWi-Fi
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DVI In, USB × 2, IR In, Audio In, Audio Out (stereo mini jack), RS232 In, RS232 Out, RJ45 In
Power
Power Consumption121 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions970.2 x 563.2 x 58.5 mm
Operating Humidity10% to 80% RH, non-condensing
VESA Mount200 x 200 mm
Weight9.9 kg

Questions

Can’t find your answer? Ask on WhatsApp

What are the resolution, brightness and contrast of the Samsung QB43N?
The QB43N has a 3840 x 2160 (4K UHD) resolution on a 43-inch panel. Its typical brightness is 350 nits and its contrast ratio is 5,000:1. The manufacturer lists an 8 ms typical response time and a 60 Hz refresh rate.
Does the QB43N support network and serial control?
Yes. The QB43N has built-in Wi-Fi and an RJ45 In port for wired networking. It also has RS232C In and Out ports and an IR In port, so it can be integrated into a control system.
Can the QB43N be wall mounted?
Yes. The QB43N uses a 200 x 200 mm VESA mounting pattern. Its set depth is 58.5 mm and its set weight is 9.9 kg, so confirm that the wall bracket and fixings are rated for that load before installation.
Can the QB43N be used in a video wall?
No. The manufacturer's specifications list no MagicInfo daisy-chain videowall support for the QB43N, so it is intended for standalone installations. Procure.ae can advise on a video wall display if your project needs one.
How much power does the QB43N use?
The QB43N uses 121 W in on mode and 0.5 W in sleep mode. It runs on 100 to 240 V AC at 50/60 Hz, and the manufacturer rates its energy efficiency as B.
Can I buy the QB43N in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
