Samsung QB65H 65-inch 4K UHD digital signage displaySamsung

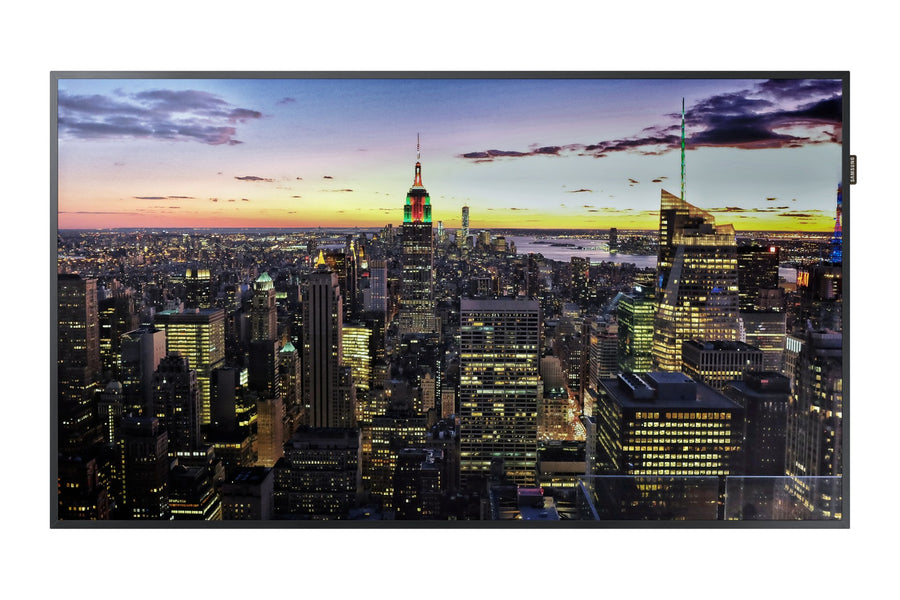

Samsung QBH Series 65-inch 4K UHD Digital Signage Display – QB65H

The Samsung QB65H is a 65-inch 4K UHD digital signage display for corporate, retail and hospitality spaces. It offers 3840 x 2160 resolution, 300 nits typical brightness and a 4,700:1 contrast ratio, with a DisplayPort input, Wi-Fi and RS232C control. Procure.ae supplies the QB65H across the UAE, with quotes, delivery and installation.

The QB65H, also listed as LH65QBHPLGC/UE, has a 65-inch edge-LED panel with 3840 x 2160 (4K UHD) resolution. Typical brightness is 300 nits, the contrast ratio is 4,700:1, and the viewing angle is 178 degrees horizontally and vertically. The response time is 8 ms typical at a 60 Hz refresh rate, and the display covers 72% of the color gamut. The set is 37.5 mm deep and draws 165 W in on mode and 0.5 W in sleep mode.

The QB65H suits corporate reception areas, meeting rooms, retail floors and hospitality lobbies where a wall-mounted display shows menus, wayfinding or information. It mounts on a 400 x 400 mm VESA pattern, larger than the 200 x 200 mm pattern used by the 43-inch to 55-inch QB models. Its inputs include HDMI, DisplayPort and DVI-D, with RS232C and RJ45 networking. Compared with the 75-inch QB75H, it is 10 inches smaller, draws far less power in on mode, and has a 60 Hz refresh rate against 120 Hz.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
300 nits
Type
Digital Signage Display
  • 4K UHD Resolution
  • Wide Viewing Angles
  • Fast Motion Response
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD Resolution
3840 x 2160 pixels on a 65-inch edge-LED panel with 300 nits typical brightness.
02
Wide Viewing Angles
178 degrees horizontal and vertical, with a 4,700:1 contrast ratio.
03
Fast Motion Response
An 8 ms typical response time at a 60 Hz refresh rate.
04
DisplayPort Input
A DisplayPort In alongside two HDMI inputs and one DVI-D input.
05
Wi-Fi and Wired Networking
Built-in Wi-Fi plus an RJ45 In port for network connection.
06
Serial and IR Control
RS232C In and Out ports plus IR In for control system integration.
07
Wall Mounting
A 400 x 400 mm VESA pattern, 37.5 mm set depth and 22.8 kg set weight.
08
Slim Frame
Bezels of 12.2 mm on the top, sides and bottom, with a non-glossy frame.

Specifications

22 specifications
General
ApplicationDigital signage
Key Features4K UHD resolution, 300 nits typical brightness, 4,700:1 contrast ratio, 60 Hz refresh rate, 8 ms response time, DisplayPort and HDMI inputs, Wi-Fi, RS232C control
ModelQB65H
TypeDigital Signage Display
Display
BacklightEdge LED
Bezel Size12.2 mm (top, sides and bottom)
Brightness300 nits
Color Gamut72%
Contrast Ratio4,700:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Viewing Angle178° (H) / 178° (V)
Connectivity
ConnectivityWi-Fi
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In, DVI-D In, USB × 2, IR In, Audio In, Audio Out (stereo mini jack), RS232 In, RS232 Out, RJ45 In
Power
Power Consumption165 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1456.1 x 835.6 x 37.5 mm
Operating Humidity10% to 80% RH
VESA Mount400 x 400 mm
Weight22.8 kg

Downloads

Manufacturer documents for the Samsung QBH Series 65-inch 4K UHD Digital Signage Display – QB65H — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What are the resolution and brightness of the Samsung QB65H?
The QB65H has a 3840 x 2160 (4K UHD) resolution on a 65-inch panel, with 300 nits typical brightness and a 4,700:1 contrast ratio. The manufacturer lists an 8 ms typical response time and a 60 Hz refresh rate.
Which inputs does the QB65H have?
It has two HDMI inputs, one DisplayPort input and one DVI-D input, plus two USB ports and stereo audio in and out. Wi-Fi and RJ45 In provide networking, and RS232C In and Out support serial control.
Can the QB65H be wall mounted?
Yes. The QB65H uses a 400 x 400 mm VESA mounting pattern. Its set depth is 37.5 mm and its set weight is 22.8 kg, so confirm that the wall bracket and fixings are rated for that load before installation.
Can the QB65H be used in a video wall?
No. The manufacturer's specifications list no MagicInfo daisy-chain videowall support for the QB65H, so it is intended for standalone installations. Procure.ae can advise on a video wall display if your project needs one.
How much power does the QB65H use?
The QB65H uses 165 W in on mode and 0.5 W in sleep mode. It runs on 100 to 240 V AC at 50/60 Hz. The manufacturer's specifications do not state an energy efficiency rating for this model.
