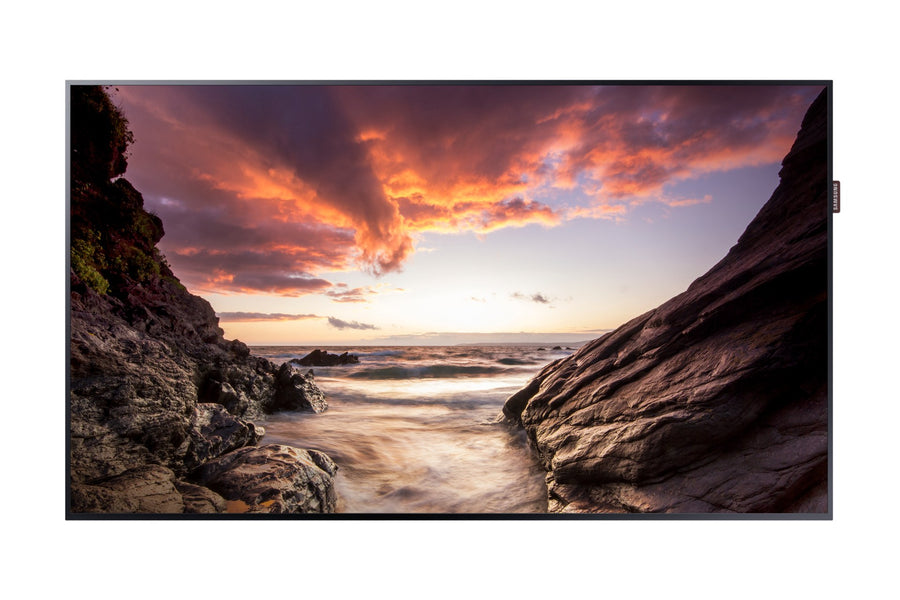

Samsung PHF Series 43-inch Full HD Digital Signage Display – PH43F-P
The Samsung PH43F-P is a 43-inch Full HD digital signage display with 700 nits typical brightness and Wi-Fi. It suits retail, hospitality and corporate information screens, and it supports MagicInfo daisy-chain videowalls. Procure.ae supplies the Samsung PH43F-P in the UAE.
The PH43F-P has a 43-inch 1920 x 1080 display with 700 nits typical brightness and a 3,000:1 contrast ratio. Its response time is 8 ms and colour gamut is 72%. The panel has a non-glossy frame with bezels of 6.9 mm at the top and sides and 8.9 mm at the bottom. Power draw is 154 W in on mode and 0.5 W in sleep mode, on a 100–240 V AC supply at 50/60 Hz, and the set weighs 9.5 kg.
Inputs include two HDMI, one DisplayPort, one DVI, one RGB (DVI-I common) input, two USB ports, audio in and audio out ports, RS232 in and out ports, and an RJ45 LAN input. MagicInfo daisy-chain videowall support is listed as Yes, so several units can be linked into one wall. Wi-Fi is supported, and the 200 x 200 mm VESA pattern supports wall mounting. The set measures 959.7 x 550.1 x 29.9 mm (W x H x D).
Screen Size
43 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits (typical)
Type
Digital Signage Display
- Full HD display
- Brightness
- Response time
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD display
A 1920 x 1080 resolution on a 43-inch screen.
02
Brightness
700 nits typical brightness and a 3,000:1 contrast ratio.
03
Response time
An 8 ms response time and 72% colour gamut.
04
Daisy-chain videowall
MagicInfo daisy-chain videowall support.
05
Wireless connection
Wi-Fi support.
06
Connectivity
Two HDMI, one DisplayPort, one DVI and one RGB input.
07
Serial and network control
RS232 in and out ports, and an RJ45 LAN input.
08
Bezels
6.9 mm at the top and sides, 8.9 mm at the bottom.
Specifications
23 specificationsGeneral
Key FeaturesFull HD 1920 x 1080 display, 700 nits typical brightness, 3,000:1 contrast ratio, MagicInfo daisy-chain videowall support, Wi-Fi, DisplayPort and DVI inputs, RS232 and RJ45 LAN control
ModelPH43F-P
TypeDigital Signage Display
Display
Bezel SizeTop 6.9 mm, sides 6.9 mm, bottom 8.9 mm
Brightness700 nits (typical)
Color Gamut72%
Contrast Ratio3,000:1
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size43 inch
Connectivity
EthernetRJ45 LAN input
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In × 1, DVI In × 1, USB × 2, RGB In (DVI-I common) × 1, Audio In (stereo mini-jack), Audio Out × 1, RS232 In × 1, RS232 Out × 1, RJ45 In × 1
Serial PortRS232 in and RS232 out
Wi-FiYes
Power
Power Consumption154 W (on mode)
Standby Power0.5 W (sleep mode)
Physical
Dimensions959.7 x 550.1 x 29.9 mm
FinishNon-glossy frame
Operating Humidity10% to 80% RH, non-condensing
VESA Mount200 x 200 mm
Weight9.5 kg
Compliance
CertificationsEMC Class A, 60950 safety
Questions
Can’t find your answer? Ask on WhatsApp
Can the PH43F-P be used in a videowall?
Yes. The PH43F-P has MagicInfo daisy-chain videowall support, so several units can be linked into one wall. Procure.ae can confirm the cabling and controller setup before you order.
Does the PH43F-P have Wi-Fi?
Yes. Wi-Fi is supported, and the display also has an RJ45 LAN input for wired network connection. Bluetooth is not supported.
How bright is the PH43F-P?
It has 700 nits typical brightness, a 3,000:1 contrast ratio, an 8 ms response time and 72% colour gamut. The panel resolution is 1920 x 1080.
Can the PH43F-P be wall-mounted?
Yes. It has a 200 x 200 mm VESA mounting pattern and weighs 9.5 kg. Confirm the bracket and wall rating before installation, and Procure.ae can arrange installation across the UAE.
Can the PH43F-P be controlled over RS232 or a network?
Yes. It has RS232 in and out ports and an RJ45 LAN input, so it can be controlled through a serial link or managed over the network.
