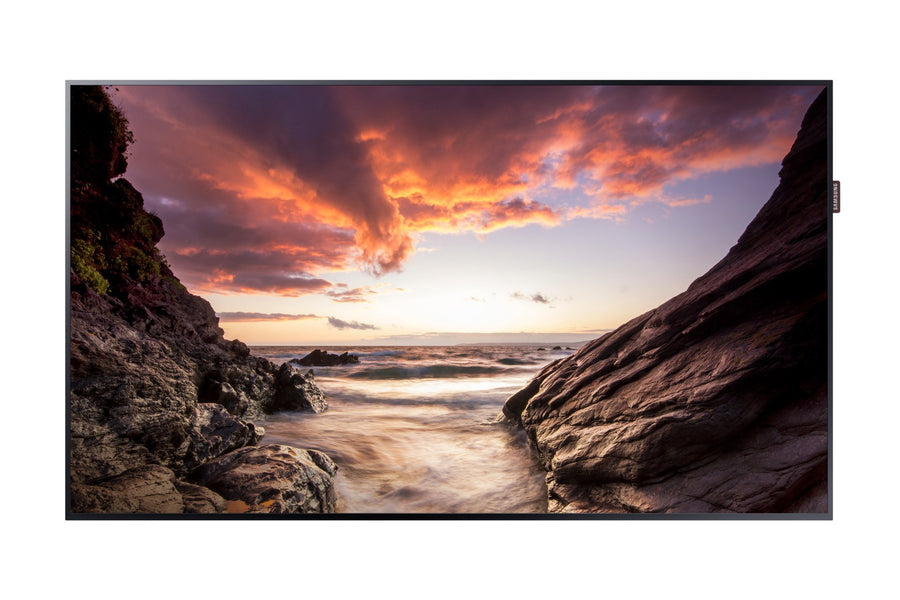

Samsung PH43F 43-inch digital signage displaySamsung

Samsung PHF Series 43-inch Full HD Digital Signage Display – PH43F

The Samsung PH43F is a 43-inch Full HD digital signage display with 700 nits brightness, 10-bit colour and an 8 ms response time. It suits retail, hospitality and corporate information screens, with MagicInfo support and 10 W x 2 built-in speakers. Procure.ae supplies the Samsung PH43F in the UAE.

The PH43F has a 43-inch 1920 x 1080 display (16:9) with 700 nits brightness, a 3,000:1 contrast ratio and MEGA dynamic contrast. Its 60 Hz E-LED backlight and 8 ms response time support 10-bit colour with dithering, giving 1.07 billion colours, and a 72% colour gamut. It has 10 W x 2 speakers. Power draw is 108 W typical and 154 W maximum, with under 0.5 W in sleep mode.

Inputs include two HDMI, one DisplayPort, one DVI, one RGB (D-Sub DVI-I common) input, two USB ports, audio in and audio out stereo mini-jacks, RS232 in and out ports and an RJ45 LAN input. The DisplayPort 1.2 loop-out lets the signal pass to another display. MagicInfo is supported, and the package includes a remote controller, power cord, batteries and RS232C adapter. Bezels measure 6.9 mm at the top and sides and 8.9 mm at the bottom, and a 200 x 200 mm VESA pattern supports wall mounting.

Screen Size
43 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits
Type
Digital Signage Display
  • Full HD display
  • Brightness
  • Colour depth
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Full HD display
A 1920 x 1080 (16:9) resolution on a 43-inch screen.
02
Brightness
700 nits brightness with an E-LED backlight.
03
Colour depth
10-bit colour with dithering, giving 1.07 billion colours.
04
Built-in speakers
Two 10 W speakers.
05
MagicInfo
MagicInfo support for content management.
06
Connectivity
HDMI, DisplayPort, DVI and RGB inputs.
07
Serial and network control
RS232 in and out ports, and an RJ45 LAN input.
08
Bezels
6.9 mm at the top and sides, 8.9 mm at the bottom.

Specifications

27 specifications
General
Key FeaturesFull HD 1920 x 1080 (16:9) panel, 700 nits brightness, 10-bit colour with dithering, 10 W x 2 speakers, MagicInfo support, DisplayPort 1.2 loop-out, RS232 control, RJ45 LAN input
ModelPH43F
TypeDigital Signage Display
What's in the BoxQuick setup guide, regulatory guide, power cord, remote controller, batteries, RS232C adapter, cover jack
Display
Aspect Ratio16:9
Backlight60 Hz E-LED
Bezel SizeTop 6.9 mm, sides 6.9 mm, bottom 8.9 mm
Brightness700 nits
Color Depth10-bit (dithered), 1.07 billion colours
Color Gamut72%
Contrast Ratio3,000:1
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size43 inch
Audio
Audio OutStereo mini-jack
Speaker Output10 W x 2
Connectivity
EthernetRJ45 LAN input
PortsHDMI In × 2, DisplayPort In × 1, DVI In × 1, USB × 2, RGB In (DVI-I) × 1, Audio In, Audio Out (stereo mini-jack), DisplayPort 1.2 loop-out, RS232 In × 1, RS232 Out × 1, RJ45 In × 1
Serial PortRS232 in and RS232 out
Power
Power Consumption108 W typical, 154 W maximum (on mode)
Standby PowerLess than 0.5 W (sleep mode)
Physical
Dimensions959.7 x 550.1 x 29.9 mm
Operating Humidity10% to 80% RH, non-condensing
VESA Mount200 x 200 mm
Weight9.4 kg
Compliance
CertificationsFCC Part 15 Class A, CE EMC, CB (IEC 60950-1)

Questions

Can’t find your answer? Ask on WhatsApp

Does the PH43F have built-in speakers?
Yes. It has two 10 W speakers. The audio out is a stereo mini-jack for external sound, and audio in is supported from RGB, DVI, DisplayPort and HDMI sources.
Can the PH43F be managed over a network?
Yes. It has an RJ45 LAN input, RS232 in and out ports and MagicInfo support for content management.
How bright is the PH43F?
It has 700 nits brightness, a 3,000:1 contrast ratio and an 8 ms response time. The panel is 1920 x 1080 with 10-bit colour and dithering.
Can the PH43F be wall-mounted?
Yes. It has a 200 x 200 mm VESA mounting pattern and weighs 9.4 kg. Confirm the bracket and wall rating before installation, and Procure.ae can arrange installation across the UAE.
Can I connect multiple displays to the PH43F?
Yes. A DisplayPort 1.2 loop-out passes the signal on to another display.
Can I buy the PH43F in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
