SamsungDigital SignageSKU OH46B

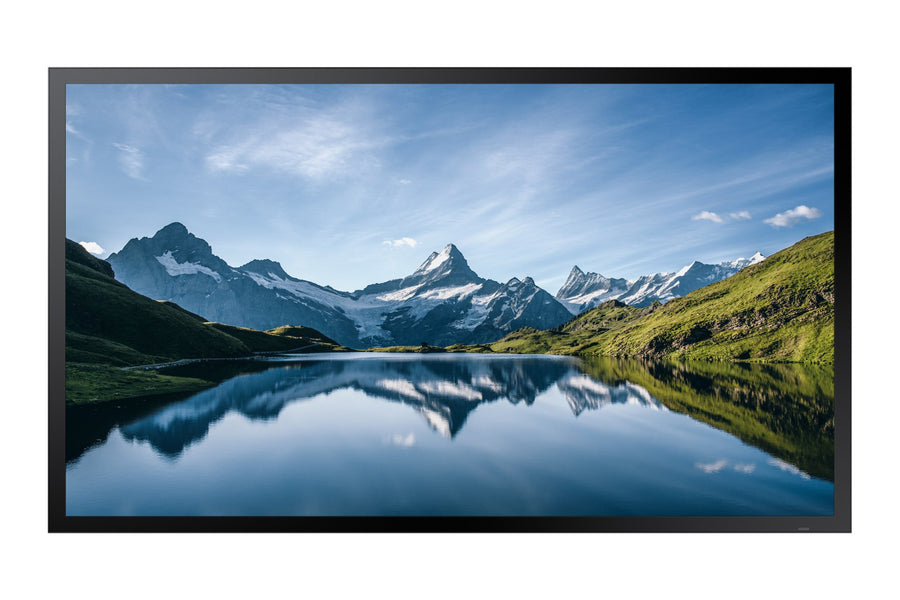

Samsung Outdoor Signage 46-inch Digital Signage Display – OH46B
The Samsung OH46B is a 46-inch outdoor signage display with 3,500 nits typical brightness, 1920 x 1080 Full HD resolution and 24/7 operation. It suits business signage that must stay readable in high ambient light. Procure.ae supplies the Samsung OH46B in the UAE, with quotes, delivery and installation across the UAE.
The OH46B uses a VA panel with 3,500 nits typical brightness (4,000 nits peak), a 6,000:1 contrast ratio and a 6 ms response time. The 5T protective glass carries anti-glare and anti-reflection film. The display covers 72% NTSC colour gamut, with 178° horizontal and 178° vertical viewing angles. Its Full HD 1920 x 1080 resolution and 24/7 operation support continuous playback. The Samsung model code is LH46OHBEBGBXUE.
The OH46B runs Tizen 5.0 with 8 GB flash memory. Its inputs are two HDMI, one HDBaseT and one USB port, and its RS232 and RJ45 ports allow control and network connection. Dimensions are 1069 x 623.6 x 85 mm with a 36 kg set weight, and it mounts on a 995 x 500 mm VESA pattern. Power draw is 430 W in on mode and 0.5 W in sleep mode, so plan the wall structure for the 36 kg weight.
Screen Size
46 inch
Resolution
1920 x 1080 (Full HD)
Brightness
3500 nits typical (4000 nits peak)
Type
Outdoor Digital Signage Display
- High brightness
- Full HD VA panel
- Fast response
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
High brightness
3,500 nits typical and 4,000 nits peak brightness.
02
Full HD VA panel
1920 x 1080 resolution with a 6,000:1 contrast ratio.
03
Fast response
6 ms response time with 178° viewing angles.
04
Protective glass
5T glass with anti-glare and anti-reflection film.
05
Continuous operation
rated for 24/7 operation.
06
Video inputs
two HDMI inputs (HDMI version 2, HDCP 2.2) and an HDBaseT input.
07
Control and network
RS232 in and out and RJ45 in and out ports.
08
Mounting
995 x 500 mm VESA pattern and 36 kg set weight.
Specifications
23 specificationsGeneral
Key FeaturesAnti-glare and anti-reflection glass, 5T protective glass, Full HD VA panel, 3500 nits typical brightness, 24/7 operation, HDBaseT input, RS232 and RJ45 control, Tizen 5.0
ModelOH46B
TypeOutdoor Digital Signage Display
Display
Bezel Size24.9 mm (top, bottom, left, right)
Brightness3500 nits typical (4000 nits peak)
Color GamutNTSC 72%
Contrast Ratio6,000:1
Panel TechnologyVA
Resolution1920 x 1080 (Full HD)
Response Time6 ms
Screen Size46 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Duty Cycle24/7 operation
Operating SystemTizen 5.0
Storage8 GB flash memory
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, HDBaseT In × 1, USB × 1, Audio Out (stereo mini jack), RS232 In/Out, RJ45 In/Out
Power
Power Consumption430 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1069 x 623.6 x 85 mm
Operating Humidity10% to 80%, non-condensing
VESA Mount995 x 500 mm
Weight36 kg
Compliance
CertificationsEMC Class A, Safety 60950-1
Downloads
Manufacturer documents for the Samsung Outdoor Signage 46-inch Digital Signage Display – OH46B — datasheets, manuals, drawings and certificates.
- User manual – Outdoor Signage OH46B
- User manual – Outdoor Signage OH46B (Arabic)
- Quick start guide – Outdoor Signage OH46B – BN68-13500H-00 QSG OH46B OH46B-S NA ZB L03 230203.
- Quick start guide – Outdoor Signage OH46B – BN68-13500J-00 QSG OHB OHB-S EU L25 221020.0
- Quick start guide – Outdoor Signage OH46B – BN68-13500L-00 QSG OHB OHB-S ASIA MENA AFRICA L06
Questions
Can’t find your answer? Ask on WhatsApp
Is the Samsung OH46B suitable for outdoor use?
Yes. The OH46B is an outdoor signage model with 3,500 nits typical brightness, anti-reflection glass and a 24/7 operation rating. The manufacturer's specifications do not state an IP rating, so confirm the enclosure requirements with Procure.ae before outdoor installation.
Does it support HDBaseT and HDMI inputs?
Yes. It has an HDBaseT input and two HDMI inputs, with HDMI version 2 and HDCP 2.2 support. It also has one USB port, a stereo mini audio output, and RS232 and RJ45 connections.
What VESA mount and weight does it need?
The VESA mount pattern is 995 x 500 mm. The set weighs 36 kg and the package weighs 40.5 kg. Confirm that the wall or mounting structure can carry that weight before installation.
Can it be controlled over a network or serial connection?
Yes. It has RS232 in and out ports and RJ45 in and out ports for control and networking. Confirm the control protocol you need with Procure.ae before installation, so the unit fits your existing system.
What viewing distance suits a 46-inch display?
The manufacturer's specifications do not state a recommended viewing distance. Procure.ae can advise on placement, brightness and viewing angle for your location, and on the enclosure needed for the site.
Can I buy the OH46B in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
