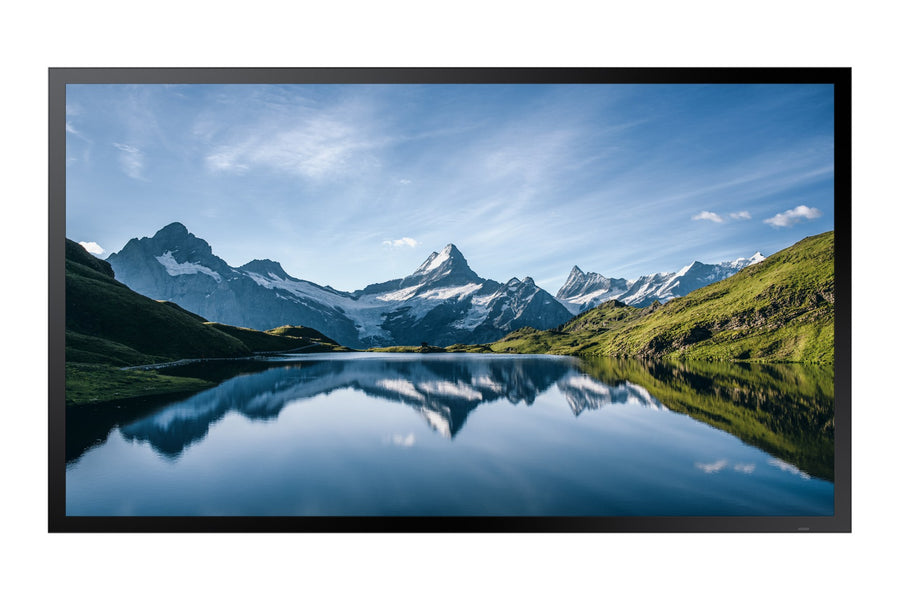

Samsung Outdoor Signage 46-inch Digital Signage Display – OH46B
The Samsung OH46B is a 46-inch outdoor signage display with 3,500 nits typical brightness, 1920 x 1080 Full HD resolution and 24/7 operation. It suits business signage that must stay readable in high ambient light. Procure.ae supplies the Samsung OH46B in the UAE, with quotes, delivery and installation across the UAE.
The OH46B uses a VA panel with 3,500 nits typical brightness (4,000 nits peak), a 6,000:1 contrast ratio and a 6 ms response time. The 5T protective glass carries anti-glare and anti-reflection film. The display covers 72% NTSC colour gamut, with 178° horizontal and 178° vertical viewing angles. Its Full HD 1920 x 1080 resolution and 24/7 operation support continuous playback. The Samsung model code is LH46OHBEBGBXUE.
The OH46B runs Tizen 5.0 with 8 GB flash memory. Its inputs are two HDMI, one HDBaseT and one USB port, and its RS232 and RJ45 ports allow control and network connection. Dimensions are 1069 x 623.6 x 85 mm with a 36 kg set weight, and it mounts on a 995 x 500 mm VESA pattern. Power draw is 430 W in on mode and 0.5 W in sleep mode, so plan the wall structure for the 36 kg weight.
Key features
Specifications
| Key Features | Anti-glare and anti-reflection glass, 5T protective glass, Full HD VA panel, 3500 nits typical brightness, 24/7 operation, HDBaseT input, RS232 and RJ45 control, Tizen 5.0 |
| Model | OH46B |
| Type | Outdoor Digital Signage Display |
| Bezel Size | 24.9 mm (top, bottom, left, right) |
| Brightness | 3500 nits typical (4000 nits peak) |
| Color Gamut | NTSC 72% |
| Contrast Ratio | 6,000:1 |
| Panel Technology | VA |
| Resolution | 1920 x 1080 (Full HD) |
| Response Time | 6 ms |
| Screen Size | 46 inch |
| Viewing Angle | 178° horizontal / 178° vertical |
| Duty Cycle | 24/7 operation |
| Operating System | Tizen 5.0 |
| Storage | 8 GB flash memory |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI In × 2, HDBaseT In × 1, USB × 1, Audio Out (stereo mini jack), RS232 In/Out, RJ45 In/Out |
| Power Consumption | 430 W (on mode), 0.5 W (sleep mode) |
| Dimensions | 1069 x 623.6 x 85 mm |
| Operating Humidity | 10% to 80%, non-condensing |
| VESA Mount | 995 x 500 mm |
| Weight | 36 kg |
| Certifications | EMC Class A, Safety 60950-1 |
