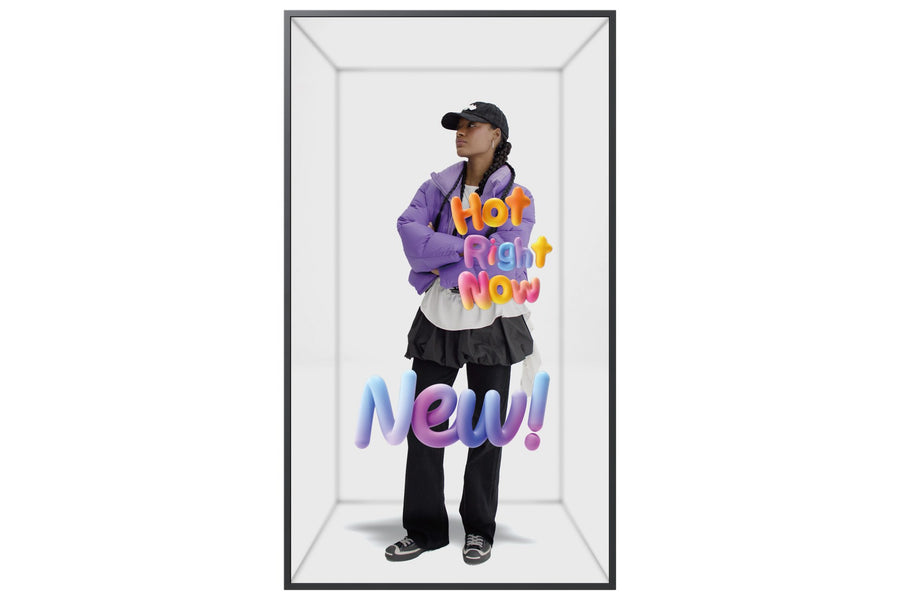

Samsung 85-inch SM85HX-P 4K Spatial Signage Display – SM85HX-P
The Samsung SM85HX-P is an 85-inch 4K UHD (3840 x 2160) spatial signage display for large retail, hospitality and corporate spaces that run continuously. It offers 500 nits typical brightness, a 4,000:1 contrast ratio and Tizen 7.0 with Wi-Fi. Procure.ae supplies the Samsung SM85HX-P in the UAE with delivery and installation.
The Samsung SM85HX-P is an 85-inch 4K UHD (3840 x 2160) spatial signage display with a VA panel. It provides 500 nits typical brightness, a 4,000:1 contrast ratio and a 178-degree viewing angle horizontally and vertically. The 8 ms response time and 72% NTSC colour coverage support detailed video and motion content. The manufacturer lists Mega dynamic contrast and 24/7 operation support, with 16 GB of storage on the Tizen 7.0 operating system.
The SM85HX-P fits large retail walls, hospitality areas and corporate lobbies that need a 4K screen running continuously. It has three HDMI inputs, one DisplayPort input, Wi-Fi, Bluetooth and an RJ45 network port, with RS232 and IR control for integration. It mounts on a 400 x 600 mm VESA pattern. The 55-inch SM55HX-P is the smaller 4K model in the same range, and it draws 190 W typical on-mode power against 440 W for the SM85HX-P.
Screen Size
85 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Spatial Signage Display
- 4K UHD Resolution
- Wide Viewing Angle
- 24/7 Operation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Resolution
3840 x 2160 pixels on an 85-inch VA panel.
02
Wide Viewing Angle
178 degrees horizontal and vertical viewing angle.
03
24/7 Operation
Operation time support rated at 24/7 by the manufacturer.
04
Multiple Inputs
Three HDMI inputs and one DisplayPort input (HDCP 2.2).
05
Wireless Connectivity
Wi-Fi and Bluetooth built in, with an RJ45 network port.
06
Control Options
RS232 in and out ports and an IR input for control.
07
Tizen 7.0 Platform
Built-in Tizen 7.0 operating system with 16 GB storage.
Specifications
23 specificationsGeneral
Key Features24/7 operation support, Mega dynamic contrast, HDCP 2.2, Wi-Fi and Bluetooth, RS232 and IR control, Tizen 7.0 OS, Non-glossy frame, Energy class B
ModelSM85HX-P
TypeSpatial Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Color Gamut72%
Contrast Ratio4,000:1
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85 inch
Viewing Angle178° / 178°
Performance
Operating SystemTizen 7.0
Storage16 GB
Connectivity
BluetoothBluetooth
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, USB × 2, RJ45 In × 1, RS232 In × 1, RS232 Out × 1, IR In × 1, Stereo Mini Jack audio out
Wi-FiWi-Fi
Power
Power Consumption440 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1101.2 x 1920.2 x 52.0 mm
Operating Humidity10% to 80% RH, non-condensing
VESA Mount400 x 600 mm
Weight49.0 kg
Downloads
Manufacturer documents for the Samsung 85-inch SM85HX-P 4K Spatial Signage Display – SM85HX-P — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Samsung SM85HX-P?
The Samsung SM85HX-P is an 85-inch 4K UHD spatial signage display. It is designed for large commercial screens that run continuously, such as retail walls, hospitality areas and corporate lobbies.
Is the SM85HX-P a 4K display?
Yes. The SM85HX-P has a 3840 x 2160 resolution, which is 4K UHD, on an 85-inch VA panel. It has a 178-degree viewing angle horizontally and vertically and an 8 ms response time, which suits large-format video and motion content in commercial spaces.
Is the SM85HX-P rated for 24/7 operation?
Yes. The manufacturer lists 24/7 operation support for the SM85HX-P, which allows continuous use in commercial environments. The display draws 440 W typical in on mode and 0.5 W in sleep mode, and it includes Mega dynamic contrast.
What inputs and control options does the SM85HX-P have?
The SM85HX-P has three HDMI inputs, one DisplayPort input, two USB ports, an RJ45 network input, RS232 in and out ports, and an IR input. These support network, serial and infrared control.
How is the SM85HX-P mounted?
The SM85HX-P has a 400 x 600 mm VESA pattern and weighs 49.0 kg. Because of its size and weight, mounting should be planned with a structural bracket. Procure.ae can advise on installation.
