SamsungDigital SignageSKU SH37R-B

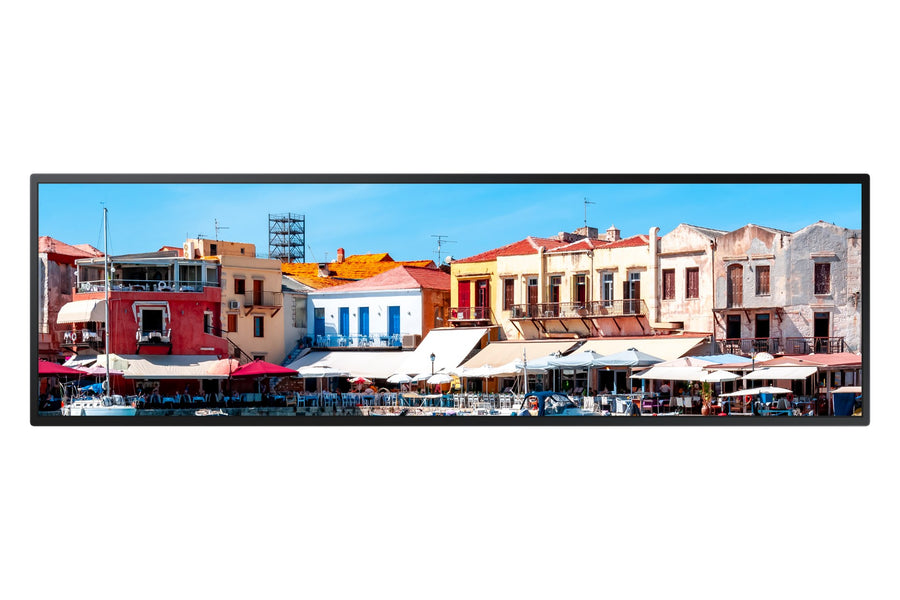

Samsung 37-inch SH37R-B Stretched Display – SH37R-B
The Samsung SH37R-B is a 37-inch stretched display with a 1920 x 540 wide-format panel, for shelf-edge, lift and corridor signage. It offers 700 nits typical brightness, a 4,000:1 contrast ratio and Wi-Fi with RS232 control. Procure.ae supplies the Samsung SH37R-B in the UAE with delivery and installation.
The Samsung SH37R-B is a 37-inch stretched display with a 1920 x 540 VA panel. Its wide, short format suits signage that runs across a shelf edge, lift front or corridor wall. It provides 700 nits typical brightness, a 4,000:1 contrast ratio and a 178-degree viewing angle horizontally and vertically, with a 6.5 ms response time. The manufacturer lists the panel for commercial signage, with 8 GB of storage on the Tizen 4.0 operating system.
The SH37R-B fits shelf-edge promotions, lift fronts, corridors and wall-mounted information strips where a wide, low screen is needed. It has two HDMI 2.0 inputs, one DisplayPort 1.2 input, Wi-Fi and an RJ45 network port, with RS232 and IR control for integration. It mounts on a 400 x 200 mm VESA pattern and draws 70 W typical on-mode power. The manufacturer's specifications do not state the mounting kit supplied, so Procure.ae can confirm the bracket for your installation.
Screen Size
37 inch
Resolution
1920 x 540
Brightness
700 nits
Type
Stretched Signage Display
- Stretched Format
- High Brightness
- Contrast and Response
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Stretched Format
1920 x 540 wide panel on a 37-inch diagonal.
02
High Brightness
700 nits typical brightness for indoor commercial spaces.
03
Contrast and Response
4,000:1 contrast ratio and 6.5 ms response time.
04
Multiple Inputs
Two HDMI 2.0 inputs and one DisplayPort 1.2 input (HDCP 2.2).
05
Network and Control
Wi-Fi, RJ45 network input, RS232 in and out ports and IR input.
06
Tizen 4.0 Platform
Built-in Tizen 4.0 operating system with 8 GB storage.
07
Low Power Use
70 W on-mode consumption and 0.5 W in sleep mode.
Specifications
20 specificationsGeneral
Key FeaturesStretched 37-inch format, 700 nits typical brightness, HDCP 2.2, Wi-Fi, RS232 and IR control, Tizen 4.0 OS, Non-glossy frame, Energy class B
ModelSH37R-B
TypeStretched Signage Display
Display
Brightness700 nits
Contrast Ratio4,000:1
Panel TechnologyVA
Resolution1920 x 540
Response Time6.5 ms
Screen Size37 inch
Viewing Angle178° / 178°
Performance
Operating SystemTizen 4.0
Storage8 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2 (HDMI 2.0), DisplayPort In × 1 (1.2), USB × 1, RJ45 In × 1, RS232 In × 1, RS232 Out × 1, IR In × 1, Stereo Mini Jack audio out
Wi-FiWi-Fi
Power
Power Consumption70 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions923.3 x 277.6 x 44.8 mm
Operating Humidity10% to 80% RH, non-condensing
VESA Mount400 x 200 mm
Weight6.3 kg
Downloads
Manufacturer documents for the Samsung 37-inch SH37R-B Stretched Display – SH37R-B — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Samsung SH37R-B?
The Samsung SH37R-B is a 37-inch stretched display with a wide 1920 x 540 panel. It is designed for commercial signage where a long, narrow format suits the space, such as shelf edges, lift fronts and corridors.
What resolution does the SH37R-B use?
The SH37R-B uses a 1920 x 540 panel resolution in a stretched format. It has 700 nits typical brightness, a 4,000:1 contrast ratio and a 6.5 ms response time, so it suits wide, short signage in commercial spaces.
Can the SH37R-B be mounted on a wall?
Yes. The SH37R-B has a 400 x 200 mm VESA pattern and weighs 6.3 kg, so it fits VESA-compatible wall brackets. The manufacturer's specifications do not state the mounting kit supplied, so Procure.ae can confirm the right bracket for your installation.
What inputs and control options does the SH37R-B have?
The SH37R-B has two HDMI 2.0 inputs, one DisplayPort 1.2 input, one USB port, an RJ45 network input, RS232 in and out ports and an IR input. These support network, serial and infrared control.
