Samsung 37-inch SH37R-B Stretched Display – SH37R-B — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
Samsung · SH37R-B · Digital Signage

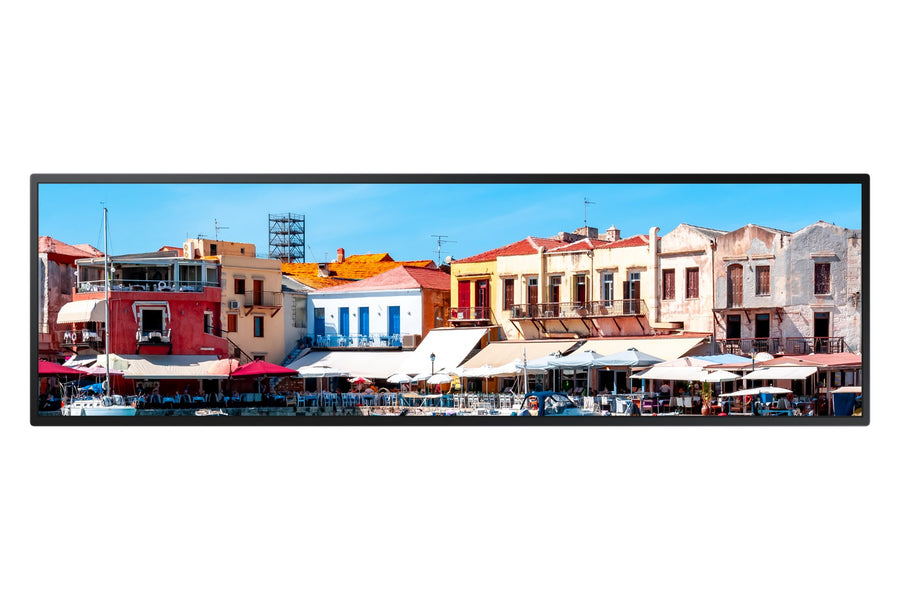

Samsung 37-inch SH37R-B Stretched Display – SH37R-B

Samsung 37-inch SH37R-B Stretched Display – SH37R-B

The Samsung SH37R-B is a 37-inch stretched display with a 1920 x 540 wide-format panel, for shelf-edge, lift and corridor signage. It offers 700 nits typical brightness, a 4,000:1 contrast ratio and Wi-Fi with RS232 control. Procure.ae supplies the Samsung SH37R-B in the UAE with delivery and installation.

The Samsung SH37R-B is a 37-inch stretched display with a 1920 x 540 VA panel. Its wide, short format suits signage that runs across a shelf edge, lift front or corridor wall. It provides 700 nits typical brightness, a 4,000:1 contrast ratio and a 178-degree viewing angle horizontally and vertically, with a 6.5 ms response time. The manufacturer lists the panel for commercial signage, with 8 GB of storage on the Tizen 4.0 operating system.

The SH37R-B fits shelf-edge promotions, lift fronts, corridors and wall-mounted information strips where a wide, low screen is needed. It has two HDMI 2.0 inputs, one DisplayPort 1.2 input, Wi-Fi and an RJ45 network port, with RS232 and IR control for integration. It mounts on a 400 x 200 mm VESA pattern and draws 70 W typical on-mode power. The manufacturer's specifications do not state the mounting kit supplied, so Procure.ae can confirm the bracket for your installation.

Screen Size
37 inch
Resolution
1920 x 540
Brightness
700 nits
Type
Stretched Signage Display
Weight
6.3 kg

Key features

01
Stretched Format
1920 x 540 wide panel on a 37-inch diagonal.
02
High Brightness
700 nits typical brightness for indoor commercial spaces.
03
Contrast and Response
4,000:1 contrast ratio and 6.5 ms response time.
04
Multiple Inputs
Two HDMI 2.0 inputs and one DisplayPort 1.2 input (HDCP 2.2).
05
Network and Control
Wi-Fi, RJ45 network input, RS232 in and out ports and IR input.
06
Tizen 4.0 Platform
Built-in Tizen 4.0 operating system with 8 GB storage.
07
Low Power Use
70 W on-mode consumption and 0.5 W in sleep mode.

Specifications

General
Key FeaturesStretched 37-inch format, 700 nits typical brightness, HDCP 2.2, Wi-Fi, RS232 and IR control, Tizen 4.0 OS, Non-glossy frame, Energy class B
ModelSH37R-B
TypeStretched Signage Display
Display
Brightness700 nits
Contrast Ratio4,000:1
Panel TechnologyVA
Resolution1920 x 540
Response Time6.5 ms
Screen Size37 inch
Viewing Angle178° / 178°
Performance
Operating SystemTizen 4.0
Storage8 GB
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2 (HDMI 2.0), DisplayPort In × 1 (1.2), USB × 1, RJ45 In × 1, RS232 In × 1, RS232 Out × 1, IR In × 1, Stereo Mini Jack audio out
Wi-FiWi-Fi
Power
Power Consumption70 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions923.3 x 277.6 x 44.8 mm
Operating Humidity10% to 80% RH, non-condensing
VESA Mount400 x 200 mm
Weight6.3 kg
