PrometheanInteractive Flat PanelsSKU AP9-A75

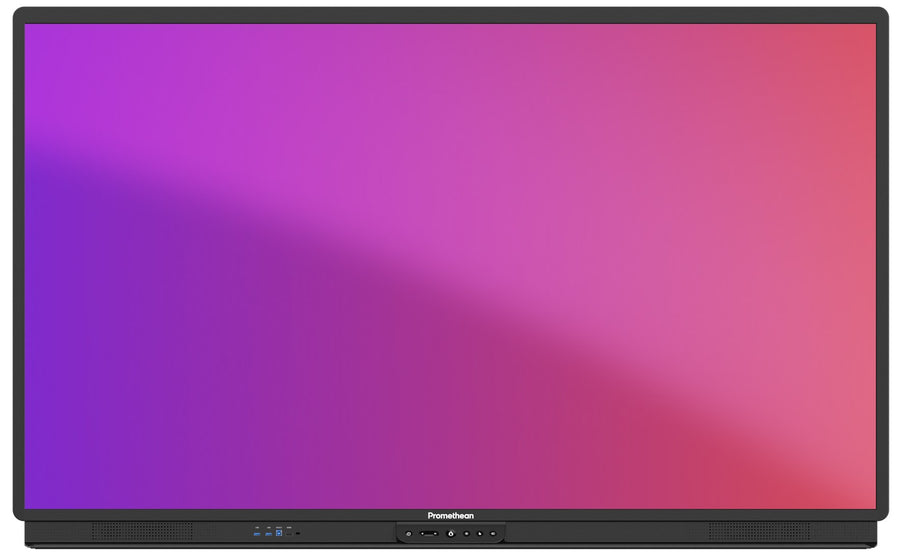

Promethean ActivPanel 9 75-inch Interactive Flat Panel – AP9-A75
The Promethean ActivPanel 9 75-inch (AP9-A75) is a discontinued 4K UHD interactive flat panel for classrooms and meeting rooms. It offers 20-point touch, 400 nits brightness and an Android-based ActivPanel OS. Procure.ae, an authorised reseller, supplies it in the UAE with delivery and installation.
The AP9-A75 has a 75-inch 16:9 panel with 3840 x 2160 (4K UHD) resolution at 60 Hz. Its brightness is 400 nits, and its contrast ratio is 5,000:1 dynamic and 1,200:1 static. The 10-bit panel shows 1.07 billion colours with an 8 ms LCD response time. Touch uses 20 continuous touch points at 1 mm accuracy, with palm rejection, palm erase and pen and touch differentiation. Two pens and an integrated full-length pen tray are included.
The panel runs ActivPanel OS, an Android-based system with 4 GB RAM and 32 GB internal storage. Connect a PC through HDMI 2.0 or DisplayPort 1.2, and use the USB-B touch ports for touch. It supports Windows 7 to 11, macOS, Linux Ubuntu 20.04 LTS and Chrome OS, and includes ActivInspire Professional. For wall mounting it uses an 800 x 400 mm VESA pattern. The Premium 75-inch model adds 8 GB RAM, 64 GB storage, a subwoofer and a microphone array.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Interactive Flat Panel
- 4K UHD display
- 20-point touch
- Pen and touch differentiation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
75-inch 16:9 panel at 3840 x 2160 resolution and 60 Hz, with 400 nits brightness.
02
20-point touch
20 continuous touch points, 1 mm touch accuracy, palm rejection and palm erase.
03
Pen and touch differentiation
Separates pen input from touch input, with two pens and a full-length pen tray.
04
ActivPanel OS
Android-based operating system with 4 GB RAM and 32 GB internal storage.
05
Front speakers
Two front-facing speakers at 2 x 21 W (peak), with a 3.5 mm audio output.
06
Platform compatibility
Listed for Windows 7 to 11, macOS Sierra 10.12.1 or later, Linux Ubuntu 20.04 LTS and Chrome OS.
07
Cloud-based profiles
Trusted Platform Module and cloud-based user profiles, with OTA updates.
Specifications
37 specificationsGeneral
CompatibilityWindows 7 to 11, Mac OS 10.8 to 10.11, macOS Sierra 10.12.1 or later, Linux Ubuntu 20.04 LTS, Chrome OS
Key Features4K UHD, 20-point touch, 400 nits, Android-based ActivPanel OS, two pens, ActivInspire Professional, ENERGY STAR certified, Trusted Platform Module
ModelAP9-A75
TypeInteractive Flat Panel
What's in the BoxActivPanel 9 panel, 3 m HDMI cable, 3 m USB cable (A-B), 3 m power cable, 2 m USB-C cable, remote control, remote batteries, 2 pens, 4 VESA mount screws (M6), mini PC bracket
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio5,000:1 dynamic, 1,200:1 static
Panel TechnologyTFT LCD (direct LED backlight)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Accuracy1 mm
Touch Points20-point multi-touch
Touch Response Time10 ms
Performance
Operating SystemActivPanel OS (Android-based)
RAM4 GB
Storage32 GB
Audio
Audio In3.5 mm AV-in and mic
DisplayPortDisplayPort 1.2 × 1
Speaker Output2 x 21 W (peak)
Connectivity
BluetoothBluetooth 5.0
Ethernet1 Gbps LAN in and out (RJ45), Wake-on-LAN
HDMI InputsHDMI 2.0 × 3 (2 rear, 1 front)
Input Voltage100–240 V AC
USB PortsUSB-A 3.2 Gen 1 × 4 (2 front, 2 rear), USB-A 2.0 × 1, USB-B 3.2 Gen 1 touch × 4 (1 front, 3 rear)
USB-C PortsUSB-C 3.2 Gen 1 × 1 (rear, 60 W Power Delivery)
Power
Power Consumption131 W (typical)
Physical
Dimensions1730 x 1070 x 113 mm
Operating Temperature0 to 40 °C
Surface Protection9H (pencil), 7 (Mohs), heat-tempered, anti-glare, anti-fingerprint glass
VESA Mount800 x 400 mm
Weight55.3 kg
Compliance
CertificationsCE, FCC, IC, UL, CUL, CB, RCM, ENERGY STAR
Security FeaturesTrusted Platform Module, cloud-based user profiles
Downloads
Manufacturer documents for the Promethean ActivPanel 9 75-inch Interactive Flat Panel – AP9-A75 — datasheets, manuals, drawings and certificates.
- Datasheet – ActivPanel 9 – ActivPanel 9 2022 SS 0524v2 EN-INTL
- Datasheet – ActivPanel 9 (Arabic) – ActivPanel 9 2022 SS 0524v2 AR-XM
- User manual – ActivPanel 9 – ActivPanel 9 - Accessory Guide (International)
- User manual – ActivPanel 9 – ActivPanel 9 User Guide (US) 9-14-2023
- Certificate / compliance – ActivPanel 9
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the AP9-A75?
The AP9-A75 has a 75-inch 16:9 screen with 3840 x 2160 (4K UHD) resolution at 60 Hz. It is rated at 400 nits brightness and 5,000:1 dynamic contrast, and it supports 20-point touch.
Does the AP9-A75 work with Windows and Mac computers?
Yes. The manufacturer lists compatibility with Windows 7 to 11, Mac OS 10.8 to 10.11, macOS Sierra 10.12.1 or later, Linux Ubuntu 20.04 LTS and Chrome OS. Connect a computer through HDMI or DisplayPort, and use the USB-B touch ports for touch connection.
What VESA mount and weight does the AP9-A75 need?
The AP9-A75 uses an 800 x 400 mm VESA mount pattern and includes four M6 VESA mount screws. The panel weighs 55.3 kg, so confirm that the wall or stand is rated for that load before installation.
Does the AP9-A75 come with pens and software?
Yes. Two pens, a remote control and a 3 m HDMI cable are in the box. ActivInspire Professional is listed as included, and the panel runs ActivPanel OS with 4 GB RAM and 32 GB storage.
How much power does the AP9-A75 use?
The AP9-A75 uses 131 W typical and 0.5 W or less on standby, on a 100 to 240 V AC supply. The manufacturer lists ENERGY STAR certification for the 75-inch model.
Can I buy the AP9-A75 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
