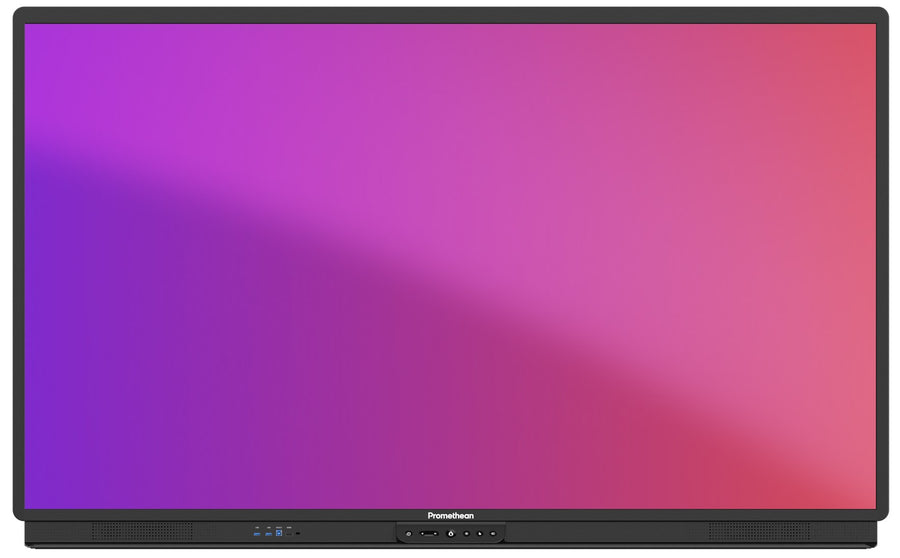

Promethean ActivPanel 9 75-inch Interactive Flat Panel – AP9-A75
The Promethean ActivPanel 9 75-inch (AP9-A75) is a discontinued 4K UHD interactive flat panel for classrooms and meeting rooms. It offers 20-point touch, 400 nits brightness and an Android-based ActivPanel OS. Procure.ae, an authorised reseller, supplies it in the UAE with delivery and installation.
The AP9-A75 has a 75-inch 16:9 panel with 3840 x 2160 (4K UHD) resolution at 60 Hz. Its brightness is 400 nits, and its contrast ratio is 5,000:1 dynamic and 1,200:1 static. The 10-bit panel shows 1.07 billion colours with an 8 ms LCD response time. Touch uses 20 continuous touch points at 1 mm accuracy, with palm rejection, palm erase and pen and touch differentiation. Two pens and an integrated full-length pen tray are included.
The panel runs ActivPanel OS, an Android-based system with 4 GB RAM and 32 GB internal storage. Connect a PC through HDMI 2.0 or DisplayPort 1.2, and use the USB-B touch ports for touch. It supports Windows 7 to 11, macOS, Linux Ubuntu 20.04 LTS and Chrome OS, and includes ActivInspire Professional. For wall mounting it uses an 800 x 400 mm VESA pattern. The Premium 75-inch model adds 8 GB RAM, 64 GB storage, a subwoofer and a microphone array.
Key features
Specifications
| Compatibility | Windows 7 to 11, Mac OS 10.8 to 10.11, macOS Sierra 10.12.1 or later, Linux Ubuntu 20.04 LTS, Chrome OS |
| Key Features | 4K UHD, 20-point touch, 400 nits, Android-based ActivPanel OS, two pens, ActivInspire Professional, ENERGY STAR certified, Trusted Platform Module |
| Model | AP9-A75 |
| Type | Interactive Flat Panel |
| What's in the Box | ActivPanel 9 panel, 3 m HDMI cable, 3 m USB cable (A-B), 3 m power cable, 2 m USB-C cable, remote control, remote batteries, 2 pens, 4 VESA mount screws (M6), mini PC bracket |
| Aspect Ratio | 16:9 |
| Brightness | 400 nits |
| Color Depth | 10-bit (1.07 billion colours) |
| Contrast Ratio | 5,000:1 dynamic, 1,200:1 static |
| Panel Technology | TFT LCD (direct LED backlight) |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 75 inch |
| Touch Accuracy | 1 mm |
| Touch Points | 20-point multi-touch |
| Touch Response Time | 10 ms |
| Operating System | ActivPanel OS (Android-based) |
| RAM | 4 GB |
| Storage | 32 GB |
| Audio In | 3.5 mm AV-in and mic |
| DisplayPort | DisplayPort 1.2 × 1 |
| Speaker Output | 2 x 21 W (peak) |
| Bluetooth | Bluetooth 5.0 |
| Ethernet | 1 Gbps LAN in and out (RJ45), Wake-on-LAN |
| HDMI Inputs | HDMI 2.0 × 3 (2 rear, 1 front) |
| Input Voltage | 100–240 V AC |
| USB Ports | USB-A 3.2 Gen 1 × 4 (2 front, 2 rear), USB-A 2.0 × 1, USB-B 3.2 Gen 1 touch × 4 (1 front, 3 rear) |
| USB-C Ports | USB-C 3.2 Gen 1 × 1 (rear, 60 W Power Delivery) |
| Power Consumption | 131 W (typical) |
| Dimensions | 1730 x 1070 x 113 mm |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | 9H (pencil), 7 (Mohs), heat-tempered, anti-glare, anti-fingerprint glass |
| VESA Mount | 800 x 400 mm |
| Weight | 55.3 kg |
| Certifications | CE, FCC, IC, UL, CUL, CB, RCM, ENERGY STAR |
| Security Features | Trusted Platform Module, cloud-based user profiles |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
