VSYS VSVW02-46T Push-Pull Pop-Out Video Wall Mount for 37"–70" Displays, 45 kg
- Model: VSVW02-46T
- SKU: VSVW02-46T
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VSVW02-46T is a push-pull pop-out video wall mount for 37"–70" displays weighing up to 45 kg, available in the UAE from Procure.ae. In a tiled array the screens sit almost edge to edge, which leaves an installer no room to reach a... See More
The VSYS VSVW02-46T is a push-pull pop-out video wall mount for 37"–70" displays weighing up to 45 kg, available in the UAE from Procure.ae.

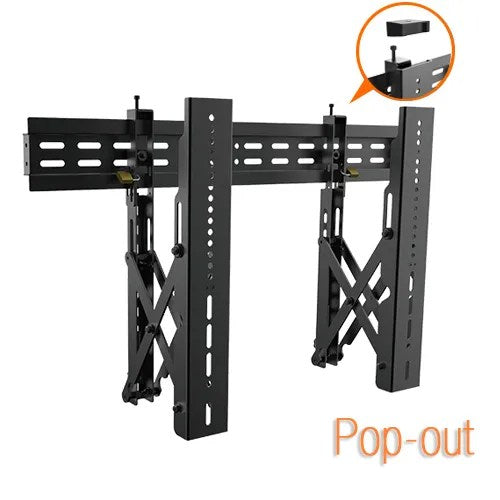

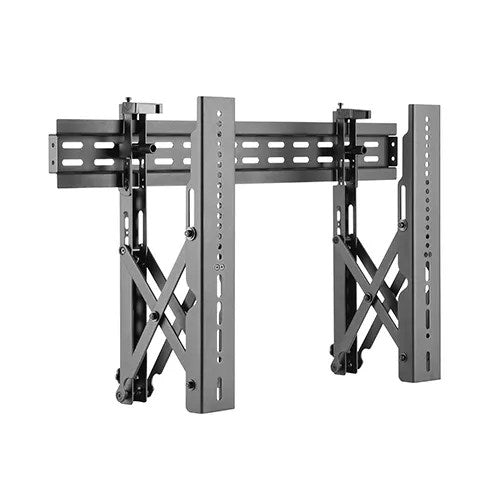

In a tiled array the screens sit almost edge to edge, which leaves an installer no room to reach a HDMI lead or a failed power brick. The VSVW02-46T solves that with a sprung pop-out carriage: press the panel face and it releases forward, clear of its neighbours, so the rear of the display can be worked on in place. Push it back and the quick-lock holds it at a 68 mm retracted depth, tight enough for signage walls and lobby arrays.

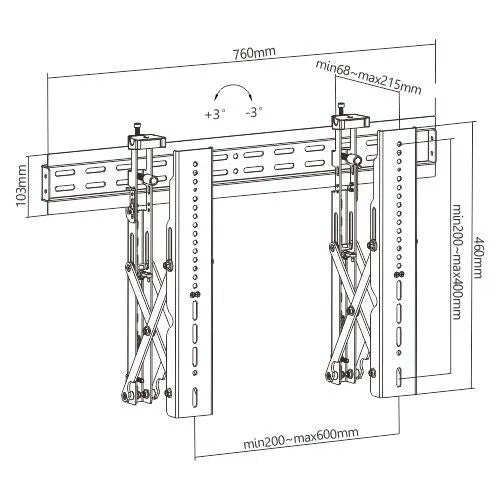

The pop-out travel is 215 mm, measured from the wall face to the display at full extension. Alignment is done on the bracket rather than the wall: lateral shift adjusters slide each panel sideways to close bezel gaps, a levelling adjustment squares the screen against its neighbours, and a toolless tilt of plus or minus 3 degrees fine-tunes the plane of the array. The arms are 2 mm to 2.5 mm cold-rolled steel with a black powder-coated finish, and accept VESA patterns from 200 x 200 mm to 600 x 400 mm.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Press-to-release pop-out carriage extends the display 215 mm from the wall, giving hand access to cabling and connectors without breaking the array.
- Quick-lock return holds the panel at a 68 mm retracted depth, keeping the wall flat enough for close-tiled signage.
- Lateral shift brackets move each screen sideways after mounting, which is how uneven bezel gaps get closed on site.
- Built-in levelling adjustment squares a panel against its neighbours once the plate is fixed.
- Toolless tilt of plus 3 to minus 3 degrees trims the viewing plane across a multi-screen wall.
- Rated for displays up to 45 kg (99 lbs) and strength tested to four times that figure.
- VESA 200 x 200 mm to 600 x 400 mm covers the common 37" to 70" commercial signage panels, so one mount model can serve a mixed-size project.
- Anti-theft locking hole for public-facing installations in malls, transport hubs and open lobbies.
- 2 mm to 2.5 mm cold-rolled steel with a black powder-coated finish that disappears behind the panel line.
Technical Specifications
| Model | VSVW02-46T |
| Mount Type | Push-pull pop-out video wall mount |
| Screen Size Range | 37" – 70" |
| Load Capacity | Up to 45 kg (99 lbs) |
| VESA Compatibility | 200 x 200 mm to 600 x 400 mm |
| Movement | Push-pull pop-out extension, tilt, lateral shift, levelling |
| Tilt | Plus 3 to minus 3 degrees, toolless |
| Wall Clearance | 68 mm retracted, 215 mm extended |
| Material | Cold-rolled steel, 2 mm to 2.5 mm gauge |
| Finish | Powder-coated black |
| Security | Anti-theft locking hole |
| Certifications | Strength tested to four times rated load |
| Package Contents | Wall plate, pop-out bracket arms, mounting hardware kit, anti-theft lock fitting, installation instructions |
Ideal for: retail and mall video walls, corporate lobby signage, control and monitoring rooms, exhibition and event stands, hotel and airport wayfinding walls, and university or campus information displays across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VSVW02-46T Push-Pull Pop-Out Video Wall Mount for 37"–70" Displays, 45 kg |
| Mounting Type | Wall mount |
| Screen Size Support | Flat displays from 37 inch to 70 inch |
| Wall Mount Type | Push-pull pop-out video wall |
| Product Type | Push-pull pop-out video wall mount |
| Screen Size Range | 37 inch to 70 inch |
| Load Capacity | Up to 45 kg (99 lbs) |
| VESA Compatibility | 200 x 200 mm to 600 x 400 mm |
| Movement | Push-pull pop-out extension, tilt, lateral shift and levelling |
| Tilt | Plus 3 to minus 3 degrees, toolless |
| Extension Range | 68 mm retracted to 215 mm extended |
| Wall Clearance | 68 mm retracted, 215 mm extended |
| Material and Finish | Cold-rolled steel, 2 mm to 2.5 mm gauge |
| Available Finishes | Powder-coated black |
| Mounting Interface | Wall plate for solid wall fixing |
| Testing and Certification | Strength tested to four times rated load |
| In the Box | Wall plate, pop-out bracket arms, mounting hardware kit, anti-theft lock fitting, installation instructions |
| MPN | VSVW02-46T |
| Model | VSVW02-46T |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VSVW02-46T in the UAE?
Procure.ae supplies the VSYS VSVW02-46T across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How does the pop-out mechanism work in a tiled wall?
Pressing the face of the display releases the carriage, which travels forward to 215 mm from the wall. That clears the surrounding panels so the rear of the screen can be serviced in place. Pushing the panel back re-engages the quick-lock at a 68 mm retracted depth.
Can the panels be aligned after they are on the wall?
Yes. Lateral shift brackets slide the screen left or right, a levelling adjustment squares it, and toolless plus or minus 3 degree tilt sets the plane. Those three adjustments are what let a wall of screens finish with consistent bezel gaps.
Which displays does it take, and what does it hold?
Flat panels from 37" to 70" with a VESA pattern between 200 x 200 mm and 600 x 400 mm, up to 45 kg (99 lbs) each. The bracket is strength tested to four times its rated load.
Is it suitable for public areas, and can I order for a whole array?
An anti-theft locking hole is provided for public-facing sites. Array and multi-site quantities are quoted on request, with consolidated delivery for phased rollouts.
