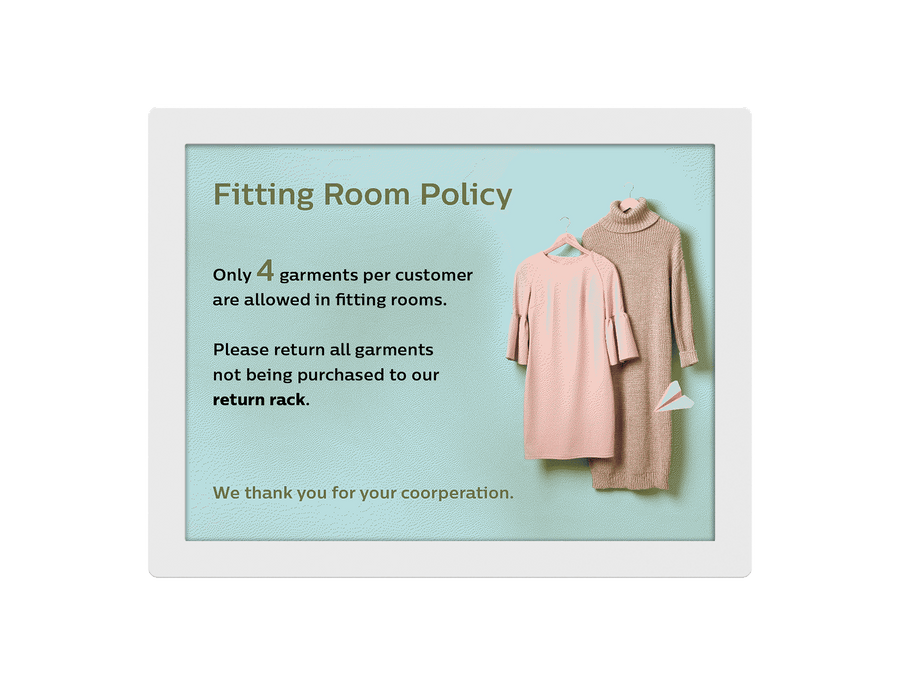

Philips Tableaux 4000 13-inch E-Paper Digital Signage Display – 13BDL4150IW/00
The Philips 13BDL4150IW/00 is a 13.3-inch ePaper digital signage display for room bookings and product information. It has a 1600 x 1200 panel with 60K colours, Wi-Fi and LAN connectivity, and Android 11. Procure.ae supplies it across the UAE for static content that needs to be updated easily.
The 13BDL4150IW/00 uses ePaper technology to show static imagery such as posters, menus and room schedules, replacing printed signs with a display that updates over the network. The 13.3-inch panel has a 4:3 aspect ratio, 1600 x 1200 resolution and 60K display colours. It runs Android 11 on a Rockchip PX30S processor with 2 GB DDR4 memory and 16 GB eMMC storage. Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 5.1 are built in.
Use it for room bookings, product information and digitised posters in offices, retail and education spaces. It can be mounted in landscape or portrait orientation with a 100 x 100 mm VESA mount, and it is powered by a 20 V/2.25 A adapter or PoE++. Compared with the 25-inch Tableaux 4000 model, this 13-inch version has a 4:3 panel at 1600 x 1200 instead of 16:9 at 3200 x 1800.
Screen Size
13.3 inch
Resolution
1600 x 1200
Type
ePaper Digital Signage Display
Weight
1.3 kg
- Power-free ePaper
- Paper-free signage
- 1600 x 1200 panel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Power-free ePaper
Holds static content on screen with no continuous power draw, as described by the manufacturer.
02
Paper-free signage
Replaces printed posters with an updatable ePaper panel.
03
1600 x 1200 panel
13.3-inch 4:3 ePaper panel with 60K display colours.
04
Wi-Fi and LAN
802.11 a/b/g/n/ac Wi-Fi, Bluetooth 5.1 and a 10/100 Mbps Ethernet port.
05
Android 11
Runs Android 11 on a Rockchip PX30S processor with 2 GB memory and 16 GB storage.
06
Flexible placement
Can be mounted in landscape or portrait orientation, 24/7.
07
Power options
Powered by a 20 V/2.25 A adapter or PoE++ over Ethernet.
08
Network control
The LAN (RJ45) port allows the display to be controlled over the network.
Specifications
26 specificationsGeneral
Key FeaturesePaper display, Power-free static content, Landscape or portrait placement, PoE++ or adapter power, LAN network control, Wi-Fi and Bluetooth
Model13BDL4150IW/00
TypeePaper Digital Signage Display
What's in the BoxAC power adapter, quick start guide
Display
Aspect Ratio4:3
Bezel Size18.5 mm
Color Depth60K colours
Display TypeePaper
Resolution1600 x 1200
Screen Size13.3 inch
Performance
Operating SystemAndroid 11
ProcessorRockchip PX30S
RAM2 GB
Storage16 GB eMMC
Storage Conditions-20 to 60 °C; 20% to 80% RH
Connectivity
BluetoothBluetooth 5.1
Ethernet10/100 Mbps
PortsRJ45 LAN × 1, USB × 1, micro USB × 1, 3.5 mm audio out × 1
Wi-Fi802.11 a/b/g/n/ac
Power
Power Source20 V/2.25 A AC adapter; PoE++
Physical
Operating Humidity20% to 80% RH
Operating Temperature15 to 35 °C
VESA Mount100 x 100 mm
Weight1.3 kg
Compliance
CertificationsCE, CB, UL, FCC
Warranty3 years
Downloads
Manufacturer documents for the Philips Tableaux 4000 13-inch E-Paper Digital Signage Display – 13BDL4150IW/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Can the 13BDL4150IW/00 be used for room booking displays?
Yes. Philips positions the 13BDL4150IW/00 for room bookings and product information. Its ePaper panel suits static content that is updated from time to time, and it can be network controlled through its LAN (RJ45) port.
Does the 13BDL4150IW/00 support Wi-Fi and Ethernet?
Yes. It includes 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.1, plus a 10/100 Mbps Ethernet port. The wired LAN (RJ45) connection also allows network control of the display, so it can be managed centrally.
Can the 13BDL4150IW/00 be mounted in portrait orientation?
Yes. The display is rated for both landscape and portrait placement, 24/7. It has a 100 x 100 mm VESA mount on the rear, so a 100 x 100 mm VESA bracket is required for wall mounting.
What power does the 13BDL4150IW/00 need?
It is powered by a 20 V/2.25 A AC adapter, which is included, or by PoE++ over Ethernet. Its operating temperature range is 15 to 35 °C, and storage temperature is -20 to 60 °C.
