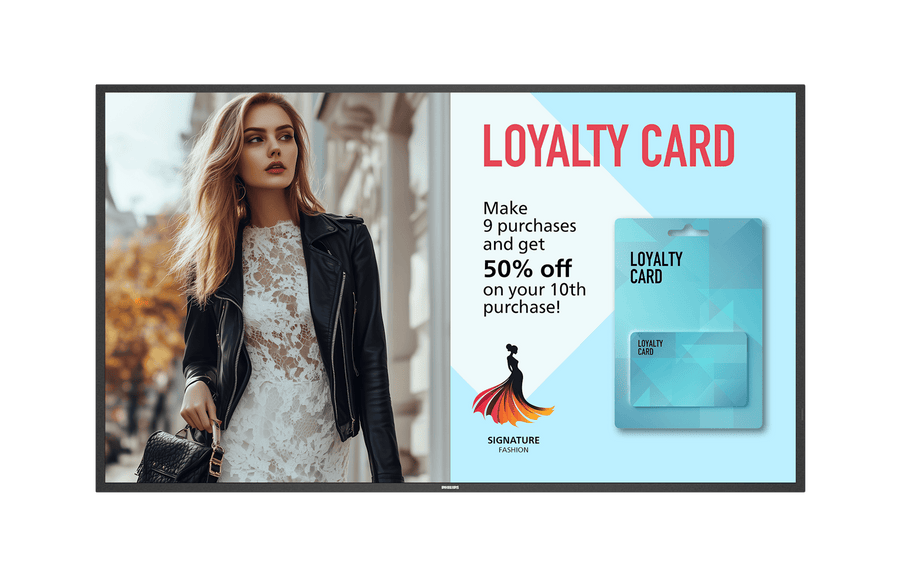

Philips 50BDL6017P/00 50-inch 4K digital signage displayPhilips
Digital SignageSKU 50BDL6017P/00

Philips Signage 6000 Series 50-inch 4K UHD Digital Signage Display – 50BDL6017P/00

The Philips 50BDL6017P/00 is a 50-inch 4K UHD digital signage display from the Philips Signage 6000 Series, built for 24/7 operation in busy, brightly lit spaces. It has an 800 cd/m² VA panel, a 4,000:1 typical contrast ratio, IP5X ingress protection and an ambient light sensor. Procure.ae supplies the Philips 50BDL6017P/00 across the UAE.

The 50BDL6017P/00 has a 49.5-inch (125.7 cm) VA panel at 3840 x 2160 resolution, with 800 cd/m² brightness and a 4,000:1 typical contrast ratio. Its 8 ms typical response time, 1.07 billion colours and 178-degree viewing angles keep content readable in bright rooms. An ambient light sensor is listed among its controls, and Pixel Shift and Low Bright help with screen-saving. Built-in 2 x 10 W RMS speakers and Smart Power energy saving are included.

The display supports landscape and portrait placement for 24/7 operation, with a 400 x 400 mm VESA pattern using M6 fixings. It can be tiled into matrices of up to 15 x 15 displays, and carrying handles and two edge alignment kits are included to simplify installation. Its OPS slot and its DisplayPort 1.2 and HDMI 2.0 outputs are listed among its connections. RS232 and RJ45 network control, plus IR in/out, support remote management.

Screen Size
50 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
800 nits
Type
Digital Signage Display
  • 800 nits brightness
  • 4K UHD panel
  • Ambient light sensor
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
800 nits brightness
800 cd/m² rating for brighter rooms.
02
4K UHD panel
3840 x 2160 resolution with 1.07 billion colours.
03
Ambient light sensor
Included among the display's external control options.
04
IP5X rating
Ingress protection rated IP5X for dust resistance.
05
Video wall tiling
Tiled matrix of up to 15 x 15 displays.
06
Installation aids
Carrying handles and two edge alignment kits included.
07
Conformal coating
Protective coating on the electronics.
08
Network control
RS232 and RJ45 control with IR in/out.

Specifications

24 specifications
General
Key Features4K UHD, 800 nits, IP5X, ambient light sensor, conformal coating, tiling up to 15 x 15, Smart Power, 2 x 10 W speakers
Model50BDL6017P/00
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel Size14.90 mm (even bezel)
Brightness800 nits
Contrast Ratio4,000:1
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size50 inch
Viewing Angle178° horizontal / 178° vertical
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.2 × 1, DVI-I × 1, HDMI 2.0 × 3, USB 2.0 × 2, HDMI 2.0 out × 1, DisplayPort 1.2 out × 1, RJ45, RS232C in/out, IR in/out, OPS slot
Power
Power Consumption171 W (maximum) / 104 W (typical)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight17.45 kg
Compliance
IP RatingIP5X
Warranty3 years

Downloads

Manufacturer documents for the Philips Signage 6000 Series 50-inch 4K UHD Digital Signage Display – 50BDL6017P/00 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the Philips 50BDL6017P/00?
The Philips 50BDL6017P/00 is a 50-inch (49.5-inch diagonal) 4K UHD digital signage display from the Philips Signage 6000 Series. It is rated at 800 cd/m² brightness for 24/7 operation.
Is it suited to bright or busy areas?
Yes. The manufacturer rates it at 800 cd/m² brightness with a 4,000:1 typical contrast ratio, and it is rated for operation at 0 to 40 °C.
Can it be used in a video wall?
Yes. The manufacturer lists a tiled matrix of up to 15 x 15 displays, with two edge alignment kits included.
Can it be wall mounted?
Yes. The display has a 400 x 400 mm VESA pattern with M6 fixings. Installation across the UAE is available through Procure.ae.
Which inputs and outputs does it have?
It has DisplayPort 1.2, DVI-I and three HDMI 2.0 inputs, two USB 2.0 ports, and audio input and output. It also has an OPS slot, plus HDMI 2.0 and DisplayPort 1.2 outputs.
Can I buy the 50BDL6017P/00 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
