PhilipsDigital SignageSKU 43BDL5050D/00

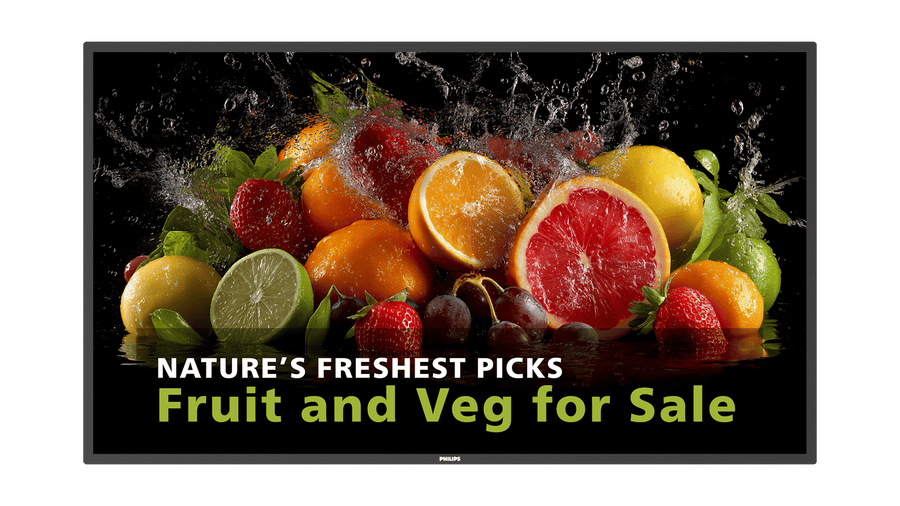

Philips Signage 5050 43-inch 4K UHD Digital Signage Display – 43BDL5050D/00
The Philips 43BDL5050D/00 is a 43-inch 4K UHD digital signage display for 24/7 venues that need Android 14 and Wi-Fi 6 management. It has an ADS panel rated at 600 nits, 4 GB RAM and 32 GB storage, with DisplayPort 1.4 and HDMI 2.0 inputs. Procure.ae supplies the Philips 43BDL5050D/00 across the UAE.
The 43BDL5050D/00 has a 3840 x 2160 ADS panel with 600 nits of brightness, a 1,200:1 typical contrast ratio and a 500,000:1 dynamic contrast ratio. Its response time is 8 ms typically, and the viewing angle is 178 degrees horizontally and vertically. The system runs Android 14 on four Cortex-A72 and four Cortex-A53 cores with an ARM Mali G52 MC3 GPU, 4 GB RAM and 32 GB storage. The display is rated for 24/7 operation, and its EEI Lot 5 consumption is 50 W with standby below 0.5 W.
The unit suits lobbies, busy venues and corridors, with IP5X ingress protection and a 0 to 40 °C operating range. Wi-Fi 6 and Bluetooth 5.2 come through the CRD32 module supplied in the box, and RJ45, RS232C and IR ports cover wired control. Its DisplayPort 1.4, two HDMI 2.0 and USB-C inputs sit alongside an HDMI 2.0 output, and an external 4G mPCIe slot is available. Up to 10 x 15 units can be tiled, and the 200 x 200 mm M6 mount suits wall installation.
Screen Size
42.5 inch (108 cm)
Resolution
3840 x 2160 (4K UHD)
Brightness
600 nits
Type
Digital Signage Display
- Android 14 platform
- 600-nit brightness
- Wi-Fi 6 and Bluetooth 5.2
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 14 platform
The display runs Android 14 with 4 GB RAM and 32 GB storage.
02
600-nit brightness
The ADS panel is rated at 600 nits in 3840 x 2160 resolution.
03
Wi-Fi 6 and Bluetooth 5.2
Connectivity comes through the CRD32 module listed with the display.
04
Multiple video inputs
DisplayPort 1.4, two HDMI 2.0 ports and a USB-C input cover common sources.
05
Tiled video wall
Up to 10 x 15 units can be tiled into one matrix.
06
IP5X ingress protection
The display carries an IP5X ingress protection rating.
07
Network expansion
An external 4G mPCIe slot and an RJ45 port support network connection.
08
Low standby consumption
EEI Lot 5 consumption is 50 W, with standby below 0.5 W.
Specifications
37 specificationsGeneral
Key Features3840 x 2160 ADS panel, 600-nit brightness, Android 14, Wi-Fi 6 and Bluetooth 5.2 via CRD32, tiled matrix up to 10 x 15, IP5X, RJ45 and RS232C control, 24/7 operation
Model43BDL5050D/00
TypeDigital Signage Display
What's in the BoxRS232 daisy-chain cable, AC power cord, IR sensor cable (1.8 m), quick start guide, remote control and AAA batteries, RS232 cable, USB cover and screws, CRD32 Wi-Fi and BT module
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even bezel)
Brightness600 nits
Contrast Ratio1,200:1
OrientationLandscape, Portrait
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size42.5 inch (108 cm)
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsARM Mali G52 MC3
Operating SystemAndroid 14
Processor4 x Cortex-A72 + 4 x Cortex-A53
RAM4 GB
Storage32 GB
Audio
Audio2 x 10 W RMS built-in speakers
Dynamic Range500,000:1 dynamic contrast
Connectivity
BluetoothBluetooth 5.2 (via CRD32 module)
ConnectivityWi-Fi 6 and Bluetooth 5.2 via CRD32 module; RJ45; external 4G mPCIe slot
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.4 × 1, HDMI 2.0 × 2, USB-C × 1 (4.5 W), USB 3.0 × 2, Micro USB (OTG), HDMI 2.0 out × 1, RJ45, RS232C, IR in/out, 3.5 mm audio out
Wi-FiWi-Fi 6 (via CRD32 module)
Power
Power Consumption50 W (EEI Lot 5)
Standby Power<0.5 W
Physical
Duty Cycle24/7
Operating Humidity20% to 80% RH (no condensation)
Operating Temperature0 to 40 °C (storage -20 to 60 °C)
VESA Mount200 x 200 mm
Weight10.71 kg
Compliance
CertificationsCE, RoHS, CB
IP RatingIP5X
Warranty3 years
Downloads
Manufacturer documents for the Philips Signage 5050 43-inch 4K UHD Digital Signage Display – 43BDL5050D/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What brightness and panel does the 43BDL5050D/00 have?
It has a 3840 x 2160 ADS panel rated at 600 nits, with a 1,200:1 typical contrast ratio and a 500,000:1 dynamic contrast ratio. The viewing angle is 178 degrees horizontally and vertically, and the typical response time is 8 ms.
Does the 43BDL5050D/00 support Wi-Fi 6 and Bluetooth 5.2?
Yes, Wi-Fi 6 and Bluetooth 5.2 come through the CRD32 Wi-Fi and Bluetooth module, which the manufacturer lists as included with the display. An external 4G mPCIe slot is also available.
Which operating system does the 43BDL5050D/00 run?
It runs Android 14 with 4 GB RAM and 32 GB storage, on a processor with four Cortex-A72 and four Cortex-A53 cores. An ARM Mali G52 MC3 GPU handles graphics.
How is the 43BDL5050D/00 mounted, and can units form a video wall?
It uses a 200 x 200 mm M6 wall mount with a 13.9 mm bezel, and up to 10 x 15 units can be tiled into one video wall. Landscape and portrait placement are both rated for 24/7 use.
What inputs and outputs does the 43BDL5050D/00 have?
Inputs are DisplayPort 1.4, two HDMI 2.0 ports and one USB-C port with 4.5 W power, plus two USB 3.0 ports and a micro USB OTG port. The video output is HDMI 2.0, and RJ45, RS232C and IR in and out handle control.
