PhilipsDigital SignageSKU 65BDL3510Q/00

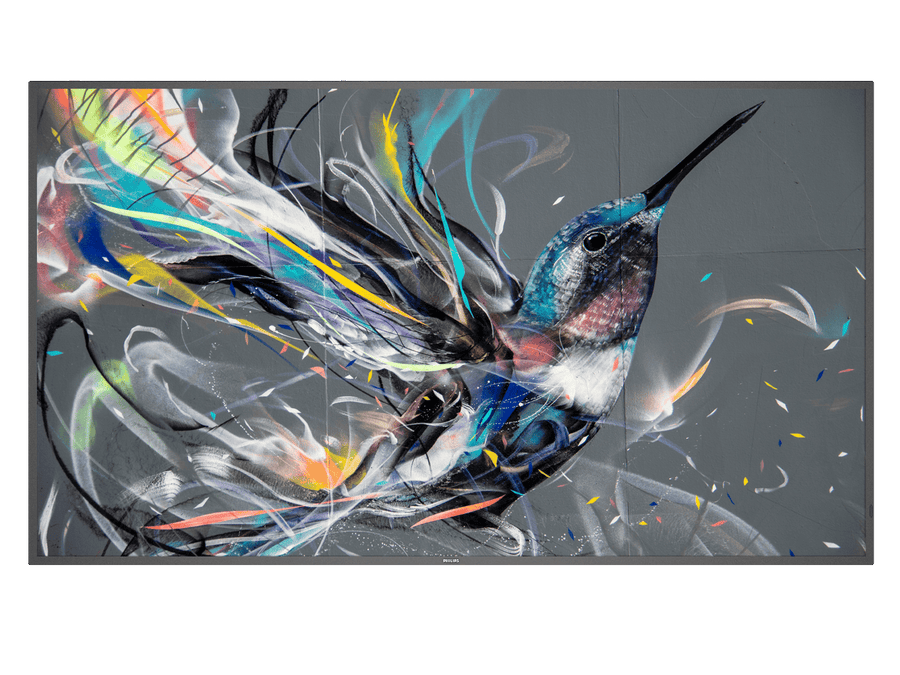

Philips Signage 3000 Q-Line 65-inch 4K UHD Digital Signage Display – 65BDL3510Q/00
The Philips 65BDL3510Q/00 is a 65-inch 4K UHD Q-Line digital signage display for professional signage and information screens. It uses an IPS panel rated at 400 nits with 1,300:1 typical contrast, includes an OPS slot, and tiles into video walls up to 15 x 15. Procure.ae supplies it across the UAE.
The 65BDL3510Q/00 uses a 64.5-inch (163.9 cm) IPS panel at 3840 x 2160 resolution with a 60 Hz optimum refresh rate. Brightness is 400 cd/m², with 1,300:1 typical contrast, 500,000:1 dynamic contrast and 9 ms typical response time. Viewing angles are 178 degrees horizontally and vertically, and the panel displays 1.07 billion colours. Picture enhancement includes motion pull down, a 3D comb filter, motion compensated deinterlacing, progressive scan and dynamic contrast enhancement. Two 10 W RMS speakers are built in, and an OPS slot is available for optional computing modules.
The 65BDL3510Q/00 suits professional signage in offices, schools, retail and hospitality spaces. Inputs include DVI-I, three HDMI 2.0 ports, two USB 2.0 ports, and 3.5 mm audio in and out. Network control runs over RJ45 or RS232C, with IR in and out for remote sensors. Smart Power is listed as an energy-saving function, and Smart Insert eases installation. Typical consumption is 135 W and maximum is 290 W, and the wall mount is 400 x 400 mm with M8 fixings.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
- 4K UHD IPS panel
- Brightness and contrast
- OPS slot
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS panel
3840 x 2160 resolution on a 64.5-inch screen.
02
Brightness and contrast
400 cd/m² brightness with 1,300:1 typical contrast.
03
OPS slot
Slot for optional OPS computing modules.
04
Tiled matrix
Up to 15 x 15 displays in one video wall configuration.
05
Multiple inputs
DVI-I, three HDMI 2.0 ports and two USB 2.0 ports.
06
Network control
RJ45 and RS232C control with IR in and out.
07
Picture processing
Motion pull down, 3D comb filter and progressive scan processing.
08
Smart Power
Energy-saving function with Smart Insert installation.
Specifications
25 specificationsGeneral
Key FeaturesSmart Power, Smart Insert installation, Tiled matrix up to 15 x 15, lockable keyboard and remote control, OPS slot, 3D comb filter
Model65BDL3510Q/00
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness400 nits
Contrast Ratio1,300:1
OrientationLandscape / Portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time9 ms
Screen Size65 inch
Viewing Angle178° (horizontal) / 178° (vertical)
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes
PortsDVI-I × 1, HDMI 2.0 × 3, USB 2.0 × 2, RS232C in/out, IR in/out, RJ45, 3.5 mm audio in/out, OPS slot
Power
Power Consumption135 W (typical), 290 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight27.80 kg
Compliance
CertificationsCE, CB, BSMI, CU, EPA, ETL, FCC Class A, VCCI
Warranty3 years
Downloads
Manufacturer documents for the Philips Signage 3000 Q-Line 65-inch 4K UHD Digital Signage Display – 65BDL3510Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Can the 65BDL3510Q/00 take an OPS computing module?
Yes. The display has an OPS slot listed among its connections, so an optional OPS module can be fitted. Confirm module compatibility with Procure.ae before ordering. The OPS slot is listed as a connection in the manufacturer's specifications.
What inputs does the 65BDL3510Q/00 have?
It has one DVI-I input, three HDMI 2.0 inputs and two USB 2.0 ports, plus 3.5 mm audio input and output. The manufacturer's specifications do not list a VGA or DisplayPort input.
Is the 65BDL3510Q/00 suitable for a video wall?
Yes. The manufacturer lists tiled matrix configurations of up to 15 x 15 displays. The included RS232 daisy-chain cable links units for control. Each unit has a 14.90 mm even bezel, and the wall mount is 400 x 400 mm with M8 fixings.
How is the 65BDL3510Q/00 controlled over a network?
It supports RJ45 network control and RS232C in and out via a 2.5 mm jack, with IR in and out via a 3.5 mm jack for remote sensors. Keyboard control and the remote control signal can be set to hidden or lockable.
What mounting and power does the 65BDL3510Q/00 need?
It uses a 400 x 400 mm wall mount with M8 fixings and weighs 27.80 kg. It runs on 100 to 240 V at 50 or 60 Hz, rated 135 W typical and 290 W maximum.
