PhilipsDigital SignageSKU 65BDL3117P/00

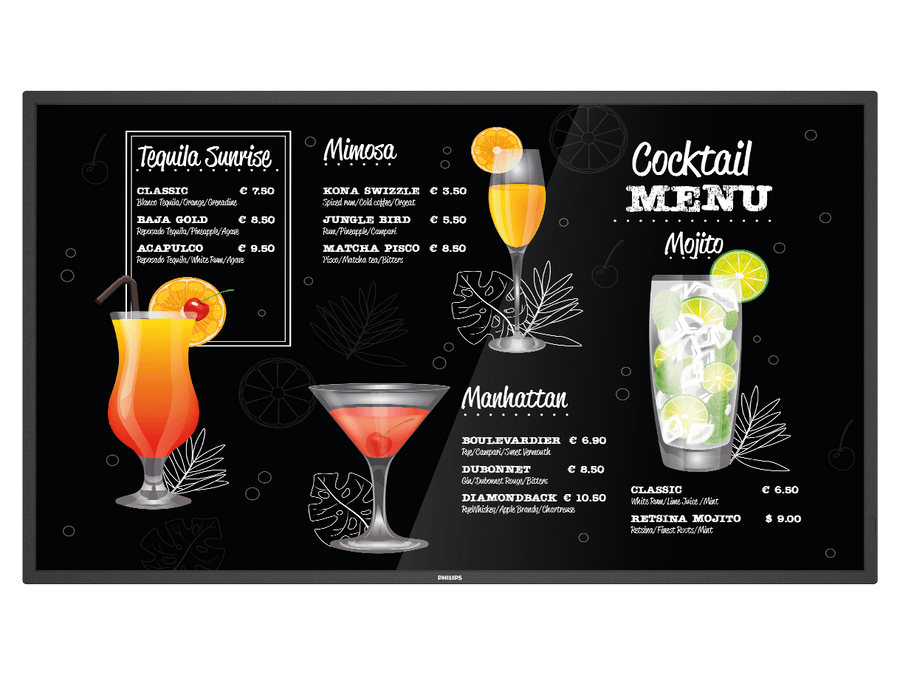

Philips Signage 3000 P-Line 65-inch 4K UHD Digital Signage Display – 65BDL3117P/00
The Philips 65BDL3117P/00 is a 65-inch 4K UHD P-Line digital signage display built for 24/7 use in demanding spaces such as retail, transportation and food and drink venues. It delivers 750 nits brightness, supports tiled video walls up to 15 x 15, and offers RS232C and RJ45 control. Procure.ae supplies it across the UAE.
The 65BDL3117P/00 has a 64.5-inch (164 cm) ADS panel at 3840 x 2160 resolution, with 750 cd/m² brightness, 1,200:1 typical contrast and 500,000:1 dynamic contrast. Response time is 8 ms typical, with 178-degree horizontal and vertical viewing angles. Inputs cover three HDMI 2.0 ports, a DisplayPort 1.2 input, DVI-I and USB 2.0, with DisplayPort 1.2 and HDMI 2.0 video outputs. Two 10 W RMS speakers are built in. Pixel Shift and Low Bright are screen-saving functions, and Smart Power is an energy-saving function.
The 65BDL3117P/00 fits environments that run long hours and need robust, always-on displays, such as retail floors, transportation hubs and food and drink outlets. It includes an ambient light sensor, a thermal sensor and a Micro SD slot for local media. Carrying handles and Smart Insert ease installation, and three wire clampers are included. RS232C, RJ45 and IR in and out provide control, and the wall mount is 400 x 400 mm with M8 fixings.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
750 nits
Type
Digital Signage Display
- High brightness
- 24/7 robust build
- Tiled video wall
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
High brightness
750 cd/m² rating for demanding environments with long operating hours.
02
24/7 robust build
Landscape and portrait placement, both rated for 24/7 operation.
03
Tiled video wall
Tiled matrix configurations of up to 15 x 15 displays.
04
Ambient and thermal sensing
Ambient light sensor and thermal sensor built in.
05
Multiple inputs
HDMI 2.0 x 3, DisplayPort 1.2, DVI-I and USB 2.0 inputs.
06
Control options
RS232C, RJ45 and IR in and out, with lockable keyboard control.
07
Pixel Shift
Screen-saving function with a Low Bright option.
08
Installation aids
Carrying handles and Smart Insert for ease of installation.
Specifications
24 specificationsGeneral
Key Features24/7 operation, Smart Power, Pixel Shift, Low Bright screen saving, Ambient light sensor, Tiled matrix up to 15 x 15, carrying handles, Smart Insert
Model65BDL3117P/00
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness750 nits
Contrast Ratio1,200:1
OrientationLandscape / Portrait
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Viewing Angle178° (horizontal) / 178° (vertical)
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.2 × 1, HDMI 2.0 × 3, DVI-I × 1, USB 2.0 × 1, RS232C in/out, RJ45, IR in/out, 3.5 mm audio in/out, Micro SD × 1
Power
Power Consumption155 W (typical), 330 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight27.8 kg
Compliance
CertificationsCE, FCC Class A, CB, BSMI, EAC, VCCI, ENERGY STAR 8.0, ETL
Warranty3 years
Downloads
Manufacturer documents for the Philips Signage 3000 P-Line 65-inch 4K UHD Digital Signage Display – 65BDL3117P/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 65BDL3117P/00 rated for 24/7 operation?
Yes. Landscape and portrait placement are both listed for 24/7 operation. The operating temperature range is 0 to 40 °C, and operating humidity is 20 to 80% RH without condensation.
Does the 65BDL3117P/00 have a built-in media player?
The manufacturer's specifications do not state an internal operating system or media player. It has a Micro SD slot for local media, so confirm the playback method with Procure.ae before ordering.
What control options does the 65BDL3117P/00 support?
It supports RS232C in and out via a 2.5 mm jack, RJ45 network control, and IR in and out via a 3.5 mm jack. The keyboard controls can be set to hidden or lockable, and the remote control signal can be locked.
Can the 65BDL3117P/00 be tiled into a video wall?
Yes. The manufacturer lists tiled matrix configurations of up to 15 x 15 displays. The bezel width is 14.90 mm (even bezel). Plan the matrix size and cable routing before installation.
What mounting and weight should I plan for?
The display uses a 400 x 400 mm wall mount with M8 fixings and weighs 27.8 kg. Plan for a wall or structure rated for that load, and use the included wire clampers to manage cabling.
