HikvisionInteractive Flat PanelsSKU DS-D5B86RB/EP

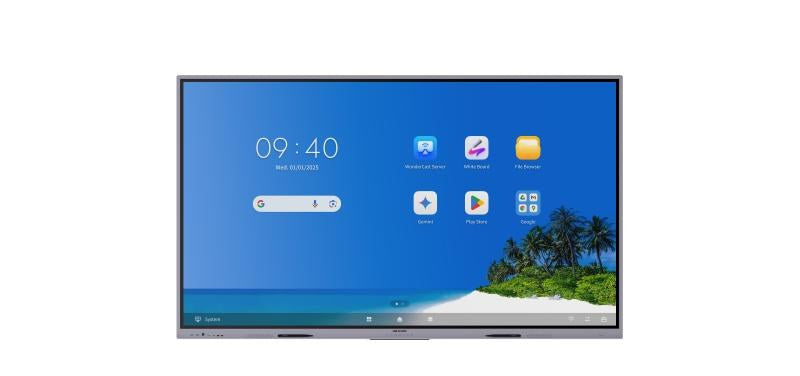

Hikvision Performance Series 86-inch 4K Interactive Flat Panel – DS-D5B86RB/EP
The Hikvision DS-D5B86RB/EP is an 86-inch 4K interactive flat panel from the WonderHub Performance Series, with 50-point touch, built-in Android 16 (EDLA certified) and 8 GB of RAM. It has a 450 nits IPS display and Wi-Fi 6. Procure.ae, an authorised Hikvision reseller in Dubai, supplies it across the UAE.
The DS-D5B86RB/EP (also listed as DS-D5B86RB/EP(EDLA)) has an 86-inch IPS panel with DLED backlight, 3840 x 2160 resolution at 60 Hz, 450 nits typical brightness and 1200:1 static contrast (15,000:1 dynamic). Colour depth is 10-bit (8-bit + FRC) with 72% NTSC gamut. The zero-lamination glass is anti-glare, anti-fingerprint and rated 9H for pencil hardness. Touch supports up to 50 points with a response time of 2 ms or less and a precision of ±0.5 mm.
Android 16 runs on an eight-core processor (four Cortex-A72 at 2.2 GHz and four Cortex-A53 at 1.8 GHz) with 8 GB RAM plus up to 8 GB virtual RAM and 128 GB of storage. An optional OPS module (195 x 30 x 180 mm) adds a Windows system. Built-in tools include a whiteboard, WonderCast screen casting for up to 9 devices, and AI Assistant, AI Identify and AI Notes. A built-in network switch chip removes the need for an external switch.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Type
Interactive Flat Panel
- Android 16 system
- 4K UHD IPS display
- 50-point touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 16 system
Built-in Android 16, EDLA certified, with 8 GB RAM plus up to 8 GB virtual RAM and 128 GB of storage.
02
4K UHD IPS display
3840 x 2160 at 60 Hz on an 86-inch IPS panel with 450 nits brightness and a 178 degree viewing angle.
03
50-point touch
Touch response of 2 ms or less, ±0.5 mm precision and a 32768 x 32768 touch resolution.
04
Anti-glare glass
Zero-lamination 9H glass with anti-glare and anti-fingerprint treatment.
05
Built-in collaboration tools
Whiteboard with handwriting recognition and WonderCast casting for up to 9 devices at once.
06
Wireless and wired links
Wi-Fi 6, Bluetooth 5.4, dual Gigabit LAN, three HDMI 2.1 inputs and two USB-C ports with 65 W charging.
07
Dual-system option
An optional OPS module adds Windows alongside Android for video conferencing software.
08
Classroom-ready controls
Front multi-button design and 2 × 20 W + 25 W built-in loudspeakers.
Specifications
53 specificationsGeneral
Key Features50-point touch, Android 16 (EDLA), 4K UHD IPS, 8 GB RAM, Wi-Fi 6, Bluetooth 5.4, optional OPS Windows module, built-in whiteboard
ModelDS-D5B86RB/EP
TypeInteractive Flat Panel
What's in the BoxWall mount bracket, touch pen, 3 m touch USB cable, 3.5 m HDMI 2.0 cable, power cable, remote control, cleaning cloth, user manual
Display
Aspect Ratio16:9
BacklightDLED
Brightness450 nits
Color Depth10-bit (8-bit + FRC)
Color Gamut72% NTSC
Contrast Ratio1,200:1 (static); 15,000:1 (dynamic)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size86 inch
Touch Accuracy± 0.5 mm
Touch Points50-point multi-touch
Touch Resolution32768 x 32768
Touch Response Time≤ 2 ms
Viewing Angle178° (H) / 178° (V)
Performance
FunctionsWhiteboard with handwriting recognition, WonderCast casting (up to 9 devices), AI Assistant, AI Identify, AI Notes, NFC reader
GraphicsMali-G52 MC3
Operating SystemAndroid 16
ProcessorQuad-core Cortex-A72 (2.2 GHz) + quad-core Cortex-A53 (1.8 GHz)
RAM8 GB (plus up to 8 GB virtual RAM)
Storage128 GB
Audio
Audio In3.5 mm audio × 1
Audio Out3.5 mm audio × 1; S/PDIF × 1
Speaker Output2 × 20 W + 25 W
Connectivity
BluetoothBluetooth 5.4 (BLE)
EthernetGigabit LAN × 2
HDMI InputsHDMI 2.1 × 3 (1 front, 2 rear)
HDMI OutputsHDMI 2.1 × 1
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOptional OPS module (195 x 30 x 180 mm) for Windows
Serial PortRS-232 × 1
Touch USB PortsTouch USB 3.0 × 1 (front); Touch USB 2.0 × 2 (rear)
USB PortsUSB 3.0 × 3 (2 front, 1 rear); USB 2.0 × 2 (rear)
USB-C PortsUSB-C × 2 (front: USB 3.0, 65 W charging, DP In 1.4; rear: USB 2.0, 65 W charging, DP In 1.4)
VGA InputVGA × 1
Wi-FiWi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax), 2.4 GHz and 5 GHz, 2 x 2 MIMO
Power
Power Consumption< 210 W (average)
Standby Power≤ 0.5 W
Physical
Dimensions1957 x 1156.5 x 77.7 mm (without wall attachment)
Duty Cycle16 hours/day, 7 days/week
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions2157 x 1345 x 223 mm
Shipping Weight72.8 kg
Surface Protection9H anti-glare, anti-fingerprint glass (zero lamination)
VESA Mount800 x 600 mm (4 × M8)
Weight52.7 kg (net)
Compliance
CertificationsEDLA certified (Android)
Downloads
Manufacturer documents for the Hikvision Performance Series 86-inch 4K Interactive Flat Panel – DS-D5B86RB/EP — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many touch points does the Hikvision DS-D5B86RB/EP support?
It supports up to 50-point multi-touch with a touch response time of 2 ms or less. Touch precision is ±0.5 mm over at least 90% of the touching area, and the touch resolution is 32768 x 32768. A touch writing pen is included in the box.
Which operating system does the DS-D5B86RB/EP run?
It runs Android 16, EDLA certified, on a quad-core Cortex-A72 plus quad-core Cortex-A53 processor with 8 GB RAM and 128 GB storage. An optional OPS module (195 x 30 x 180 mm) adds a Windows system, which Hikvision recommends for running video conferencing software.
What ports and connectivity does the panel offer?
It has three HDMI 2.1 inputs (one front, two rear), VGA, one HDMI output, three USB 3.0 and two USB 2.0 ports, two USB-C ports with 65 W charging, RS-232 and dual Gigabit LAN. Wireless support is Wi-Fi 6 and Bluetooth 5.4.
Can I cast from several devices at once?
Yes. The built-in WonderCast software supports screen casting for up to 9 devices simultaneously. The panel also has a built-in whiteboard with handwriting and graphics recognition, plus AI Assistant, AI Identify and AI Notes; AI Notes includes 6,000 free minutes for a 1-year validity period.
How is the DS-D5B86RB/EP mounted and how heavy is it?
It has a VESA 800 x 600 mm pattern (4 × M8-25 mm) and a wall mount bracket is included. Net weight is 52.7 kg and dimensions are 1957 x 1156.5 x 77.7 mm without the wall attachment, so the wall or stand must be rated for this load.
Can I buy the Hikvision DS-D5B86RB/EP in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
