PhilipsDigital SignageSKU 55BDL3511Q/00

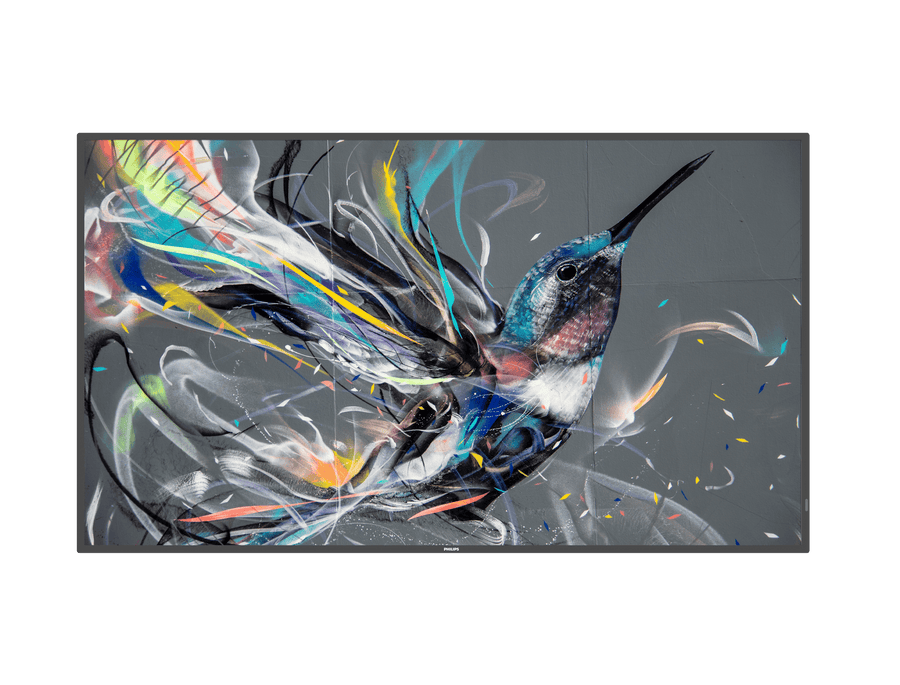

Philips Q-Line 55-inch 4K UHD Digital Signage Display – 55BDL3511Q/00
The Philips 55BDL3511Q/00 is a 55-inch 4K UHD digital signage display for lobbies, reception areas, retail floors and meeting rooms. It has a 3840 x 2160 IPS panel rated at 400 nits, a 16:9 aspect ratio and a 3-year warranty. Procure.ae supplies the Philips 55BDL3511Q/00 across the UAE.
The 55BDL3511Q/00 has a 3840 x 2160 IPS panel with 178-degree horizontal and vertical viewing angles, 400 nits brightness, a 1,300:1 typical contrast ratio and a 9 ms typical response time. It runs 4K at 60 Hz and has two 10 W RMS built-in speakers. Video inputs include one DVI-I port, two HDMI 2.0 ports and two USB 2.0 ports, with 3.5 mm audio input and output. Smart Power reduces energy use, with 140 W typical consumption and below 0.5 W standby.
The 55BDL3511Q/00 suits lobbies, reception areas, retail floors and meeting rooms where one screen or a tiled video wall is needed. It mounts in landscape or portrait on a 400 x 400 mm wall mount with M6 fixings. Network control runs over RJ45 and RS232C, and lockable remote and keyboard control help prevent tampering on public screens.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
- Ultra HD 4K panel
- Video wall tiling
- Built-in speakers
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra HD 4K panel
A 3840 x 2160 IPS panel with 400 nits brightness and 178-degree viewing angles.
02
Video wall tiling
Tiled matrix of up to 10 x 15 displays for larger video walls.
03
Built-in speakers
Two 10 W RMS speakers with 3.5 mm audio input and output.
04
Network control
RJ45 and RS232C ports, plus IR input and output for remote control.
05
Smart Power
Energy-saving operation with 140 W typical consumption and below 0.5 W standby.
06
Flexible mounting
Landscape or portrait placement on a 400 x 400 mm wall mount with M6 fixings.
07
Lockable controls
Remote control signal and keyboard control can be locked or hidden.
08
Multiple video inputs
One DVI-I port, two HDMI 2.0 ports and two USB 2.0 ports.
Specifications
27 specificationsGeneral
Key FeaturesTiled matrix up to 10 x 15, Smart Power, RS232C and RJ45 network control, lockable remote and keyboard control, landscape and portrait placement, 3.5 mm audio in/out
Model55BDL3511Q/00
TypeDigital Signage Display
What's in the BoxIR sensor cable (1.8 m), remote control with AAA batteries, RS232 daisy-chain cable, AC power cord, quick start guide, wire clampers
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even bezel)
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio1,300:1
OrientationLandscape and portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time9 ms
Screen Size55 inch
Viewing Angle178° horizontal and vertical
Audio
Speaker Output2 × 10 W RMS built-in speakers
Connectivity
Input Voltage100–240 V AC
PortsDVI-I × 1, HDMI 2.0 × 2, USB 2.0 × 2, RJ45, RS232C (in/out), IR (in/out), 3.5 mm audio in/out
Power
Power Consumption140 W (typical)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight16.6 kg
Compliance
CertificationsCE, FCC Class A, CB, BSMI, EPA, VCCI, CU, ETL, EMF, PSB
Warranty3 years
Downloads
Manufacturer documents for the Philips Q-Line 55-inch 4K UHD Digital Signage Display – 55BDL3511Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Philips 55BDL3511Q/00 support 4K resolution?
Yes. The 55BDL3511Q/00 has a 3840 x 2160 panel, with 4K optimum resolution at 60 Hz and a 16:9 aspect ratio. The IPS panel is rated for 178-degree viewing angles, so content stays readable from the side of a lobby or corridor.
Can the 55BDL3511Q/00 be mounted in portrait orientation?
Yes. The manufacturer lists both landscape and portrait placement, each rated 18/7 operation. Mount it on the 400 x 400 mm M6 wall pattern, and check that the wall bracket and the 16.6 kg weight are suited to the chosen position.
Can several 55BDL3511Q/00 displays be tiled into a video wall?
Yes. The manufacturer rates the tiled matrix at up to 10 x 15 displays. Each panel is controlled through its RS232C or RJ45 network port, and the lockable remote and keyboard controls help secure a multi-screen installation.
Does the display include built-in speakers?
Yes. It has two 10 W RMS built-in speakers. A 3.5 mm audio output lets you send sound to an external system, and a 3.5 mm audio input is also provided.
Which connections does the display have for video sources?
It has one DVI-I port, two HDMI 2.0 ports and two USB 2.0 ports for video and media inputs. Control connections include IR input and output, RJ45, and RS232C in and out.
Can I buy the 55BDL3511Q/00 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
