PhilipsDigital SignageSKU 43BDL3550Q/00

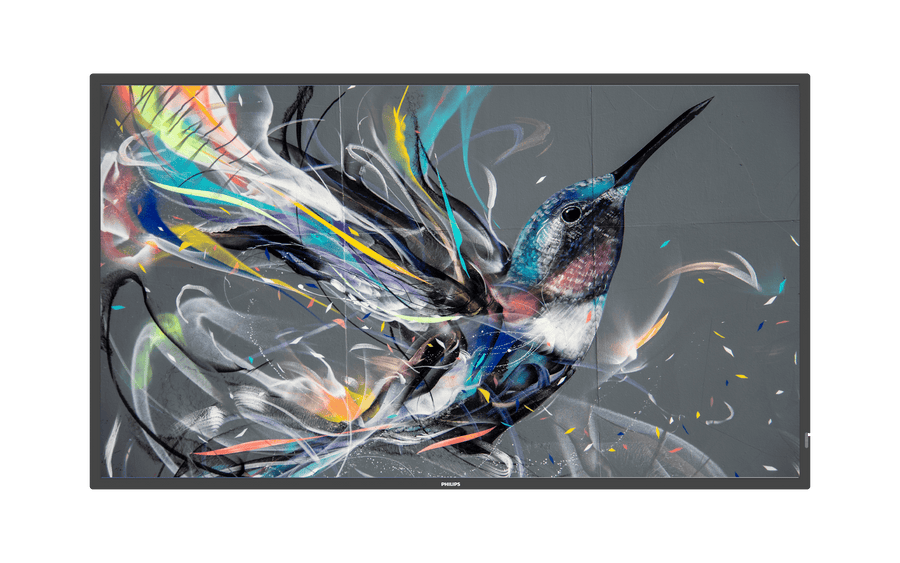

Philips Q-Line 43-inch Digital Signage Display – 43BDL3550Q/00
The Philips 43BDL3550Q/00 is a 43-inch 4K UHD digital signage display from the Signage 3000 Series Q-Line. It runs Android 8.0, offers 400 nits brightness and includes VGA, DVI-D and two HDMI 2.0 inputs. Procure.ae supplies the Philips 43BDL3550Q/00 in the UAE as an authorised reseller.
The 3840 x 2160 ADS panel runs at 60 Hz with 400 nits brightness, 1,200:1 typical contrast and 500,000:1 dynamic contrast. It has an 8 ms typical response time, 178-degree viewing angles and 1.07 billion display colours. The Android 8.0 platform uses a dual-core Cortex A53 at 1.1 GHz and a dual-core Cortex A73 at 1.15 GHz, with 2 GB of DDR3 RAM, 8 GB of storage and an ARM Mali G51 graphics chip. Two 10 W RMS speakers are built in. Typical consumption is 108 W, with 152 W maximum.
The 3550Q suits signage networks where analogue VGA sources are still in use, since it accepts VGA alongside DVI-D and HDMI 2.0. It has RS232C, RJ45 and IR control and supports tiling of up to 15 x 15 displays, with 200 x 200 mm mounting using M6 screws. Compared with the 43BDL3650Q/00, it runs Android 8.0 rather than Android 10, has 8 GB of storage rather than 16 GB, and does not list a Micro SD slot.
Screen Size
42.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
- Android 8.0 platform
- 4K UHD panel
- VGA and digital inputs
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Android 8.0 platform
Runs Android 8.0 as its operating system.
02
4K UHD panel
3840 x 2160 resolution at 60 Hz on a 42.5-inch ADS screen.
03
VGA and digital inputs
VGA, DVI-D and two HDMI 2.0 inputs.
04
Dual-core processors
Dual-core Cortex A53 at 1.1 GHz and dual-core Cortex A73 at 1.15 GHz.
05
Video wall tiling
Matrix of up to 15 x 15 displays.
06
Network and IR control
RJ45, RS232C and IR in and out, with a lockable remote control signal.
07
Built-in speakers
2 x 10 W RMS audio output.
08
Smart Power
Energy-saving function with 108 W typical consumption.
Specifications
36 specificationsGeneral
Key FeaturesAndroid 8.0, 4K UHD, VGA and DVI-D inputs, tiling up to 15 x 15, RS232 and RJ45 control, Smart Power, built-in speakers
Model43BDL3550Q/00
TypeDigital Signage Display
What's in the BoxAC power cord, RS232 cable, remote control with batteries, quick start guide, IR sensor cable (1.8 m), RS232 daisy-chain cable, USB cover and screw (x 2), Philips logo
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even)
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1
OrientationLandscape and portrait (18/7)
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size42.5 inch
Viewing Angle178° horizontal, 178° vertical
Performance
GraphicsARM Mali G51
Operating SystemAndroid 8.0
ProcessorDual-core Cortex A53 1.1 GHz + dual-core Cortex A73 1.15 GHz
RAM2 GB DDR3
Storage8 GB
Storage Conditions-20 to 60 °C, 5% to 95% RH
Audio
Dynamic Range500,000:1
Speaker Output2 x 10 W RMS
Connectivity
ConnectivityRJ45 LAN, IR in and out (3.5 mm jack)
Input Voltage100–240 V AC, 50/60 Hz
PortsVGA (analogue D-Sub) In × 1, DVI-D In × 1, HDMI 2.0 In × 2, USB 2.0 × 2, 3.5 mm audio In/Out
Serial PortRS232C in and out (2.5 mm jack)
Power
Power Consumption108 W (typical), 152 W (max)
Standby PowerLess than 0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount200 x 200 mm (M6)
Weight11.29 kg
Compliance
CertificationsCE, CB, BSMI, CU, EPA, ETL, FCC Class A, VCCI, J-Moss
Warranty3 years
Downloads
Manufacturer documents for the Philips Q-Line 43-inch Digital Signage Display – 43BDL3550Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the 43BDL3550Q/00 run Android?
Yes. It runs Android 8.0 on a dual-core Cortex A53 and dual-core Cortex A73 processor arrangement, with 2 GB of DDR3 RAM and 8 GB of storage. The manufacturer's specifications do not list a Micro SD slot for this model.
Does the 43BDL3550Q/00 have a VGA input?
Yes. It has one VGA (analogue D-Sub) input alongside one DVI-D input, two HDMI 2.0 inputs and two USB 2.0 ports. It also has 3.5 mm audio input and output. Use an HDMI input for digital sources and the VGA input for analogue sources.
Can the 43BDL3550Q/00 be wall-mounted?
Yes. The mounting pattern is 200 x 200 mm with M6 screws, and the display weighs 11.29 kg. It is rated for 18/7 operation in landscape or portrait. Use a bracket rated for that load and confirm the hole spacing before installation.
Can several 43BDL3550Q/00 displays be tiled?
Yes. The display supports tiling of up to 15 x 15 units. An RS232 daisy-chain cable is included, and the bezel measures 13.9 mm and is even on all sides. Confirm the control method your video wall controller uses before ordering.
How is the 43BDL3550Q/00 controlled remotely?
It supports RJ45 network control, RS232C in and out via 2.5 mm jacks, and IR in and out via 3.5 mm jacks. The keyboard can be hidden or locked, and the remote control signal can be locked. A remote control with batteries and an RS232 cable are included.
