PhilipsDigital SignageSKU 43BDL3510Q/00

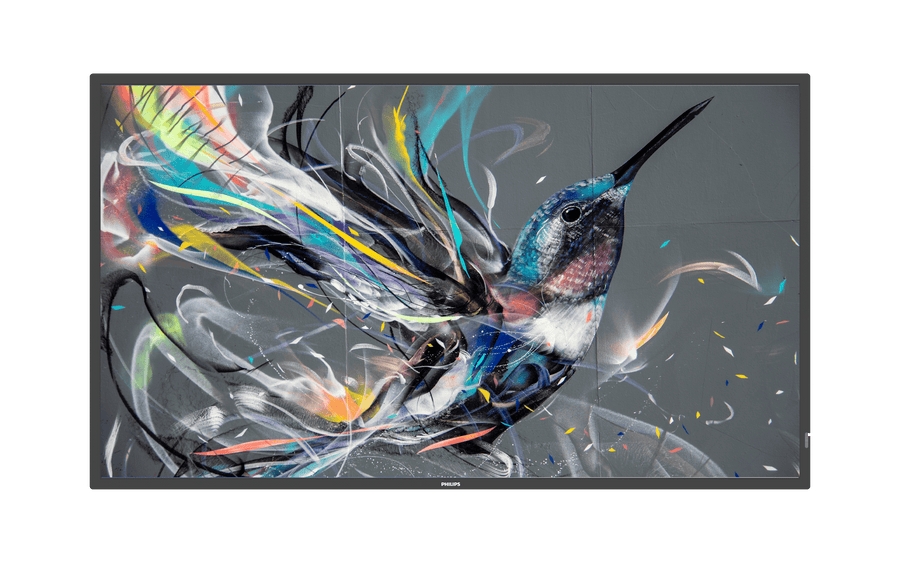

Philips Q-Line 43-inch Digital Signage Display – 43BDL3510Q/00
The Philips 43BDL3510Q/00 is a 43-inch 4K UHD digital signage display from the Signage 3000 Series Q-Line. It offers 400 nits brightness, 1,300:1 typical contrast and video wall tiling of up to 15 x 15 units, with RS232C, RJ45 and IR control. Procure.ae supplies the Philips 43BDL3510Q/00 in the UAE as an authorised reseller.
The 3840 x 2160 ADS panel runs at 60 Hz with a 16:9 aspect ratio, 400 nits brightness and 178-degree viewing angles. Typical contrast is 1,300:1 and dynamic contrast is 500,000:1, with 1.07 billion display colours and an 8 ms typical response time. Two 10 W RMS speakers are built in, with 3.5 mm audio input and output. Typical consumption is 90 W, with 150 W maximum and standby below 0.5 W.
The Q-Line 43-inch model suits corporate reception, retail and information screens that need a single 4K display with straightforward control. It has DVI-I, two HDMI 2.0 inputs and two USB 2.0 ports, plus RS232C, RJ45 and IR control. The 200 x 200 mm mounting pattern uses M6 screws. Compared with the 43BDL3511Q/00, it has 1,300:1 typical contrast against 1,200:1 and ADS panel technology rather than IPS. The manufacturer's specifications do not list an operating system for this model.
Screen Size
42.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
- 4K UHD panel
- 1,300:1 typical contrast
- Video wall tiling
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 resolution at 60 Hz on a 42.5-inch screen.
02
1,300:1 typical contrast
Dynamic contrast ratio of 500,000:1 is also listed.
03
Video wall tiling
Matrix of up to 15 x 15 displays.
04
Network and serial control
RJ45 and RS232C in and out, with IR in and out.
05
Lockable controls
Keyboard can be hidden or locked, and the remote control signal can be locked.
06
Built-in speakers
2 x 10 W RMS with 3.5 mm audio input and output.
07
Smart Power
Energy-saving function with 90 W typical consumption.
08
Wall mount pattern
200 x 200 mm mounting with M6 screws.
Specifications
31 specificationsGeneral
Key Features4K UHD, 1,300:1 typical contrast, tiling up to 15 x 15, RS232 and RJ45 control, Smart Power, built-in speakers, lockable keyboard
Model43BDL3510Q/00
TypeDigital Signage Display
What's in the BoxIR sensor cable (1.8 m), RS232 daisy-chain cable, RS232 cable, AC power cord, remote control with batteries, USB cover and screw (x 2), quick start guide, Philips logo
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even)
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio1,300:1
OrientationLandscape and portrait
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size42.5 inch
Viewing Angle178° horizontal, 178° vertical
Performance
Storage Conditions-20 to 60 °C, 5% to 95% RH
Audio
Dynamic Range500,000:1
Speaker Output2 x 10 W RMS
Connectivity
ConnectivityRJ45 LAN, IR in and out (3.5 mm jack)
Input Voltage100–240 V AC, 50/60 Hz
PortsDVI-I In × 1, HDMI 2.0 In × 2, USB 2.0 × 2, 3.5 mm audio In/Out
Serial PortRS232C in and out (2.5 mm jack)
Power
Power Consumption90 W (typical), 150 W (max)
Standby PowerLess than 0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount200 x 200 mm (M6)
Weight11.3 kg
Compliance
CertificationsCE, CB, BSMI, CU, EPA, ETL, FCC Class A, VCCI
Warranty3 years
Downloads
Manufacturer documents for the Philips Q-Line 43-inch Digital Signage Display – 43BDL3510Q/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 43BDL3510Q/00 a 4K display?
Yes. The panel resolution is 3840 x 2160 at 60 Hz, which is 4K UHD. It has a 16:9 aspect ratio and a 42.5-inch diagonal of 108 cm. Brightness is 400 nits, and the typical response time is 8 ms.
Does the 43BDL3510Q/00 run its own operating system?
The manufacturer's specifications do not list an operating system, processor or internal storage for the 43BDL3510Q/00, so confirm the playback setup with Procure.ae before ordering. The display accepts DVI-I and HDMI 2.0 inputs and has two USB 2.0 ports.
Can the 43BDL3510Q/00 be wall-mounted?
Yes. The rear mounting pattern is 200 x 200 mm with M6 screws. The display weighs 11.3 kg and is rated for landscape or portrait placement. Use a bracket rated for that weight and confirm the mounting holes match the 200 x 200 mm pattern before installation.
Can several 43BDL3510Q/00 displays be tiled into a video wall?
Yes. Tiling supports up to 15 x 15 units, with 13.9 mm even bezels. An RS232 daisy-chain cable is included, and the display can also be controlled over RJ45 network connections. Check that your video wall controller accepts this control method before ordering.
How is the 43BDL3510Q/00 controlled remotely?
It is controlled through RS232C in and out via 2.5 mm jacks, RJ45 network control, or IR in and out via 3.5 mm jacks. The keyboard can be hidden or locked, and the remote control signal can be locked too. A remote control with batteries is included.
