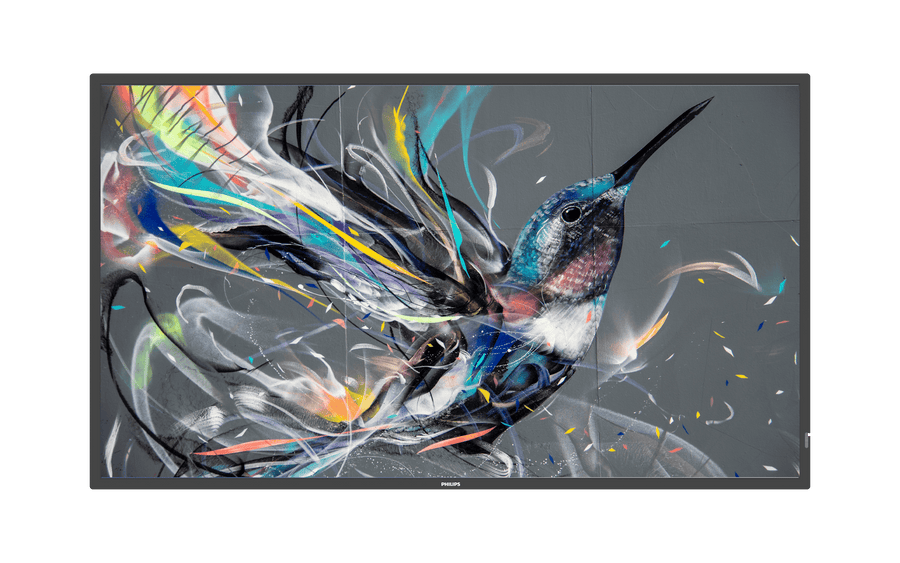

Philips Q-Line 43-inch Digital Signage Display – 43BDL3510Q/00

The Philips 43BDL3510Q/00 is a 43-inch 4K UHD digital signage display from the Signage 3000 Series Q-Line. It offers 400 nits brightness, 1,300:1 typical contrast and video wall tiling of up to 15 x 15 units, with RS232C, RJ45 and IR control. Procure.ae supplies the Philips 43BDL3510Q/00 in the UAE as an authorised reseller.

The 3840 x 2160 ADS panel runs at 60 Hz with a 16:9 aspect ratio, 400 nits brightness and 178-degree viewing angles. Typical contrast is 1,300:1 and dynamic contrast is 500,000:1, with 1.07 billion display colours and an 8 ms typical response time. Two 10 W RMS speakers are built in, with 3.5 mm audio input and output. Typical consumption is 90 W, with 150 W maximum and standby below 0.5 W.

The Q-Line 43-inch model suits corporate reception, retail and information screens that need a single 4K display with straightforward control. It has DVI-I, two HDMI 2.0 inputs and two USB 2.0 ports, plus RS232C, RJ45 and IR control. The 200 x 200 mm mounting pattern uses M6 screws. Compared with the 43BDL3511Q/00, it has 1,300:1 typical contrast against 1,200:1 and ADS panel technology rather than IPS. The manufacturer's specifications do not list an operating system for this model.

Screen Size

42.5 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

400 nits

Type

Digital Signage Display

Weight

11.3 kg

Key features

4K UHD panel

3840 x 2160 resolution at 60 Hz on a 42.5-inch screen.

1,300:1 typical contrast

Dynamic contrast ratio of 500,000:1 is also listed.

Video wall tiling

Matrix of up to 15 x 15 displays.

Network and serial control

RJ45 and RS232C in and out, with IR in and out.

Lockable controls

Keyboard can be hidden or locked, and the remote control signal can be locked.

Built-in speakers

2 x 10 W RMS with 3.5 mm audio input and output.

Smart Power

Energy-saving function with 90 W typical consumption.

Wall mount pattern

200 x 200 mm mounting with M6 screws.

Specifications

General
Key Features	4K UHD, 1,300:1 typical contrast, tiling up to 15 x 15, RS232 and RJ45 control, Smart Power, built-in speakers, lockable keyboard
Model	43BDL3510Q/00
Type	Digital Signage Display
What's in the Box	IR sensor cable (1.8 m), RS232 daisy-chain cable, RS232 cable, AC power cord, remote control with batteries, USB cover and screw (x 2), quick start guide, Philips logo

Display
Aspect Ratio	16:9
Bezel Size	13.9 mm (even)
Brightness	400 nits
Color Depth	1.07 billion colours
Contrast Ratio	1,300:1
Orientation	Landscape and portrait
Panel Technology	ADS
Refresh Rate	60 Hz
Resolution	3840 x 2160 (4K UHD)
Response Time	8 ms
Screen Size	42.5 inch
Viewing Angle	178° horizontal, 178° vertical

Performance
Storage Conditions	-20 to 60 °C, 5% to 95% RH

Audio
Dynamic Range	500,000:1
Speaker Output	2 x 10 W RMS

Connectivity
Connectivity	RJ45 LAN, IR in and out (3.5 mm jack)
Input Voltage	100–240 V AC, 50/60 Hz
Ports	DVI-I In × 1, HDMI 2.0 In × 2, USB 2.0 × 2, 3.5 mm audio In/Out
Serial Port	RS232C in and out (2.5 mm jack)

Power
Power Consumption	90 W (typical), 150 W (max)
Standby Power	Less than 0.5 W

Physical
Operating Humidity	20% to 80% RH
Operating Temperature	0 to 40 °C
VESA Mount	200 x 200 mm (M6)
Weight	11.3 kg

Compliance
Certifications	CE, CB, BSMI, CU, EPA, ETL, FCC Class A, VCCI
Warranty	3 years
