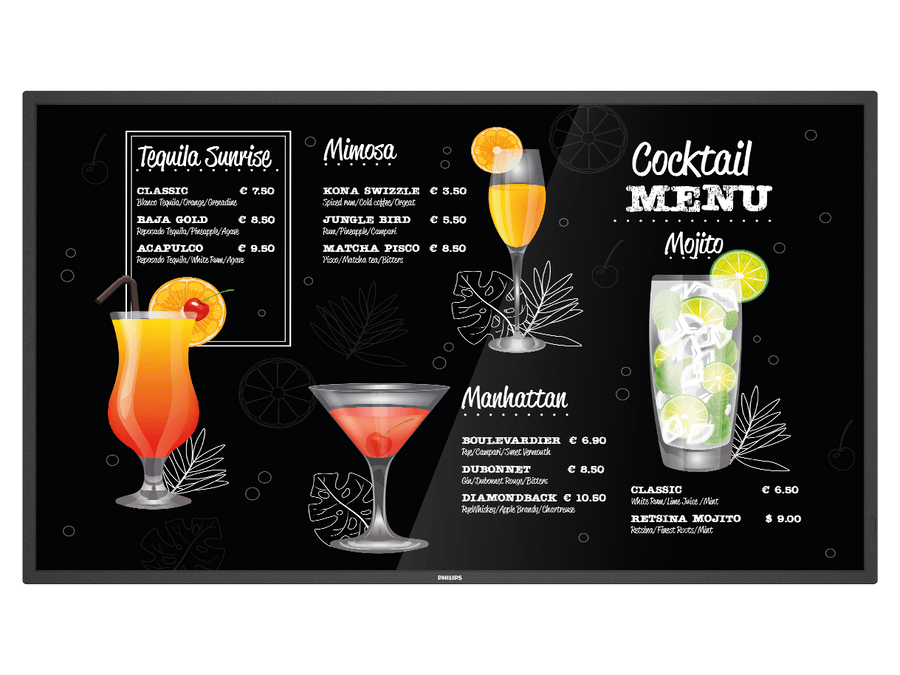

Philips P-Line 43-inch Digital Signage Display – 43BDL3117P/00
The Philips 43BDL3117P/00 is a 43-inch 4K UHD digital signage display from the P-Line of the Signage 3000 Series. It delivers 750 nits brightness, is rated for 24/7 operation in landscape or portrait, and includes an ambient light sensor. Procure.ae supplies the Philips 43BDL3117P/00 in the UAE as an authorised reseller.
The 3840 x 2160 ADS panel runs at 60 Hz with 750 nits brightness, 178-degree viewing angles, 1,200:1 typical contrast and 500,000:1 dynamic contrast. Response time is 8 ms typical, and the display shows 1.07 billion colours. Two 10 W RMS speakers are built in. The display supports tiling of up to 15 x 15 units and has carrying handles to ease installation. Typical consumption is 80 W, with 220 W maximum and standby below 0.5 W.
The manufacturer names retail, transportation, and food and drink as target settings. The display is controlled through RS232C, RJ45 and IR, and an RS232 daisy-chain cable is included for serial control. Ports include DisplayPort 1.2, three HDMI 2.0 inputs, a DVI-I input, a USB 2.0 port, a Micro SD slot and 3.5 mm audio in and out. Compared with the 43BDL3510Q/00 from the Q-Line, it has 750 nits instead of 400 nits, lists an ambient light sensor and has a higher maximum consumption of 220 W against 150 W.
Screen Size
42.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
750 nits
Type
Digital Signage Display
- 750 nits brightness
- 4K UHD resolution
- 24/7 placement
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
750 nits brightness
42.5-inch 4K panel rated at 750 nits for bright spaces.
02
4K UHD resolution
3840 x 2160 at 60 Hz with a 16:9 aspect ratio.
03
24/7 placement
Landscape and portrait operation rated for 24/7 use.
04
Ambient light sensor
Listed among the external control features with RS232C, RJ45 and IR.
05
Video wall tiling
Layouts of up to 225 displays in a 15 x 15 matrix.
06
Multiple video inputs
Three HDMI 2.0 inputs, one DisplayPort 1.2 and one DVI-I.
07
Carrying handles
Built-in handles that ease installation.
08
Built-in speakers
2 x 10 W RMS audio output.
Specifications
32 specificationsGeneral
Key Features4K UHD, 750 nits, 24/7 landscape or portrait, ambient light sensor, tiling up to 15 x 15, carrying handles, Smart Power, built-in speakers
Model43BDL3117P/00
TypeDigital Signage Display
What's in the BoxPower cables (x 3), remote control with AAA batteries, RS232 cable (3 m), RS232 daisy-chain cable, wire clampers (x 3), edge alignment kit (x 2), quick start guide, USB cover, Philips logo
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even)
Brightness750 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1
OrientationLandscape and portrait (24/7)
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size42.5 inch
Viewing Angle178° horizontal, 178° vertical
Performance
Storage Conditions-20 to 60 °C, 5% to 95% RH
Audio
Dynamic Range500,000:1
Speaker Output2 x 10 W RMS
Connectivity
ConnectivityRJ45 LAN, IR in and out (3.5 mm jack), ambient light sensor
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.2 In × 1, DVI-I In × 1, HDMI 2.0 In × 3, USB 2.0 × 1, DisplayPort 1.2 Out × 1, HDMI 2.0 Out × 1, 3.5 mm audio In/Out
SD Card SlotMicro SD (x 1)
Serial PortRS232C in and out (2.5 mm jack)
Power
Power Consumption80 W (typical), 220 W (max)
Standby PowerLess than 0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount200 x 200 mm (M6)
Weight13.94 kg
Compliance
CertificationsCE, FCC Class A, CB, BSMI, EAC, EMF, VCCI, PSB, ETL, EPA
Warranty3 years
Downloads
Manufacturer documents for the Philips P-Line 43-inch Digital Signage Display – 43BDL3117P/00 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 43BDL3117P/00 suitable for 24/7 operation?
Yes. The manufacturer lists landscape and portrait placement at 24/7. Smart Power energy saving and the Pixel Shift and Low Bright screen-saving functions are built in. The operating range is 0 to 40 °C and 20% to 80% RH, without condensation, and the warranty is 3 years.
How bright is the 43BDL3117P/00?
It is rated at 750 nits, against 400 nits on the 43-inch Q-Line models. The manufacturer's specifications do not state the anti-glare or direct-sunlight performance of the screen, so confirm the placement with Procure.ae before ordering for a window-facing location.
Can the 43BDL3117P/00 be wall-mounted?
Yes. The rear mounting pattern is 200 x 200 mm with M6 screws. The display weighs 13.94 kg, so use a bracket rated for that load. Carrying handles on the unit help with lifting and positioning during installation.
Can several 43BDL3117P/00 displays be joined into a video wall?
Yes. The display supports a tiled matrix of up to 15 x 15 units. Control runs over RS232C with a daisy-chain cable included, or through RJ45 network control. The bezel is 13.9 mm and even on all sides.
How is the 43BDL3117P/00 managed and locked down?
Through RS232C in and out, RJ45 network control and IR in and out. The keyboard can be hidden or locked, and an ambient light sensor is listed among the external control features. The box includes a remote control with AAA batteries and a 3 m RS232 cable.
